Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|

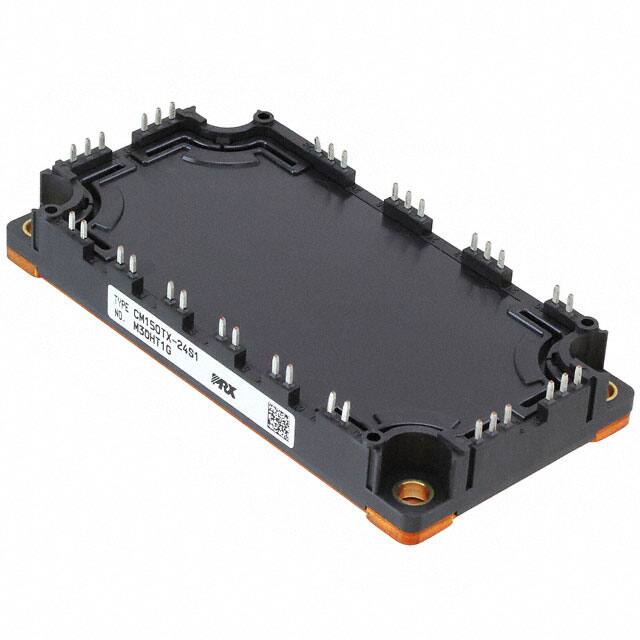

CM150TX-24S1IGBT MOD 1200V 150A 935W |
2848 | 0.00 |
Add To CartInquiry Now |
Tray | - | Discontinued at Mosen | - | Three Level Inverter | 1200 V | 150 A | 935 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
Datasheet |
|

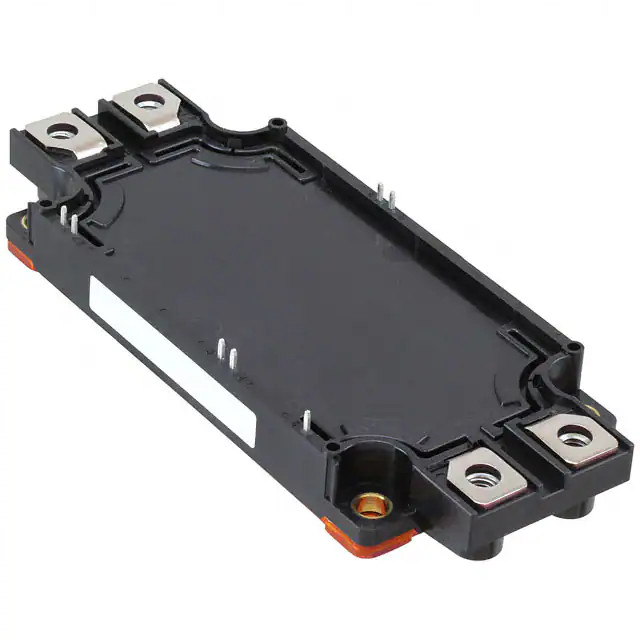

CM225DX-24S1IGBT MOD 1200V 225A 1250W |
2672 | 0.00 |
Add To CartInquiry Now |
Tray | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 225 A | 1250 W | 2.35V @ 15V, 225A | 1 mA | 20 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
Datasheet |
|
CM300DX-24S1IGBT MOD 1200V 300A 1850W |
2818 | 0.00 |
Add To CartInquiry Now |
Tray | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 300 A | 1850 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
Datasheet |
|
CM450DX-24S1IGBT MOD 1200V 450A 2775W |
2074 | 0.00 |
Add To CartInquiry Now |
Tray | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 450 A | 2775 W | 2.25V @ 15V, 450A | 1 mA | 45 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
Datasheet |
|
CM600DX-24S1IGBT MOD 1200V 600A 3330W |
3915 | 0.00 |
Add To CartInquiry Now |
Tray | - | Discontinued at Mosen | - | Half Bridge | 1200 V | 600 A | 3330 W | 2.45V @ 15V, 600A | 1 mA | 50 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
| |
|
MG06400D-BN1MMIGBT MODULE 600V 460A 1400W D3 |
3351 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 460 A | 1400 W | 2.45V @ 15V, 400A | 1 mA | 18 nF @ 25 V | Standard | No | - | Chassis Mount |
|
Datasheet |
|
MG06400D-BN4MMIGBT MODULE 600V 400A 1250W D3 |
3013 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 500 A | 1250 W | 1.45V @ 15V, 400A (Typ) | 1 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
MG12300D-BN3MMIGBT MODULE 1200V 450A 1450W D3 |
3013 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 450 A | 1450 W | 3.2V @ 15V, 300A | 2 mA | 22 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|
VS-CPV362M4FPBFIGBT MODULE 600V 8.8A 23W IMS-2 |
2025 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | - | 600 V | 8.8 A | 23 W | 1.7V @ 15V, 4.8A | 250 µA | 340 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole |
|
Datasheet |
|
VS-EMF050J60UIGBT MOD 600V 88A 338W EMIPAK2 |
3087 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Three Level Inverter | 600 V | 88 A | 338 W | 2.1V @ 15V, 50A | 100 µA | 9.5 nF @ 30 V | Standard | No | 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
VS-EMG050J60NIGBT MOD 600V 88A 338W EMIPAK2 |
3358 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 88 A | 338 W | 2.1V @ 15V, 50A | 100 µA | 9.5 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

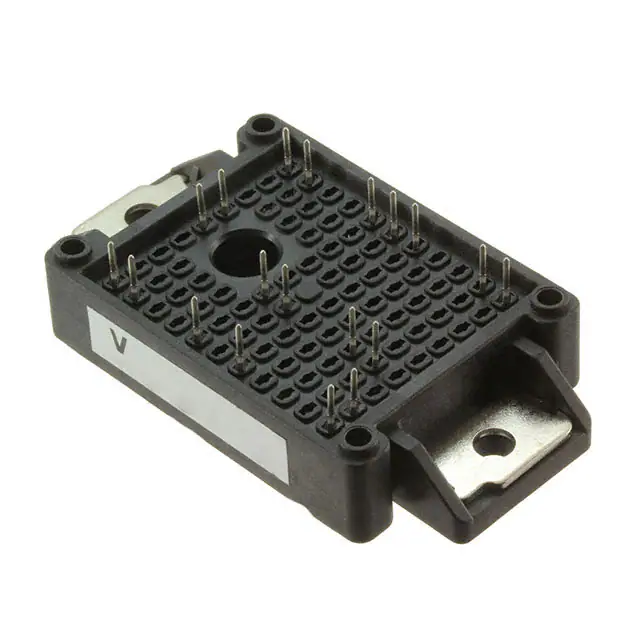

VS-ENQ030L120SIGBT MOD 1200V 61A EMIPAK-1B |
3532 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Active | Trench | Three Level Inverter | 1200 V | 61 A | 216 W | 2.52V @ 15V, 30A | 230 µA | 3.34 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

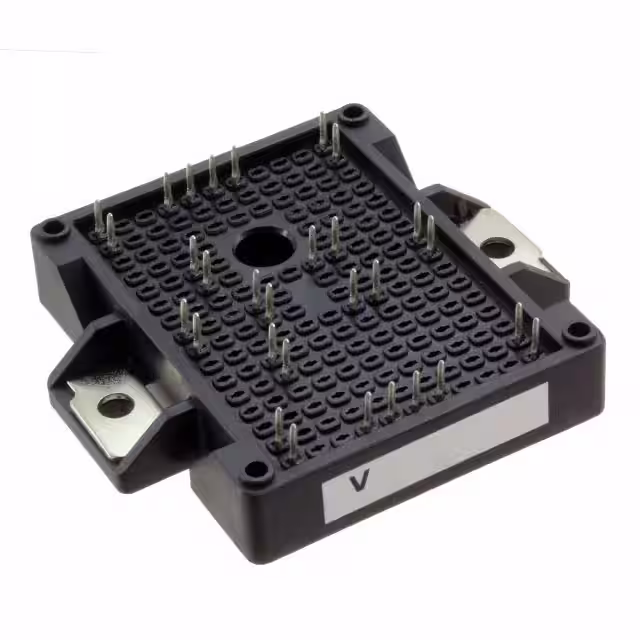

VS-ETL015Y120HIGBT MOD 1200V 22A 89W EMIPAK-2B |
3583 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Active | Trench | - | 1200 V | 22 A | 89 W | 3.03V @ 15V, 15A | 75 µA | 1.07 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
VS-GA100NA60UPIGBT MOD 600V 100A 250W SOT227 |
3319 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Single | 600 V | 100 A | 250 W | 2.1V @ 15V, 50A | 250 µA | 7.4 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
VS-GA100TS120UPBFIGBT MOD 1200V 182A INT-A-PAK |
3845 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Half Bridge | 1200 V | 182 A | 520 W | 3V @ 15V, 100A | 1 mA | 18.67 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
VS-GA100TS60SFPBFIGBT MOD 600V 220A INT-A-PAK |
3271 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | PT | Half Bridge | 600 V | 220 A | 780 W | 1.28V @ 15V, 100A | 1 mA | 16.25 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
| |
|
VS-GA200HS60S1PBFIGBT MOD 600V 480A INT-A-PAK |
2820 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 480 A | 830 W | 1.21V @ 15V, 200A | 1 mA | 32.5 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
VS-GA200SA60SPIGBT MODULE 600V 781W SOT227 |
2285 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Single | 600 V | - | 781 W | 1.3V @ 15V, 100A | 1 mA | 16.25 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
| |
|
VS-GA200SA60UPIGBT MOD 600V 200A 500W SOT227 |
2965 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Single | 600 V | 200 A | 500 W | 1.9V @ 15V, 100A | 1 mA | 16.5 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
| |
|
VS-GA200TH60SIGBT MOD 600V 260A INT-A-PAK |
3971 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 260 A | 1042 W | 1.9V @ 15V, 200A (Typ) | 5 µA | 13.1 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
