Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|
VS-GA250SA60SIGBT MOD 600V 400A 961W SOT227 |
2742 | 0.00 |
Add To CartInquiry Now |
Tube | - | Obsolete | - | Single | 600 V | 400 A | 961 W | 1.66V @ 15V, 200A | 1 mA | 16.25 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
| |
|

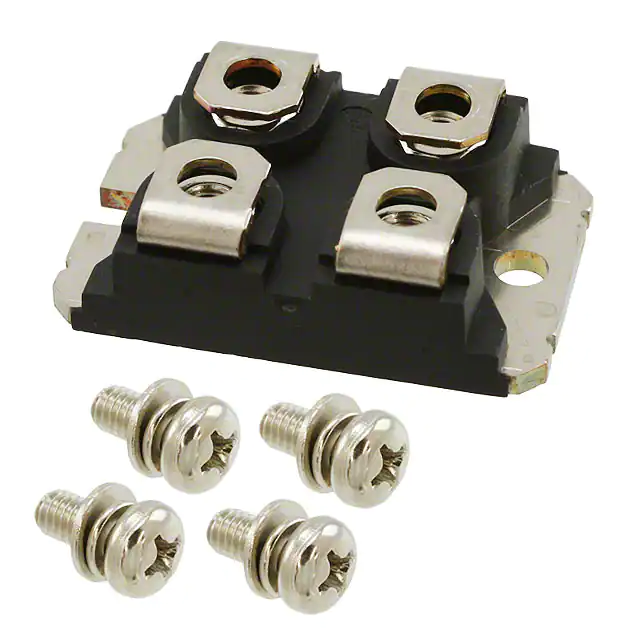

VS-GB90SA120UIGBT MOD 1200V 149A 862W SOT227 |
3362 | 0.00 |
Add To CartInquiry Now |
Tube | - | Obsolete | NPT | Single | 1200 V | 149 A | 862 W | 3.9V @ 15V, 75A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
VS-GB90DA60UIGBT MOD 600V 147A 625W SOT227 |
2584 | 0.00 |
Add To CartInquiry Now |
Tube | - | Obsolete | NPT | Single | 600 V | 147 A | 625 W | 2.8V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

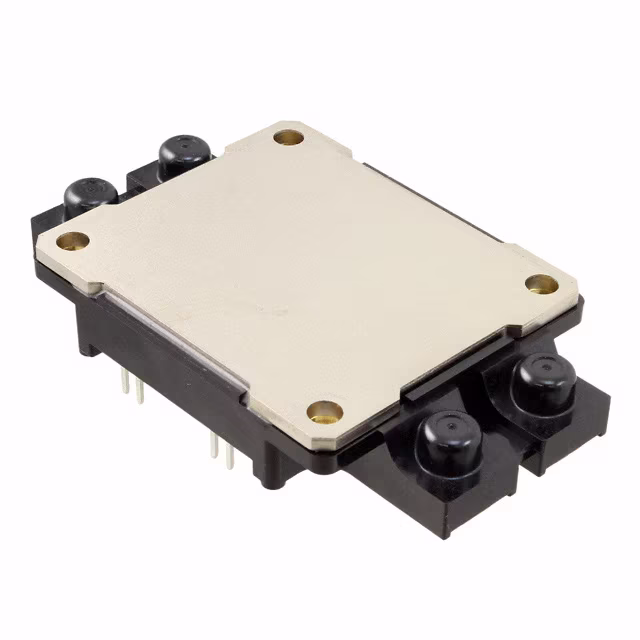

CM150EXS-24SIGBT MOD 1200V 150A 1150W |
2833 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Discontinued at Mosen | - | Single | 1200 V | 150 A | 1150 W | 2.25V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
Datasheet |
|
CM200EXS-24SIGBT MOD 1200V 200A 1500W |
2416 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Discontinued at Mosen | - | Single | 1200 V | 200 A | 1500 W | 2.15V @ 15V, 200A | 1 mA | 20 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
Datasheet |
|
CM300EXS-24SIGBT MOD 1200V 300A 2270W |
3581 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Discontinued at Mosen | - | Single | 1200 V | 300 A | 2270 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
|
Datasheet |
|
CM200EXS-34SAIGBT MOD 1700V 200A 2000W |
2658 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Discontinued at Mosen | - | Single | 1700 V | 200 A | 2000 W | 2.7V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - |
| |
|
VS-CPV362M4KPBFIGBT MODULE 600V 3PHASE IMS-2 |
2545 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | No | -40°C ~ 150°C (TJ) | Through Hole |
| |
|
VS-CPV362M4UPBFIGBT MODULE 600V 7.2A 23W IMS-2 |
2750 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | - | 600 V | 7.2 A | 23 W | 2.2V @ 15V, 3.9A | 250 µA | 530 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole |
| |
|
VS-CPV363M4FPBFIGBT MODULE 600V 3PHASE IMS-2 |
2116 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | No | -40°C ~ 150°C (TJ) | Through Hole |
| |
|
VS-CPV363M4KPBFIGBT MODULE 600V 11A 36W IMS-2 |
2329 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | - | 600 V | 11 A | 36 W | 2.1V @ 15V, 6A | 250 µA | 740 pF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole |
| |
|
VS-CPV363M4UPBFIGBT MODULE 600V 13A 36W IMS-2 |
3297 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | - | 600 V | 13 A | 36 W | 2.2V @ 15V, 6.8A | 250 µA | 1.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole |
| |
|
VS-CPV364M4FPBFIGBT MODULE 600V 27A 63W IMS-2 |
3500 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | - | 600 V | 27 A | 63 W | 1.5V @ 15V, 15A | 250 µA | 2.2 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole |
| |
|
VS-CPV364M4UPBFIGBT MODULE 600V 20A 63W IMS-2 |
3607 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | - | 600 V | 20 A | 63 W | 2.1V @ 15V, 10A | 250 µA | 2.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole |
| |
|
APTCV60HM70BT3GIGBT MODULE 600V 50A 250W SP3 |
3535 | 0.00 |
Add To CartInquiry Now |
Tray | - | Obsolete | Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTCV60HM70RT3GIGBT MODULE 600V 50A 250W SP3 |
2853 | 0.00 |
Add To CartInquiry Now |
Tray | - | Obsolete | Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Single Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
APTGF100A120T3AGIGBT MODULE 1200V 130A 780W SP3 |
3659 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT | Half Bridge | 1200 V | 130 A | 780 W | 3.7V @ 15V, 100A | 250 µA | 6.5 nF @ 25 V | Standard | Yes | - | Chassis Mount |
|
Datasheet |
|
APTGF150A60T3AGIGBT MODULE 600V 230A 833W SP3 |
3739 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT | Half Bridge | 600 V | 230 A | 833 W | 2.5V @ 15V, 200A | 350 µA | 9 nF @ 25 V | Standard | Yes | - | Chassis Mount |
|
Datasheet |
|
APTGF25H120T2GIGBT MODULE 1200V 40A 208W SP2 |
3715 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT | Full Bridge Inverter | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount |
|
Datasheet |
|
APTGF50DH120T3GIGBT MODULE 1200V 70A 312W SP3 |
3360 | 0.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | NPT | Asymmetrical Bridge | 1200 V | 70 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | - | Chassis Mount |
