Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
T75S5D112-48RELAY GEN PURPOSE SPDT 14A 48V |
3851 | 0.00 |
Add To CartInquiry Now |
Tube | T75 | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 14 A | 380VAC - Max | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 34.5 VDC | 4.8 VDC | 6 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
PCE-109D1H,000RELAY GEN PURPOSE SPDT 10A 9V |
2916 | 0.00 |
Add To CartInquiry Now |
Bulk | PCE, OEG | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 240VAC, 28VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
SRUDH-SS-109D1,000RELAY GEN PURPOSE SPDT 12A 9V |
3026 | 0.00 |
Add To CartInquiry Now |
Tube | SRUDH, OEG | Active | Through Hole | 9VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
OUDH-SH-112D,000RELAY GEN PURPOSE SPDT 10A 12V |
2381 | 0.00 |
Add To CartInquiry Now |
Bulk | OUDH, OEG | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 240VAC, 110VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
T75S1D112-12RELAY GEN PURPOSE SPST 14A 12V |
2827 | 0.00 |
Add To CartInquiry Now |
Tube | T75 | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 14 A | 380VAC - Max | 18.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.5 VDC | 1.2 VDC | 6 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
T75S1D112-05RELAY GEN PURPOSE SPST 14A 5V |
2992 | 0.00 |
Add To CartInquiry Now |
Bulk | T75 | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 14 A | 380VAC - Max | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.6 VDC | 0.5 VDC | 6 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
T73S1D15-12RELAY GEN PURPOSE SPST 10A 12V |
2480 | 0.00 |
Add To CartInquiry Now |
Tube | T73 | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 120VAC, 28VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 7.8 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
SRUDH-SS-112D1,000RELAY GEN PURPOSE SPDT 12A 12V |
3424 | 0.00 |
Add To CartInquiry Now |
Tube | SRUDH, OEG | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RTB14006FRELAY GEN PURPOSE SPDT 12A 6V |
3679 | 0.00 |
Add To CartInquiry Now |
Box | RT1 | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.2 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
Datasheet |
|

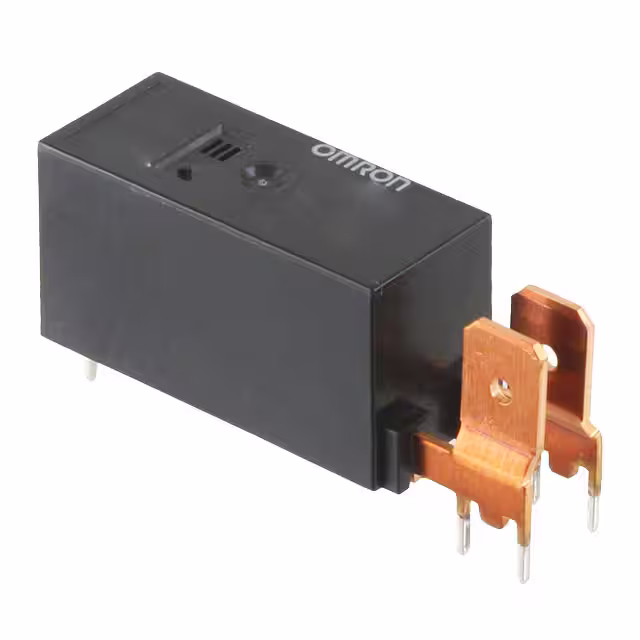

G2RL-1ATP5-E DC12RELAY GEN PURPOSE SPST 16A 12V |
2123 | 0.00 |
Add To CartInquiry Now |
Tray | G2RL-TP | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 33.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | Class B | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
Datasheet |
|
G2RL-1ATP5-E DC24RELAY GEN PURPOSE SPST 16A 24V |
3576 | 0.00 |
Add To CartInquiry Now |
Tray | G2RL-TP | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 16.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
Datasheet |
|
G2RL-1ATP7-E DC12RELAY GEN PURPOSE SPST 16A 12V |
3514 | 0.00 |
Add To CartInquiry Now |
Tray | G2RL-TP | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 33.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | Class B | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
Datasheet |
|
G2RL-1ATP7-E DC24RELAY GEN PURPOSE SPST 16A 24V |
2841 | 0.00 |
Add To CartInquiry Now |
Tray | G2RL-TP | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 16.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
Datasheet |
|
G5LA-14 DC5RELAY GEN PURPOSE SPDT 5A 5V |
3664 | 0.00 |
Add To CartInquiry Now |
Tray | G5LA | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 72 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
G5LA-14 DC12RELAY GEN PURPOSE SPDT 5A 12V |
3798 | 0.00 |
Add To CartInquiry Now |
Tray | G5LA | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
G5LA-14 DC24RELAY GEN PURPOSE SPDT 5A 24V |
3995 | 0.00 |
Add To CartInquiry Now |
Tray | G5LA | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
G5LA-14 DC48RELAY GEN PURPOSE SPDT 5A 48V |
2582 | 0.00 |
Add To CartInquiry Now |
Tray | G5LA | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 36 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datasheet |
|
FCA-325-3201LRELAY GEN PURPOSE 3PDT 25A 28V |
2927 | 0.00 |
Add To CartInquiry Now |
Bulk | Military, MIL-R-83536/32, FCA, CII | Active | Chassis Mount | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
|
Datasheet |
|
9-1617752-3RELAY GEN PURPOSE 3PDT 25A 28V |
2887 | 0.00 |
Add To CartInquiry Now |
Bulk | Military, MIL-R-83536/32, FCA, CII | Obsolete | Chassis Mount | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
FCA-325-3305LRELAY GEN PURPOSE 3PDT 25A 28V |
3656 | 0.00 |
Add To CartInquiry Now |
Bulk | Military, MIL-R-83536/33, FCA, CII | Obsolete | Chassis Mount | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
