Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
RM303615RELAY GEN PURPOSE 3PDT 10A 115V |
2862 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 115VAC | 3PDT (3 Form C) | 10 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Quick Connect - 0.187 (4.7mm) | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM502524RELAY GEN PURPOSE DPST 16A 24V |
2446 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Socketable | 24VAC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | - | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | - | - | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM502024RELAY GEN PURPOSE DPST 16A 24V |
3642 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Socketable | 24VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 70.8 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM705524RELAY GEN PURPOSE 3PDT 16A 24V |
2872 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 24VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Quick Connect - 0.250 (6.3mm) | - | - | 19.2 VAC | 7.2 VAC | - | - | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|

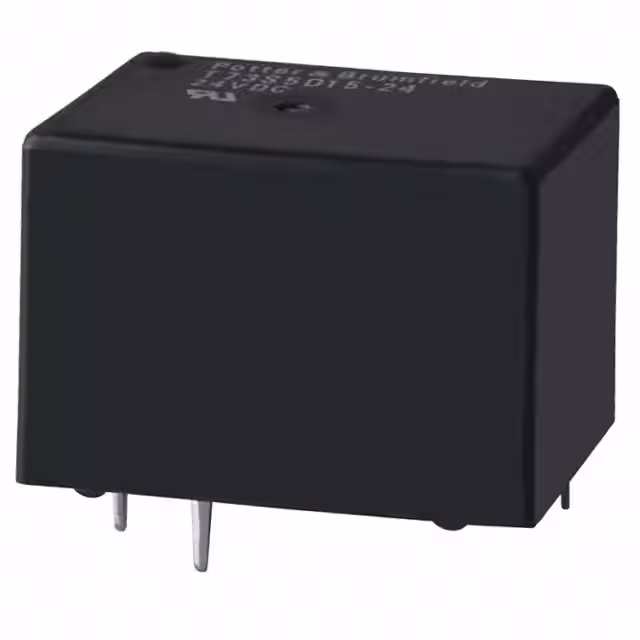

T73S5D15-18RELAY GEN PURPOSE SPDT 10A 18V |
3434 | 0.00 |
Add To CartInquiry Now |
Tube | T73 | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 120VAC, 28VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 11.7 VDC | 0.9 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
T7CS5D-09RELAY GEN PURPOSE SPDT 12A 9V |
2555 | 0.00 |
Add To CartInquiry Now |
Tube | T7C | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
T7CV1D-05RELAY GEN PURPOSE SPST 12A 5V |
2472 | 0.00 |
Add To CartInquiry Now |
Tube | T7C | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 12 A | 240VAC, 28VDC - Max | 72 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
T7CS1D-24RELAY GEN PURPOSE SPST 12A 24V |
2696 | 0.00 |
Add To CartInquiry Now |
Tube | T7C | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 240VAC, 28VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RMC05024RELAY GEN PURPOSE SPDT 30A 24V |
2064 | 0.00 |
Add To CartInquiry Now |
Bulk | RMC/D, SCHRACK | Obsolete | Chassis Mount | 24VDC | SPDT (DB/DM) (1 Form Z) | 30 A | 440VAC - Max | 50 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM838024RELAY GEN PURPOSE DPDT 25A 24V |
2234 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 50 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250 (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM732615RELAY GEN PURPOSE 3PDT 16A 115V |
2975 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 92 VAC | 34.5 VAC | - | - | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM707024RELAY GEN PURPOSE 3PDT 16A 24V |
2173 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Through Hole | 24VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 70.8 mA | Non Latching | Mechanical Indicator | PC Pin | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM703524RELAY GEN PURPOSE 3PDT 16A 24V |
3939 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 24VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | - | - | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM503024RELAY GEN PURPOSE DPST 16A 24V |
3176 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 70.8 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM703024RELAY GEN PURPOSE 3PDT 16A 24V |
2064 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 24VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 70.8 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.187 (4.7mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM702012RELAY GEN PURPOSE 3PDT 16A 12V |
2793 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 140 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM607012RELAY GEN PURPOSE 3PST 10A 12V |
3771 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Through Hole | 12VDC | 3PST-NO (3 Form A) | 10 A | 400VAC - Max | 140 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 20 ms | 5 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
RM602012RELAY GEN PURPOSE 3PST 10A 12V |
2475 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Socketable | 12VDC | 3PST-NO (3 Form A) | 10 A | 400VAC - Max | 140 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 9 VDC | 1.2 VDC | 20 ms | 5 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|

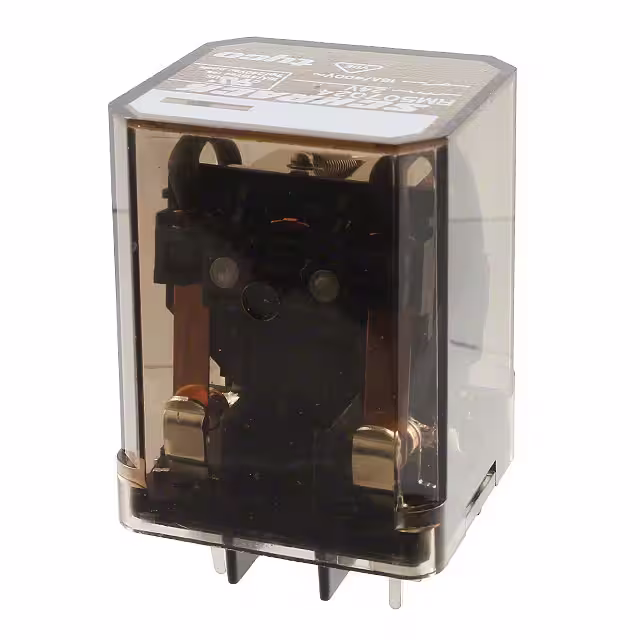

RM507024RELAY GEN PURPOSE DPST 16A 24V |
3064 | 0.00 |
Add To CartInquiry Now |
Bulk | RM, SCHRACK | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 70.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 20 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
Datasheet |
|
9400-03Q1999RELAY GEN PURPOSE SPDT 18A 24V |
3896 | 0.00 |
Add To CartInquiry Now |
Bulk | 9400, Products Unlimited | Obsolete | Chassis Mount | 24VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | - | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy |
