Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
UWD1E471MCL1GSCAP ALUM 470UF 20% 25V SMD |
3344 | 0.91 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWD | Active | 470 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 90 mOhms | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
AFK106M63D16T-FCAP ALUM 10UF 20% 63V SMD |
3795 | 1.01 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | AFK | Active | 10 µF | ±20% | 63 V | 1.5Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 60 mA @ 120 Hz | 80 mA @ 100 kHz | 1.5 Ohms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
Datasheet |
|
EEE-FK1A122SVCAP ALUM 1200UF 20% 10V SMD |
2943 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FKS, Anti-Vibration | Active | 1200 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
EEE-FK1C102SVCAP ALUM 1000UF 20% 16V SMD |
3330 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FKS, Anti-Vibration | Active | 1000 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
EEE-FK1H271SVCAP ALUM 270UF 20% 50V SMD |
3820 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FKS, Anti-Vibration | Active | 270 µF | ±20% | 50 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 435.5 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1A471UVCAP ALUM 470UF 20% 10V SMD |
500 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TCU, Anti-Vibration | Active | 470 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1A561UVCAP ALUM 560UF 20% 10V SMD |
3110 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TCU, Anti-Vibration | Active | 560 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1C331UVCAP ALUM 330UF 20% 16V SMD |
2092 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TCU, Anti-Vibration | Active | 330 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1C391UVCAP ALUM 390UF 20% 16V SMD |
3131 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TCU, Anti-Vibration | Active | 390 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1E221UVCAP ALUM 220UF 20% 25V SMD |
3377 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TCU, Anti-Vibration | Active | 220 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1E331UVCAP ALUM 330UF 20% 25V SMD |
3493 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TCU, Anti-Vibration | Active | 330 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EEE-TC1V221UVCAP ALUM 220UF 20% 35V SMD |
3333 | 1.83 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | TCU, Anti-Vibration | Active | 220 µF | ±20% | 35 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UCA2W6R8MPD1TDCAP ALUM 6.8UF 20% 450V RADIAL |
2185 | 0.92 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UCA | Not For New Designs | 6.8 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 150 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
Datasheet |
|

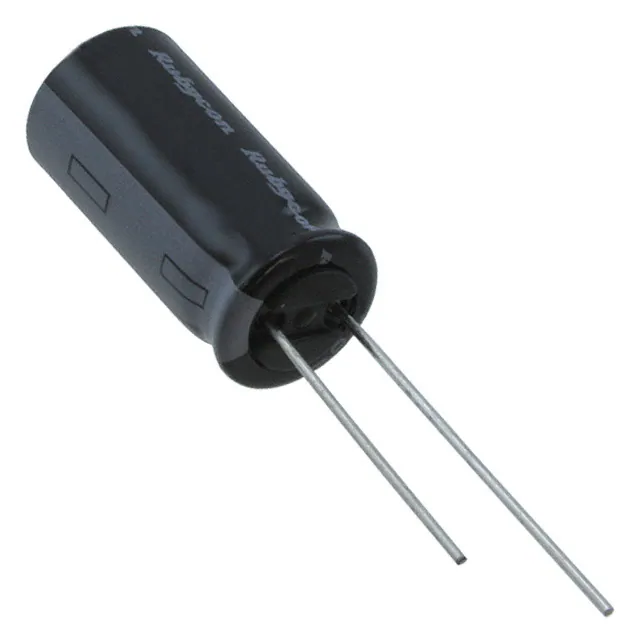

35YXG470MEFC10X20CAP ALUM 470UF 20% 35V RADIAL |
2927 | 0.82 |
Add To CartInquiry Now |
Bulk | YXG | Active | 470 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.4 A @ 100 kHz | 46 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
6.3YXG1500MEFC10X20CAP ALUM 1500UF 20% 6.3V RADIAL |
840 | 0.82 |
Add To CartInquiry Now |
Bulk | YXG | Active | 1500 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.4 A @ 100 kHz | 46 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
EEE-FT1A102GVCAP ALUM 1000UF 20% 10V SMD |
2080 | 1.84 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FT, Anti-Vibration | Active | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UVY1J470MEDCAP ALUM 47UF 20% 63V RADIAL |
2007 | 0.37 |
Add To CartInquiry Now |
Bulk | UVY | Not For New Designs | 47 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 240 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
Datasheet |
|
ULT2W7R5MNL1GSCAP ALUM 7.5UF 20% 450V SMD |
3620 | 1.56 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | ULT | Active | 7.5 µF | ±20% | 450 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 40 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
UVY1V101MEDCAP ALUM 100UF 20% 35V RADIAL |
3859 | 0.37 |
Add To CartInquiry Now |
Bulk | UVY | Not For New Designs | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 225 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
Datasheet |
|
UKL1A470KDDANACAP ALUM 47UF 10% 10V RADIAL |
2436 | 0.37 |
Add To CartInquiry Now |
Bulk | UKL | Not For New Designs | 47 µF | ±10% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 220 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
