Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
UCJ1H330MCL1GSCAP ALUM 33UF 20% 50V SMD |
2108 | 0.88 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCJ | Active | 33 µF | ±20% | 50 V | 2Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 200 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UWD1V221MCL1GSCAP ALUM 220UF 20% 35V SMD |
3157 | 0.88 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWD | Active | 220 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 90 mOhms | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
UPM1H471MHD6TNCAP ALUM 470UF 20% 50V RADIAL |
3461 | 1.52 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 470 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.5 A @ 10 kHz | 46 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
Datasheet |
Series.jpg)
|
EEE-FPV101XALCAP ALUM 100UF 20% 35V SMD |
3835 | 0.99 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FP, Halogen Free | Active | 100 µF | ±20% | 35 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datasheet |
|
EEE-FPV680XALCAP ALUM 68UF 20% 35V SMD |
2792 | 0.99 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FP, Halogen Free | Active | 68 µF | ±20% | 35 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 390 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datasheet |
|
EEE-FT1V391UVCAP ALUM 390UF 20% 35V SMD |
2454 | 1.80 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FT, Anti-Vibration | Active | 390 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
URZ2D330MHD1TNCAP ALUM 33UF 20% 200V RADIAL |
3896 | 1.53 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | URZ | Active | 33 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 400 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
Datasheet |
|
UUG0J332MNQ6MSCAP ALUM 3300UF 20% 6.3V SMD |
2116 | 1.36 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UUG | Not For New Designs | 3300 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
Datasheet |
|
UWG1H330MNL1GSCAP ALUM 33UF 20% 50V SMD |
2600 | 0.88 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWG | Active | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 600 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
EMHL160ARA681MJA0GCAP ALUM 680UF 20% 16V SMD |
2893 | 1.81 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | AIchip™- MHL | Active | 680 µF | ±20% | 16 V | 200mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 409.2 mA @ 120 Hz | 440 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
Datasheet |
|
EMVY101ARA680MKE0SCAP ALUM 68UF 20% 100V SMD |
2115 | 1.54 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Alchip™- MVY | Active | 68 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 450 mA @ 100 kHz | 330 mOhms | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
Datasheet |
|
UUQ1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
3897 | 0.98 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UUQ | Active | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 66 mA @ 120 Hz | 99 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UUQ1H220MCL1GSCAP ALUM 22UF 20% 50V SMD |
3141 | 0.98 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UUQ | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 51 mA @ 120 Hz | 76.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datasheet |
|
UVZ2C330MPDCAP ALUM 33UF 20% 160V RADIAL |
2013 | 0.81 |
Add To CartInquiry Now |
Bulk | UVZ | Not For New Designs | 33 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 232 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
UVZ2E220MHDCAP ALUM 22UF 20% 250V RADIAL |
447 | 0.81 |
Add To CartInquiry Now |
Bulk | UVZ | Not For New Designs | 22 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 208 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
Datasheet |
|
UPW1J151MPDCAP ALUM 150UF 20% 63V RADIAL |
2642 | 0.81 |
Add To CartInquiry Now |
Bulk | UPW | Not For New Designs | 150 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 660 mA @ 100 kHz | 194 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
Datasheet |
|
UPW2D100MPDCAP ALUM 10UF 20% 200V RADIAL |
3171 | 0.81 |
Add To CartInquiry Now |
Bulk | UPW | Not For New Designs | 10 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 128 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
Datasheet |
|

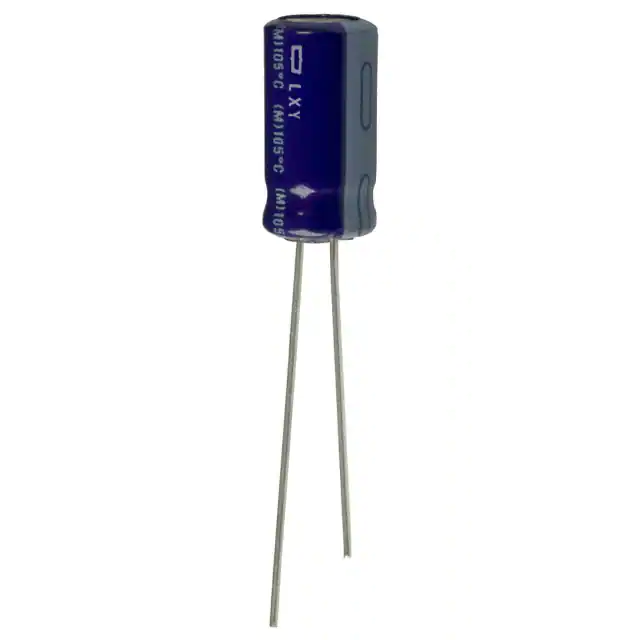

ELXY160ELL331MH15DCAP ALUM 330UF 20% 16V RADIAL |
3929 | 0.81 |
Add To CartInquiry Now |
Bulk | LXY | Active | 330 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 277.5 mA @ 120 Hz | 555 mA @ 100 kHz | 130 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
Datasheet |
|
UBT1V101MPD1TDCAP ALUM 100UF 20% 35V RADIAL |
2132 | 0.89 |
Add To CartInquiry Now |
Cut Tape (CT),Tape & Box (TB) | UBT | Active | 100 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 310 mA @ 120 Hz | 620 mA @ 100 kHz | 150 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|
Datasheet |
|
UUL1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
2874 | 0.93 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UUL | Active | 47 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 63 mA @ 120 Hz | 94.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
