H8 Battery: Size, Specifications, Features, and Replacement Guide

2024/12/12 16:06:00

Views:

H8 battery is an important member of the automotive battery market. Its wide range of applications, excellent performance and diverse choices make it a popular choice for car owners. This article will introduce the size, specifications, characteristics and replacement guidelines of the H8 battery in detail, and analyze the important keywords related to it to help owners more fully understand and choose a suitable H8 battery.


AutoCraft Platinum Car Battery | Type H8 AGM ( Review)


Table of Contents

What is H8 Battery?

H8 Battery

H8 Battery is commonly used to refer to a specific specification of a car battery. This specification is mainly suitable for high-performance vehicles that require high cold cranking amps (CCA) for starting, such as luxury SUVs, sports cars, and some trucks. Its role in the automotive battery market is significant, with a focus on energy density, durability, and reliable power delivery.

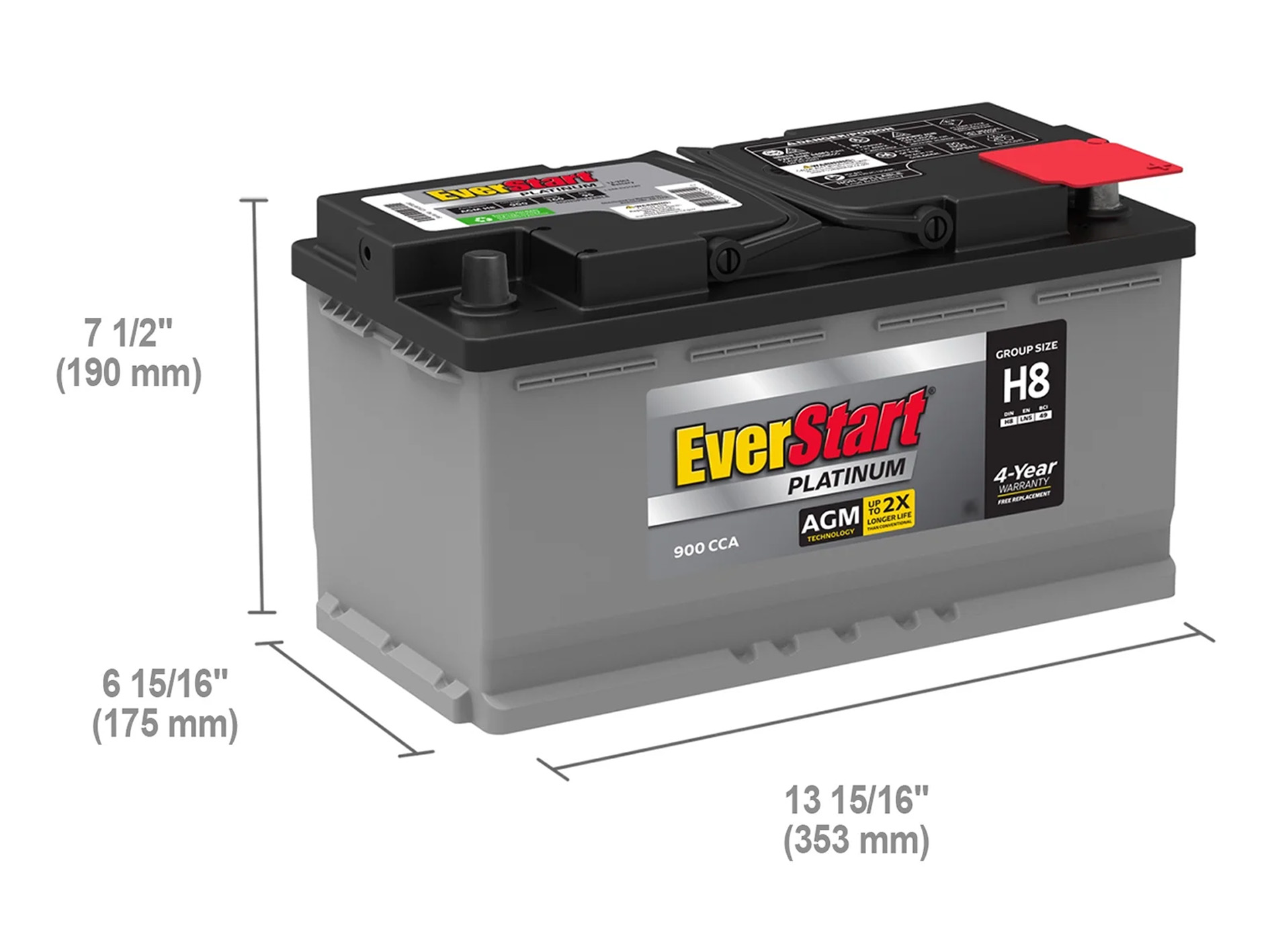

H8 Battery Specifications

H8 battery specifications include the following parameters:

Specification
Details
Voltage
12 volts
Size
12.4 x 6.9 x 7.5 inches (315 x 175 x 190 mm)
Weight
40 to 60 pounds (18 to 27 kg)
Capacity
70 to 95 Ah (ampere-hour)
Type
Lead-Acid, AGM, or Lithium
Cold Start Current (CCA)
800 to 950 amps

These specifications make the H8 battery suitable for high capacity battery requirements and reliable in heavy-duty applications such as trucks and agricultural equipment.


H8 Battery Structure

The basic structure of H8 battery is composed of the following parts:

Cathode: usually a material such as lithium cobalt oxide (LiCoO₂), which stores lithium ions.

Negative: usually graphite or silicon material, receiving lithium ions.

Electrolyte: a solvent containing lithium salts that conducts lithium ions.

Diaphragm: prevents short circuit of positive and negative electrodes, allowing lithium ions to pass through.

Shell: protects the internal structure of the battery.

Battery Management System (BMS): Monitor the charging and discharging status and safety of the battery.

These parts work together to ensure the functionality and safety of the battery.


H8 Battery Features

The main features of the H8 battery include the following:

Large capacity: Suitable for vehicles that require higher energy reserves.

High Cold Start current (CCA) : provides sufficient startup power even in cold climates.

Durable: The use of advanced technology manufacturing, longer life.

Low maintenance requirements: Many H8 batteries have a maintenance-free design, reducing maintenance costs for users.

These properties make the H8 battery ideal for many luxury and high-performance cars.


H8 Battery Applications

H8 batteries are widely used in areas that demand high-performance batteries with energy efficiency and long lifespans:

Automotive: For medium to large cars, SUVs and light commercial vehicles, providing high cold start current and large capacity.

Agricultural equipment: Supplies the necessary power for tractors and combine harvesters with its durability and performance.

Ships: For yachts and other water conveyances to ensure a stable start.

Emergency power: Provide backup power for data centers, hospitals, etc. in UPS system.

Outdoor equipment: such as snowmobiles and camping generators, adapted to extremely cold weather conditions.

Construction equipment: Powers cranes and electric forklifts in demanding environments.

Military & Defense: Used in eco-friendly batteries that power military vehicles and communication systems.

Renewable energy: Serves as an energy storage option for solar and wind power systems.

These applications rely on the high energy density and long endurance of the H8 battery.


Advantages of H8 battery

The H8 battery is a specific type of storage battery, which is commonly used in power tools, backup power sources, and some vehicle battery systems. Its advantages can include:

High energy density: H8 batteries usually have higher energy density, meaning that it can store more electrical energy in a smaller volume or lighter weight, providing longer life or more power.

Long life: H8 batteries are usually made with high quality battery chemicals and are designed to withstand more charge and discharge cycles to extend battery life.

Fast charging capability: Some H8 batteries support fast charging speed, which can greatly reduce waiting time and improve work efficiency.

High safety: High-end H8 battery design usually includes multiple safety protection mechanisms, such as overcharge, overdischarge, short circuit protection, etc., to reduce the safety risk of battery use.

Stable performance: H8 battery provides stable voltage output and exhibits good consistency and reliability in a variety of applications.

High temperature resistance: Some H8 batteries have good high temperature resistance, can work in high temperature environment, and adapt to the needs of some special applications.

Environmental protection: Compared with the traditional lead-acid battery, modern H8 battery (such as lithium battery type) has more environmental advantages, does not contain harmful substances, and recycling is easier.

The specific strengths and weaknesses of the H8 battery may vary depending on the specific model, but in general, they are designed to provide efficient, long-lasting energy solutions.


H8 Battery Life

H8 battery life typically depends on a variety of factors, including frequency of use, temperature conditions, and maintenance. In general, H8 batteries last between three and five years, however, regular inspection and proper maintenance can significantly extend the life of the battery.


H8 Battery Replacement Guide

Choose the right H8 battery

When replacing the H8 battery, consider the following factors for optimal performance:

Size: Ensure that the battery size meets the space requirements of the vehicle battery compartment.

Cold Cranking Amps (CCA): Ensures sufficient starting power, especially in cold climates.

Battery type: Choose between AGM batteries, lithium batteries, or lead-acid batteries based on the vehicle's power requirements and environmental preferences.

Energy Density: Look for batteries with higher energy density for long-lasting performance.

H8 battery removal and installation

Disconnect the vehicle's power supply: Before removing the battery, you should first disconnect the vehicle's power supply to avoid failure of the electrical system.

Remove old batteries: Remove old batteries with appropriate tools. First loosen the negative wiring, then loosen the positive wiring, and finally remove the battery.

Install new battery: Put the new battery into the battery compartment and connect the positive and negative wiring. Ensure that the wiring is firm and correct to avoid short circuit or bad contact.

Check the battery performance: After installing the new battery, check the battery voltage and startup performance to ensure that it is working properly.

Regular inspection and maintenance

Check the battery voltage regularly: Use a voltmeter to check the battery voltage regularly to ensure that it is in the normal range.

Clean the battery terminal: Clean the battery terminal regularly to prevent the accumulation of oxides and affect the performance of the battery.

Check the electrolyte level: For conventional lead-acid batteries, check the electrolyte level regularly to ensure its adequacy.


H8 Battery Equivalent

H8 Battery Equivalent includes Group 49 or DIN-sized batteries, making it easier to find alternatives for the H8 battery size.

Common H8 battery equivalent model

Group 49 Battery: In the US market, the H8 battery is often referred to as the Group 49 battery. The two models have exactly the same dimensions (315mm × 175mm × 190mm) and are also very similar in terms of capacity (Ah) and cold start current (CCA), so they can be used interchanged.

DIN L5 Battery: The L5 battery is also very close in size and electrical performance to the H8 battery according to the European DIN standard, so it can be used as an equivalent replacement in the European market.

94R Battery: The 94R battery is slightly smaller than the H8, but can also be used as an H8 replacement model on some vehicles. However, special attention should be paid to whether the cold start current and capacity meet the actual needs of the vehicle.

Group-49 AGM Battery: If you need a higher performance solution, you can choose Group-49 AGM battery. This battery uses advanced AGM technology and is suitable for vehicles that require higher battery performance.

AGM H8 battery: This type of battery uses absorptive glass gasm technology to provide greater performance and shock resistance and is preferred for many high performance vehicles.

H8/Group-49 Lithium batteries: In some high-end vehicles, lithium batteries are gradually becoming an alternative to lead-acid batteries, with more lightweight and longer service life.

49/H8 battery: This is a common alternative H8 battery model for many vehicles that use H8 batteries.

Precautions when replacing equivalent batteries

Ensure size match: Although many equivalent cells are similar in performance, be sure to check that the dimensions are consistent with the original cell.

Check polarity layout: The positive and negative electrode layout of the battery must be the same as that of the primary battery, otherwise it may cause connection problems.

Performance index comparison: Ensure that the cold start current and capacity of the equivalent battery can meet the needs of the vehicle.

By using the equivalent battery, the owner can quickly find an alternative with similar performance when it is difficult to find the original model of the H8, while ensuring the normal operation of the vehicle.


Sum up

H8 batteries stand out in the automotive battery market due to their high energy density, long lifespan, and eco-friendly options. Whether choosing traditional lead-acid batteries, advanced AGM batteries, or lithium battery technology, owners can find reliable solutions tailored to their specific needs.


Frequently Asked Questions

what does h8 mean?

The answer to "what does h8 mean?" is clear: H8 is a kind of group code for car batteries, which is used to indicate the size specification and capacity range of the battery. The H8 battery is known for its large size and high performance, and is often the first choice for many high-end vehicles.

What is a DIN H8 battery?

The DIN H8 battery is a battery size defined according to the German Industrial standard (DIN). Its length, width and height are designed according to uniform standards and are widely used in high-end cars in Europe and the United States. Such batteries typically have a large capacity and high current output, making them ideal for vehicles that require more energy support.

How to properly dispose of the discarded H8 battery?

The discarded H8 battery should be sent to a professional recycling point for processing and should not be discarded at will. Modern H8 batteries, especially lithium batteries, have good recycling value, and contain harmful substances, and correct disposal is helpful to environmental protection.

What is the approximate price of H8 battery?

H8 batteries typically cost between $100 and $250, depending on the brand, battery type (lead-acid, AGM, or lithium), and vehicle type and usage requirements. AGM and lithium batteries are usually more expensive than conventional lead-acid batteries.

How to determine whether the H8 battery needs to be replaced?

Common signs include: difficulty starting the vehicle, aging of the battery (such as shell expansion or cracks), low battery voltage, etc.
