DL2025 vs. CR2025: Understanding Their Practical Equivalence

DL2025 and CR2025 batteries are often considered equivalents in most cases, and this belief holds true in many practical scenarios. Watches, calculators, and car key fobs are just a few examples of the small electronics that frequently use both kinds of batteries. In this blog post, we'll delve into the similarities and differences between these batteries, examining their specifications, performance, compatibility, and best use cases.

CR2025-P73 | 5pcs 3V Button Battery CR2025 DL2025 BR2025 KCR2025 coin Cell Lithium Battery CR

What Are DL2025 and CR2025 Batteries?

DL2025 and CR2025 are both classified as coin cell batteries, a type distinguished by their compact, flat, and round shape, reminiscent of a coin. These batteries are specifically designed to fit into small, slim electronic devices where space is limited but a reliable and long-lasting power source is required.

The designation "CR" in CR2025 refers to the chemical composition of the battery-lithium manganese dioxide. This chemical setup is favored in battery manufacture for its ability to provide a stable 3-volt charge in a small form factor, ideal for maintaining consistent performance over the battery's lifespan. Lithium manganese dioxide also offers a high energy density and a slow rate of discharge, making it suitable for long-term applications where regular battery replacement is impractical.

On the other hand, "DL" in DL2025 denotes that the battery is produced by Duracell, a well-known manufacturer in the battery industry. The DL designation is used to mark Duracell's version of the lithium coin battery, adhering to the same specifications and size as the non-rechargeable (primary) lithium coin CR2025 but perhaps differing slightly in terms of specific performance characteristics like longevity and operational stability under various conditions, depending on Duracell's proprietary technology and quality controls.

The numbers '2025' in both DL2025 and CR2025 indicate the physical dimensions of each battery-20 millimeters in diameter and 2.5 millimeters in thickness. These dimensions are standard across both types, ensuring that either battery can be used interchangeably in devices designed for this size. This standardization is crucial for manufacturers and consumers alike, as it simplifies the design of electronic devices and the process of replacing batteries. It ensures that users can easily find replacements without worrying about compatibility issues, provided they select a battery with the same size designation.

Detailed Breakdown of Technology and Specifications

Chemical Composition

Both DL2025 and CR2025 batteries use a lithium manganese dioxide chemistry. This chemistry is favored for its high voltage output per cell (about 3 volts), which is significantly higher than alkaline or zinc-carbon cells. Since lithium cells don't self-discharge as quickly when not in use, this is another characteristic of lithium cells that makes them particularly effective. This makes them ideal for applications requiring long shelf-life and reliability, such as in medical devices, security tokens, and backup power sources.

Physical Design

As mentioned, the numbers in '2025' signify the physical dimensions (20mm in diameter and 2.5mm thick), which is a standard size across manufacturers. This standardization is crucial as it ensures that batteries are interchangeable across various devices without the need for physical modifications.

Performance Metrics and Testing Standards

Capacity and Energy Density

While both types of batteries generally provide a capacity of around 160 to 165 mAh, slight variations can occur due to differences in manufacturing processes and the purity of materials used. These differences, though often negligible, can influence the battery's performance, especially in high-drain devices.

Voltage Stability

Voltage stability is another critical factor. Both DL2025 and CR2025 are designed to offer stable voltage levels throughout their lifecycle, but the consistency of this performance can vary slightly depending on the brand. Duracell, for example, might implement specific proprietary technologies aimed at enhancing the stability and efficiency of their batteries.

Real-World Applications and Compatibility

Typical Use Cases

Common Use Cases Both kinds of batteries are commonly found in compact devices when space is at a premium yet a consistent power source is required. Typical applications include remote controls, digital thermometers, watches, calculators, and electronic car keys. In these applications, the interchangeability between DL2025 and CR2025 is particularly advantageous, providing users with flexibility in their choice of battery suppliers.

Compatibility Issues

While DL2025 and CR2025 are interchangeable in most devices, specific high-precision devices, like certain medical instruments, may require batteries with very tight specification tolerances. In such cases, manufacturers may recommend a particular brand or model to ensure optimal performance.

Market Factors

Branding and Consumer Choices

Consumer decision is significantly influenced by branding. Duracell's DL2025, for example, might be perceived as higher quality due to brand reputation, even if the technical specifications are similar to other brands' CR2025 batteries. This perception can affect purchasing decisions and market prices.

Availability and Cost

The widespread availability of both battery types means that consumers often have the choice between them based on cost, accessibility, and brand preference. Price differences are typically small but can be a deciding factor for some buyers, particularly those purchasing in bulk for corporate or healthcare applications.

DL2025 vs. CR2025: Feature Breakdown

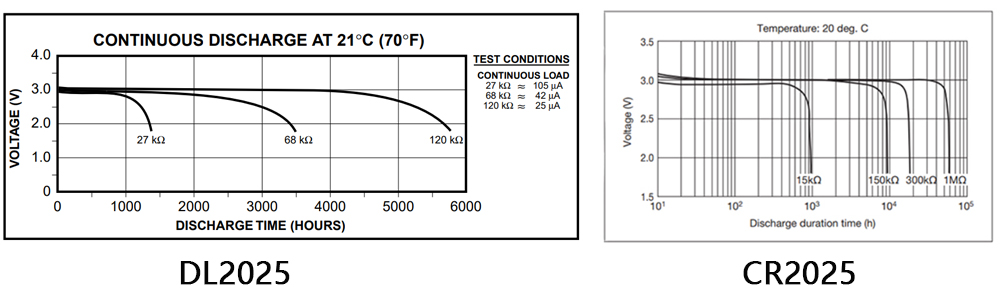

Ⅰ. Discharge Characteristic

When comparing the DL2025 and CR2025 coin cell batteries, particularly focusing on their discharge characteristics, it's important to understand how these properties affect their performance in various devices. Both batteries are designed to deliver consistent voltage and long-lasting power, but subtle differences in their discharge curves could influence device functionality and overall battery life.

Discharge Characteristic Overview

Discharge characteristics refer to how the voltage in a battery decreases over time and under load. For devices that require a steady voltage to function correctly (like digital watches and medical devices), the stability of this voltage is crucial. Lithium manganese dioxide batteries, like the DL2025 and CR2025, generally offer excellent discharge characteristics, including:

 ● Flat Voltage Discharge Curve: Generally, both kinds of batteries offer a discharge curve that is flat. This indicates that the voltage steadily drops toward 3 volts for most of the battery's life before abruptly ceasing to exist. This feature is useful for devices whose operation depends on a steady voltage.
 ● Low Self-Discharge Rate: These batteries only lose a small portion of their charge annually while stored in an unusable state. Applications where the battery must function for extended periods of time without replacement, including alarm systems and backup memory, will especially benefit from this functionality.

Comparing DL2025 and CR2025

1. Brand-Specific Technologies: While both batteries share the same chemical composition, Duracell may employ specific technologies or materials that could slightly alter the discharge curve of the DL2025. These modifications might aim to enhance the stability of the voltage further or extend the flat part of the discharge curve, offering a slight performance edge in certain high-demand applications.

2. Quality and Consistency: Duracell's DL2025 might also benefit from stricter quality control processes, potentially leading to more consistent performance across individual batteries. This consistency can be crucial for devices where even minor variations in voltage or capacity could affect functionality.

3. Performance in Varied Conditions: Both types of batteries are designed to perform well under a range of environmental conditions, but there could be differences in how well they maintain their voltage in extreme temperatures. Duracell, for example, might optimize the DL2025 to better handle such variations, which would be reflected in its discharge characteristics under these conditions.

Practical Implications

For most consumer applications, the differences in discharge characteristics between DL2025 and CR2025 may not be noticeably impactful. However, in precision devices, even slight variations in voltage stability and discharge rate could influence the performance and reliability of the device. Therefore, while both batteries provide robust and reliable power sources suitable for a wide range of applications, specific use cases might benefit from choosing one over the other based on detailed performance data provided by the manufacturer.

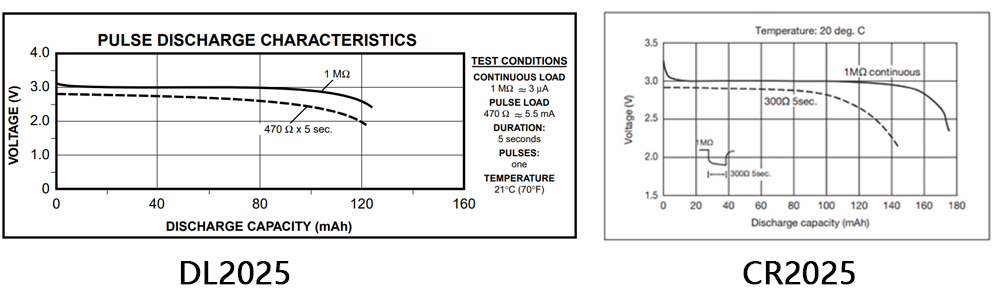

Ⅱ. Pulse Discharge Characteristics

Discussing the pulse discharge characteristics of DL2025 and CR2025 batteries is essential for applications where the battery needs to deliver short, high-intensity bursts of power. This is common in devices like car key fobs, digital cameras, and certain medical equipment, where quick bursts of energy are required intermittently.

Understanding Pulse Discharge Characteristics

Pulse discharge refers to the ability of a battery to handle significant power demands in short intervals without significant drops in voltage or overall capacity. This performance metric is crucial for devices that operate intermittently with high peak currents followed by periods of low or no current draw.

Key Factors in Pulse Discharge

1. Peak Current: This is the maximum current a battery can supply in a short burst. A higher peak current capability means the battery can handle more demanding tasks briefly without performance degradation.

2. Recovery Time: After a high-current pulse, the voltage may drop temporarily. The speed at which the voltage returns to its nominal level is known as the recovery time. For devices that need frequent energy bursts, shorter recovery durations are preferable.

3. Impact on Overall Capacity: Repeated high-current pulses can reduce a battery's total effective capacity. The ability to minimize this impact is a desirable characteristic.

Comparison Between DL2025 and CR2025

While both DL2025 and CR2025 batteries are designed for similar applications, there are nuanced differences that can influence their performance under pulse conditions:

 ● Material Quality and Engineering: Duracell's DL2025 might use high-purity materials or specialized electrode designs to improve performance under pulse conditions. These engineering enhancements can help maintain higher voltages during pulse discharge and improve recovery times.
 ● Voltage Stability: Duracell may optimize the DL2025 for better voltage stability under pulse loads, which is critical for sensitive electronic devices. This would manifest as less voltage sag during pulses and quicker stabilization.
 ● Consistency Across Batches: Brand reputation plays a role in expected performance consistency. Duracell, known for its quality control, may produce DL2025 batteries with more consistent pulse discharge behaviors compared to generic CR2025 batteries.

Practical Implications

For general use in devices like remote controls or LED flashlights, both DL2025 and CR2025 will perform adequately. However, in high-demand applications, the small differences in pulse discharge characteristics could be significant:

 ● Medical Devices: For medical devices needing reliable performance under critical conditions, choosing a battery like the DL2025, which offers better pulse performance and consistent quality, is prudent.
 ● MAutomotive and Security Devices: In car key fobs and security devices, where failure is not an option, the DL2025's enhanced pulse discharge performance ensures better reliability.

When selecting a battery for a device that operates under pulse conditions, it is essential to consider the pulse discharge characteristics. The performance and reliability of the DL2025 may be advantageous for critical applications. However, for everyday consumer electronics, both the DL2025 and CR2025 are likely to provide satisfactory performance. Always consult device specifications and consider environmental factors and device usage patterns when choosing a battery to ensure optimal performance and longevity.

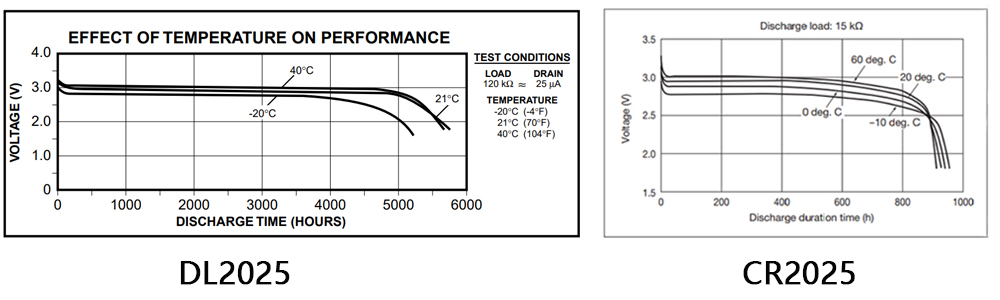

Ⅲ. Temperature Characteristics

Temperature characteristics are crucial for understanding how DL2025 and CR2025 batteries perform under various environmental conditions. These characteristics impact how well a battery operates in extreme cold or heat, which can be critical for devices used outdoors or in fluctuating indoor environments.

Temperature Effects on Battery Performance

1. Low-Temperature Performance: Batteries tend to perform less efficiently in cold conditions. At lower temperatures, the chemical reactions within a battery slow down, leading to decreased voltage output and higher internal resistance. This can result in slower device operation or even failure to power the device at all.

2. High-Temperature Performance: At high temperatures, chemical reactions inside the battery can become too rapid. This could result in faster rates of self-discharge and a shorter battery life in general. Additionally, in extreme cases, safety risks such as leaking or bursting can occur due to internal pressure build-up.

Specific Temperature Characteristics of DL2025 and CR2025

Both the DL2025 and CR2025 are designed to handle a typical range of temperature conditions, but there are nuances in how each might perform:

 ● DL2025: Duracell may design its DL2025 batteries with specific enhancements to improve performance in extreme temperatures. This can include using high-quality electrolytes and separators that maintain performance and safety in colder climates. Duracell might also optimize the internal design to reduce the risk of thermal runaway in hot conditions.
 ● CR2025: As a general category, CR2025 batteries are expected to handle standard temperature ranges well, but specific brands may vary in their effectiveness. These batteries have a typical operational temperature range of -20°C to +70°C. However, performance nuances at the boundaries of this range can differ based on the exact chemical composition and build quality.

Testing and Data

Manufacturers like Duracell typically provide detailed datasheets that include information on temperature tolerance and performance metrics at different temperatures. These datasheets would show how voltage and capacity are expected to change with temperature fluctuations.

Practical Implications

For devices used in extreme conditions, such as outdoor equipment in cold weather (e.g., ski resort equipment) or high-temperature environments (e.g., monitoring equipment in deserts), choosing the right battery is crucial:

 ● Outdoor and Cold Environments: For devices used in cold weather, DL2025 might be preferred if it demonstrates better performance at low temperatures, ensuring reliability when needed most.
 ● High-Temperature Applications: In applications where devices are exposed to high temperatures, a battery like the DL2025 might offer more reliable performance and safety features designed to handle heat better.

Understanding the temperature characteristics of DL2025 and CR2025 batteries helps in selecting the right battery type for specific applications, especially in extreme environments. It is imperative to refer to the technical requirements and potentially look for batteries that are rated specifically for operation in severe temperatures. Whether for everyday consumer gadgets or specialized equipment, ensuring the battery can handle the intended operating temperature range is key to device reliability and longevity.

Equivalents for the CR2025 Battery

Due to its small size and consistent 3-volt output, the CR2025 lithium coin cell is a well-liked lithium coin cell that is frequently utilized in a variety of electronic products. If you're looking for equivalents to the CR2025, here are some alternatives that match its specifications and can be used interchangeably in most devices:

1. DL2025: This is Duracell's version of the CR2025. It has the same voltage and dimensions and is generally interchangeable with the CR2025.

2. BR2025: Another similar battery, the BR2025 uses lithium carbon monofluoride instead of lithium manganese dioxide, which can affect its voltage stability and performance at different temperatures. It's generally suitable for use in the same applications as the CR2025.

3. ECR2025: This designation is used by Energizer, indicating their version of the CR2025. It is made to be directly interchangeable with the CR2025 and satisfies the same standards as the DL2025.

4. LM2025: Sometimes used as an alternative designation, the LM2025 is essentially the same as the CR2025 in terms of voltage and dimensions.

Factors to Consider When Choosing an Equivalent:

 ● Voltage and Capacity: Ensure that the replacement battery offers the same 3 volts. Capacities can vary slightly but are generally in the same range.
 ● Physical Size: The battery must have the same dimensions (20mm in diameter and 2.5mm thick) to fit properly in the device.
 ● Chemistry: Different chemical compositions can affect performance, especially in different temperature conditions. For example, the BR2025 may perform better in colder environments.
 ● Brand and Quality: Reliability and consistency in performance can be guaranteed by choosing trusted brands such as Panasonic, Energizer, or Duracell.

These equivalents can typically be found wherever batteries are sold, providing flexibility and options when needing a replacement for a CR2025.

Key Differences Between DL2025 and CR2025 Batteries

The major differences between DL2025 and CR2025 coin cell batteries are primarily related to branding and potential variations in manufacturing quality and technology:

 ● Branding: DL2025 refers to the Duracell-branded version of the CR2025 lithium coin cell battery. The "DL" designation indicates it's produced by Duracell, while "CR2025" is a standard industry designation that can be used by various manufacturers.

 ● Quality and Technology: Duracell may implement specific proprietary technologies or higher quality control standards in the manufacturing of DL2025 batteries. This can lead to slightly improved performance in terms of longevity and reliability compared to some generic CR2025 batteries.

 ● Performance Consistency: While both batteries are designed to meet the same basic specifications (3 volts, 20mm diameter, 2.5mm thickness), the DL2025 might offer more consistent performance across batches due to Duracell's established manufacturing processes.

In practical terms, both types of batteries are often interchangeable in devices requiring a 3V CR2025 battery, with differences mostly relevant in high-precision applications or devices particularly sensitive to battery performance nuances.

Conclusion

DL2025 and CR2025 batteries can be considered equivalents in most practical applications due to their identical chemical compositions, voltages, dimensions, and capacities. When choosing between these batteries, it's essential to consider factors such as price and brand preference, but from a technical standpoint, either should perform well in devices requiring this size and type of battery. Always ensure compatibility by checking device requirements and consider manufacturer recommendations for optimal battery performance.

Common Queries Answered

1. What is the difference between DL2025 and CR2025 batteries?

The primary difference is branding: DL2025 is Duracell's specific brand for the CR2025 battery. Both batteries have the same dimensions (20mm in diameter and 2.5mm thick) and voltage (3 volts), and use lithium manganese dioxide chemistry. The performance and quality may vary slightly, with Duracell possibly offering enhanced consistency and longevity due to their manufacturing standards.

2. Can I use a DL2025 battery instead of a CR2025?

Yes, you can use a DL2025 battery in place of a CR2025. They are interchangeable since they share identical physical dimensions and electrical characteristics. Always ensure that the device's battery requirements match the specifications of the battery you choose to use.

3. Which devices use DL2025 and CR2025 batteries?

Batteries DL2025 and CR2025 are frequently found in small electronic gadgets that need a portable power supply. This includes wristwatches, calculators, electronic books, garage door openers, fitness appliances, and medical devices like glucometers and digital thermometers.

4. Are DL2025 batteries better than CR2025?

Whether DL2025 batteries are better than CR2025 depends on the specific requirements of your device and personal preferences. Duracell's DL2025 might offer better performance consistency and reliability, which could be crucial in high-demand applications. However, for general uses, both batteries typically provide satisfactory performance.

5. Where can I buy CR2025 or DL2025 batteries?

CR2025 and DL2025 batteries are widely available at electronics stores, supermarkets, drugstores, and online retailers. Popular online platforms like Amazon, eBay, or direct from manufacturers such as Duracell and other electronics suppliers often offer competitive pricing and convenient shipping options.

6. How long do DL2025 and CR2025 batteries last?

DL2025 and CR2025 battery lifespans normally span five to ten years, contingent upon usage and storage circumstances. These batteries are designed for long-term performance in low-drain devices such as watches and calculators, and their self-discharge rate is very low, ensuring long shelf life.

7. Are DL2025 and CR2025 batteries rechargeable?

No, both DL2025 and CR2025 are non-rechargeable lithium coin cell batteries. Attempting to recharge them can pose safety risks, including leakage or explosion. Always replace them with new batteries once depleted.

8. What should I do if a CR2025 battery leaks?

If a CR2025 battery leaks, it is important to handle the situation carefully to avoid skin contact with the leaked material. Wear protective gloves, remove the battery from the device, and clean the compartment with a mild acid like vinegar or lemon juice. Thoroughly dry the compartment before inserting a new battery. Dispose of the leaked battery properly according to local regulations.

9. Can DL2025 and CR2025 batteries be shipped internationally?

Yes, DL2025 and CR2025 batteries may be delivered abroad; but, because of their lithium composition, some rules and restrictions must be observed. It's important to check with the carrier and comply with international and local regulations regarding the shipment of lithium batteries.

10. How do I properly dispose of DL2025 and CR2025 batteries?

To reduce their influence on the environment, DL2025 and CR2025 batteries should be disposed of appropriately. Many regions have specific recycling programs for batteries, which prevent harmful chemicals from entering the environment. For information on how to dispose of lithium batteries in your area, contact the waste management authority in your community.
