When it comes to replacing batteries in watches, hearing aids, or other small electronic devices, the AG10 battery is one of the most commonly searched options. Whether you're looking for a 1.5V AG10 alkaline battery or its compatible substitutes, understanding the available alternatives can help you save both time and money. In this guide, we'll explore the AG10 battery's equivalents and provide tips on finding the best replacement for your specific needs.

G10-A battery, 1.5V Button Cell (AG10, SG10, LR54, SR54, LR1130, SR1130)

Contents

What is an Ag10 battery?
AG10 Battery Equivalents and Substitutes
AG10 Watch battery Conversion Chart
How to Choose the Right Replacement for Your AG10 Battery
Where to buy Ag10 battery?
Ag10 battery Replacement

What is an Ag10 battery?

The AG10 battery is a small alkaline button battery, are also known as "coin battery" because of its round shape. These batteries are commonly used in small, low-power electronic devices such as watches, calculators, cameras, remote controls, key/access cards, toys, and some medical and hearing AIDS.

The specifications of the AG10 battery include a diameter of 11.6 mm, a height of 3.1 mm, a weight of about 1 gram, a nominal voltage of 1.5 volts, and a capacity of about 85-90mAh. It is non-rechargeable, but recyclable. Different brands and manufacturers may have different model names, and common aliases include LR1130, L1131, A76, V10GA, etc.

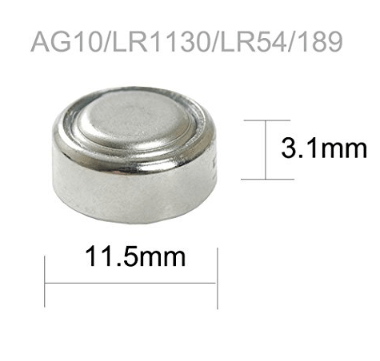

AG10 LR1130 LR54 189 battery size dimensions

Ag10 battery dimensions/size

AG10 Battery Equivalents and Substitutes

If you are looking for an AG10 battery substitute, there are several sizes and voltages that are similar and can serve as a direct replacement. Here are the most common AG10 battery equivalents.

LR1130 watch battery: Same voltage (1.5V) and size (11.6mm x 3.05mm) as AG10. It's interchangeable.

LR54 batteries: Same voltage and diameter as AG10, but slightly larger height (about 0.5 mm). In most cases, it can be directly substitute.

AG13 button cell: Similar voltage, slightly larger size (11.6mm x 5.4mm), but still available as a replacement, often used in watches and laser Pointers.

357 battery: Same voltage (1.5V) and size as AG10. Suitable for watches, calculators and similar devices.

SR1130 battery: Silver oxide battery, same size as AG10, but longer service life.

L1131 watch battery: Another alkaline battery with the same size and voltage as the AG10.

AG12 batteries: Same voltage, but slightly larger (11.6mm x 4.2mm) for devices that require greater stability and longer life.

Energizer A76 battery: The same size and voltage as the AG10, a common replacement.

389A/389/189 button cell battery：Size and voltage are fully compatible with AG10.

Battery

Capacity

Operating Temperature

Annual Self-Discharge Rate

Current Draw (20°C)

Duracell D389/D390

80 mAh (measured with a 15 kΩ load, discharging to 1.2V at 20°C)

0°C to +60°C

Less than 10% at 20°C

104 μA (current drawn through a 15 kΩ load at 20°C)"

Energizer 189

80 mAh (measured with a 15 kΩ load, discharging to 0.9V at 21°C)

83 μA (current drawn through a 15 kΩ load at 1.25V and 20°C)

Energizer E390/389

88 mAh (measured with a 15 kΩ load, discharging to 1.2V at 21°C)

Approximately 2% at 20°C

99 μA (current drawn through a 15 kΩ load at 20°C)"

Eurobatt AG10 LR1130

70 mAh (measured with a 1 kΩ load, discharging to 0.9V at 20±2°C)

Starting current: 1.5 mA (current through a 1 kΩ load at 20 ± 2°C)

Kodak AG10

75 mAh (measured with a 15 kΩ load, discharging to 0.9V)

-10°C to +45°C

muRata LR1130

70 mAh

-10°C to +60°C

Power-Xtra AG10/LR1130

80 mAh (measured with a 15 kΩ load, discharging down to 0.9V at 21°C)

Renata 389 SR1130W

80 mAh (measured with a 15 kΩ load, discharging to 1.2V at 20°C)

-10°C to +60°C

Less than 10% at 20°C

104 μA (current through a 15 kΩ load at 20°C)

Renata 390 SR1130SW

80 mAh (measured with a 15 kΩ load, discharging to 0.9V at 20°C)

-10°C to +60°C

Less than 5% at 20°C

104 μA (current through a 15 kΩ load at 20°C)

Battery Cross-Reference & Substitutes:LR1130, AG10, 389, 390 Batteries Comparison Chart

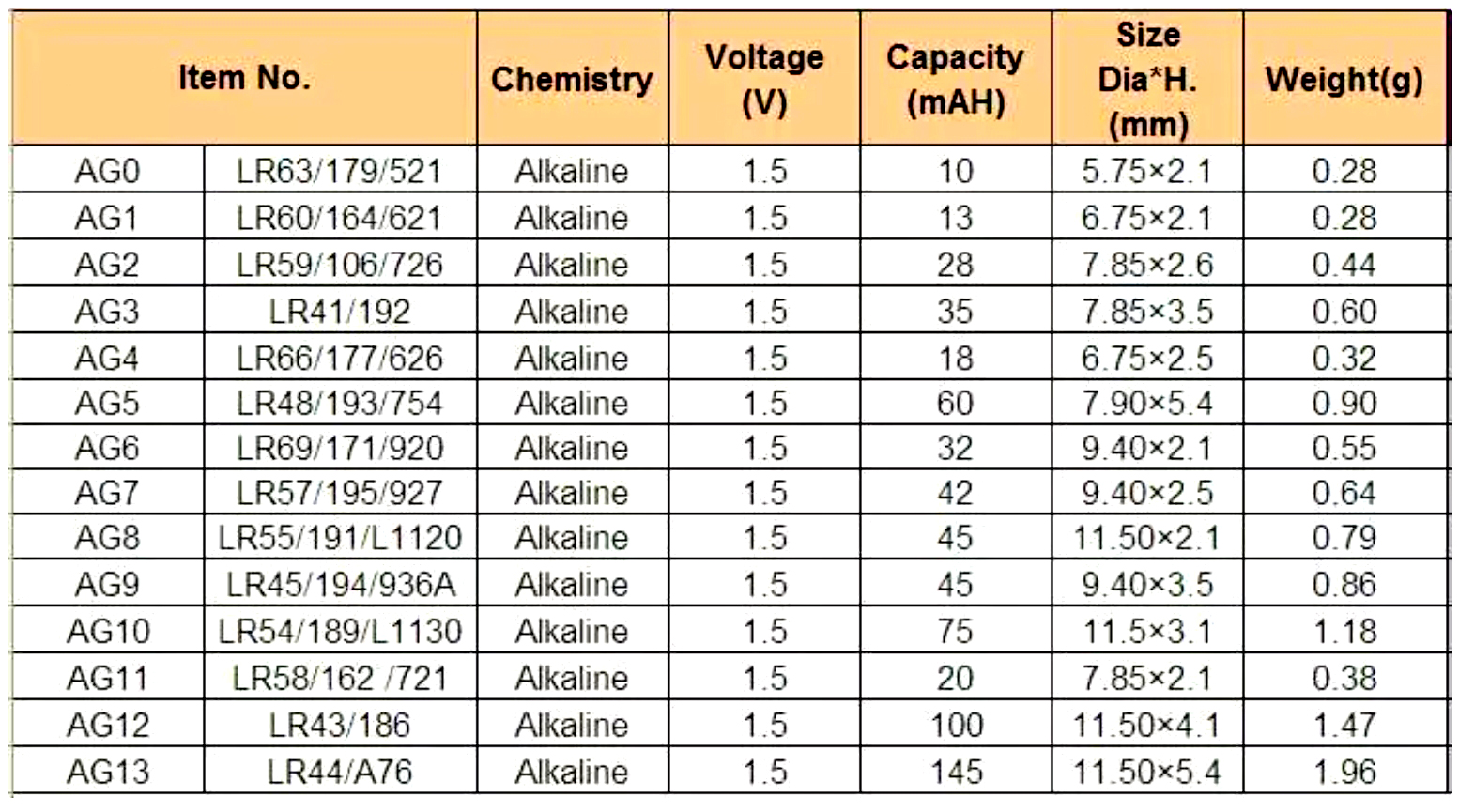

AG10 Watch battery Conversion Chart

How to Choose the Right Replacement for Your AG10 Battery

1. Check the battery size: the replacement battery must match the size of the original battery: 11.6 mm in diameter and 3.1 mm in height. Common battery ag10 equivalent, such as LR1130, SR1130, and L1131, are the same size and can be safely used as Alternatives.

2. Check Battery Chemistry: Refer to the manufacturer's recommended battery type for your device. Different AG10 equivalents may use different chemical compositions or battery composites, which can affect performance and compatibility. For example, alkaline batteries (LR1130), silver oxide batteries (SR1130), and lithium batteries (CR1130) have different characteristics and lifetimes.

3. Consult the device manual or battery compartment: If you are not sure which AG10 replacement to choose, the easiest way is to check the device's manual or battery compartment. Manuals usually list recommended battery models (e.g. AG10, LR1130, SR1130) or provide size and voltage specifications. Many devices also have labels in the battery compartment that indicate the type of battery required, which can help you find a suitable replacement.

4. Use battery cross-reference charts: Battery manufacturers and retailers often provide cross-reference tables that list the equivalent AG10 batteries for each brand. These charts usually show multiple compatible models (e.g. LR1130, A76, SR1130, 357) as substitutes. By comparing specifications, you can easily find suitable alternatives and simplify the selection process.

Where to buy Ag10 battery?

You can buy AG10 batteries from several online stores, including Amazon, eBay, Walmart, and more, and choose from well-known brands such as Duracell, Energizer, Maxell, and Sunbeam. In addition, the watch battery section of Best Buy, CVS, Walgreens, Rite Aid, Lowes, Menards, and other brick-and-mortar stores also offer AG10 batteries, and Dollar Tree and Walmart often sell them. If you need more professional service, Batteries Plus and some watch repair shops also sell them.

Ag10 battery Replacement

1. Before replacing the battery, consult the device manual or check the current battery to confirm that it requires a 1.5V AG10 battery or equivalent (e.g. LR1130, LR54, A76, 389, 189, 10PK Exell EB-L1131).

2. Purchase a replacement AG10 battery from a trusted retailer or supplier. Popular brands include Duracell, Energizer and Maxell.

3. Turn off the device before replacing the AG10 battery to prevent electrical short circuit or damage. This step is critical for security.

4. Open the AG10 battery compartment and use a small screwdriver or a small, flat tool to remove any screws (if needed). Some devices have spring latches on the AG10 battery case that can be opened without tools.

5. Use tweezers or fingers to carefully remove the old AG10 battery, avoiding direct contact with the battery terminal.

6. Place the new AG10 or equivalent battery (e.g. LR1130, A76, 189) in the battery compartment, ensuring that the positive electrode (marked with "+") faces up and is aligned with the device polarity.

7. After placing the new battery, close the AG10 battery case and secure it with a screw or cover.

8. Turn on the power supply of the device and verify that the newly installed AG10 button battery works normally.

9. In order to protect the environment, be sure to dispose of old batteries properly. Many electronics stores or recycling centers offer battery recycling services. Please send your used AG10 battery to safe disposal.

Frequently Asked Questions

1. What type of battery is ag10?

Ag10 1.5v button cell alkaline battery.

2. Is Ag10 battery the same as LR44?

Although the AG10 and LR44 batteries have the same voltage (1.5V), they cannot be used interchangeably due to their different sizes and capacities. The AG10 is thinner (3.05mm), while the LR44 is thicker (5.4mm).

3. Are AG10 batteries rechargeable?

No, the AG10 is a one-time non-rechargeable alkaline button battery, and if you try to charge it, it may leak, expand, or even rupture or explosion, causing safety hazards. If you need a rechargeable button battery, consider looking for a rechargeable version, such as the LIR1130.

4. What is the battery number for a Ag10?

The AG10 battery is equivalent to LR1130, LR54, 189, and G10A

5. What battery will substitute for an Ag10 for calculator?

Button cell battery LR1130.

6. How can I ensure the AG10 replacement works for my device?

Check the device's manual for recommended battery sizes and specifications. If you're unsure, consult with the manufacturer or check compatibility charts available online.

7. What is the difference between AG10 and AG13 batteries?

AG10 and AG13 are both 1.5V alkaline button cells, but the AG13 has a higher capacity and is slightly larger. They may be interchangeable in some devices, but always check compatibility before substituting to ensure proper performance.

8. Is the AG10 battery the same as the LR1130?

Yes, the AG10 is also known as the LR1130.

9. Can I use an AG10 battery for my hearing aid?

Yes, AG10 is commonly used in some hearing AIDS. However, it is best to check the manufacturer's recommendations before replacing the battery.

10. Shelf life and service life of AG10 battery

The shelf life of AG10 batteries is usually 3-5 years, and the service life is generally 1-3 years, depending on storage conditions and use.

11. How do I know which battery can replace the AG10?

Common alternatives to the AG10 include LR1130, 389, A76, and LR54 batteries.

12. Are 2 ag10 batteries equivalent to 1 lr44?

No, AG10 and LR44 batteries are not equivalent.

13.Are rayovac 357 303 batteries and ag10 batteries interchangeable?

Not interchangeable. Due to voltage and capacity differences.
