Design and Implementation of a Constant Current Circuit with Wide Voltage Input

In the rapid advancement of industrial intelligence today, embedded systems have increasingly stringent and diverse requirements for power supplies. As the input voltage range expands and the precision requirements for output current increase, constant current circuits become crucial. These circuits ensure stable output current under various voltage input conditions, serving as the foundation for the reliable operation of devices. Here is an in-depth discussion of several common types of constant current source circuits and their working principles.

Basic Principles of Constant Current Source Circuits

Steady current source circuits basically comprise of a flag source and a Voltage-Controlled Current Source (VCCS). The flag source ordinarily utilizes Coordinate Computerized Union (DDS) innovation, extricating sinusoidal wave information from EPROM, and creating a steady sinusoidal flag through digital-to-analog transformation and sifting. The center of a steady current steady voltage control supply lies within the coordination of two key control units:
1. Voltage Direction Unit:This unit keeps up the solidness of the yield voltage, guaranteeing that the yield voltage does not alter altogether with stack varieties.
2. Current Regulation Unit: This unit is responsible for maintaining a constant output current. The collaboration of these two units ensures the stability and reliability of the power supply output.

Common Types of Constant Current Source Circuits

1. Zener Diode Constant Current Circuit
The Zener diode steady current circuit utilizes the properties of a Zener diode and a transistor to realize consistent current. The Zener diode gives a steady voltage reference, and the transistor alters the yield current based on this reference.  Although this circuit is simple and cost-effective, it is highly sensitive to temperature changes, making it suitable mainly for applications where high current precision is not required.

2. Transistor Constant Current Circuit
The transistor steady current circuit keeps up a steady yield current by altering the base voltage of a transistor. In any case of changes in stack resistance or control supply voltage, the circuit can keep up a steady current yield.  While simple and easy to implement, it is also greatly affected by temperature changes, thus mainly used in applications where precision is not critical.

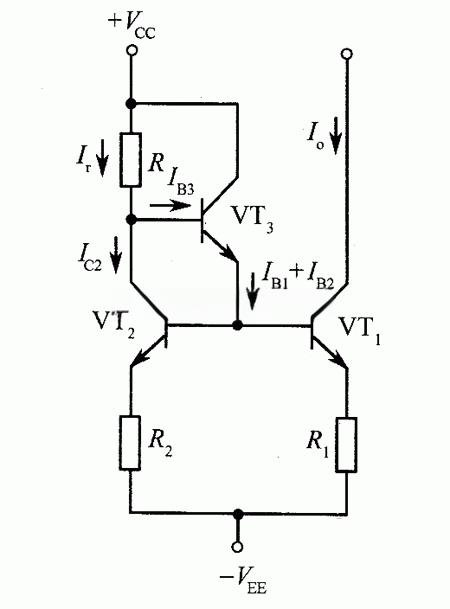

3. Mirror Constant Current Circuit

The mirror constant current circuit employs two identical transistors (e.g., VT0 and VT1) arranged in a specific configuration, creating a mirrored relationship between their collector currents. This circuit structure is simple, easy to integrate, and can provide stable output current, making it a common constant current source design in integrated circuits.

Application of Constant Current Sources in Differential Amplifiers

In differential amplifier circuits, constant current sources can replace traditional emitter resistors, providing more stable quiescent operating current. This not only enhances the common-mode negative feedback effect but also significantly improves the common-mode signal rejection capability of the circuit. The combination of constant current sources and differential amplifiers optimizes circuit design, making it an ideal configuration in many electronic devices.

Micro Constant Current Source Circuit

The micro constant current source circuit is particularly suitable for applications requiring extremely low output currents, such as the input stage of integrated operational amplifiers. By finely adjusting the emitter resistor, precise control of the output current can be achieved, which is especially important for amplification circuits dealing with weak signals. The micro constant current source circuit excels in accuracy and stability, making it the best choice for high-precision applications.

Multi-Channel Constant Current Source Circuit

The multi-channel constant current source circuit can generate multiple different output currents from a single reference current, meeting the diverse needs of complex circuits. This circuit design not only increases the integration level of the circuit but also effectively manages and distributes current, enhancing the overall stability of the system. Multi-channel constant current source circuits are widely used in integrated operational amplifiers, particularly suitable for current distribution in multi-stage amplification circuits.
These constant current source circuits play a critical role in modern electronic devices, ensuring the stability and reliability of equipment under various operating conditions. As technology continues to advance, the design and application of constant current circuits will further optimize, providing robust support for more high-precision and high-reliability applications.
