What is a Relay? Types, Working Principles, and Applications

Relays are essential components in electronic designs and devices, alongside switching circuits. This paper provides an in-depth exploration of relays, covering their structure, types, operating principles, and practical applications in electrical systems.

What Is a Relay?

Table of Contents

• What is a Relay?
• Relay Structure and Key Components
• How Relays Work
• Types of Relays
• Applications of Relays
• How to Choose the Right Relay
• Relay failure symptoms
• How to Test a Relay
• Conclusion
• Frequently Asked Questions

What is a Relay?

A relay is a mechanical or electronic device used to control a circuit or to supervise the low control signals of many circuits. It acts as an intermediary, allowing a small voltage or current to control a large one. The flexibility of relays makes them essential in mechanized frameworks, broadcast communications, automotive applications, and home machines.

Relay Structure and Key Components

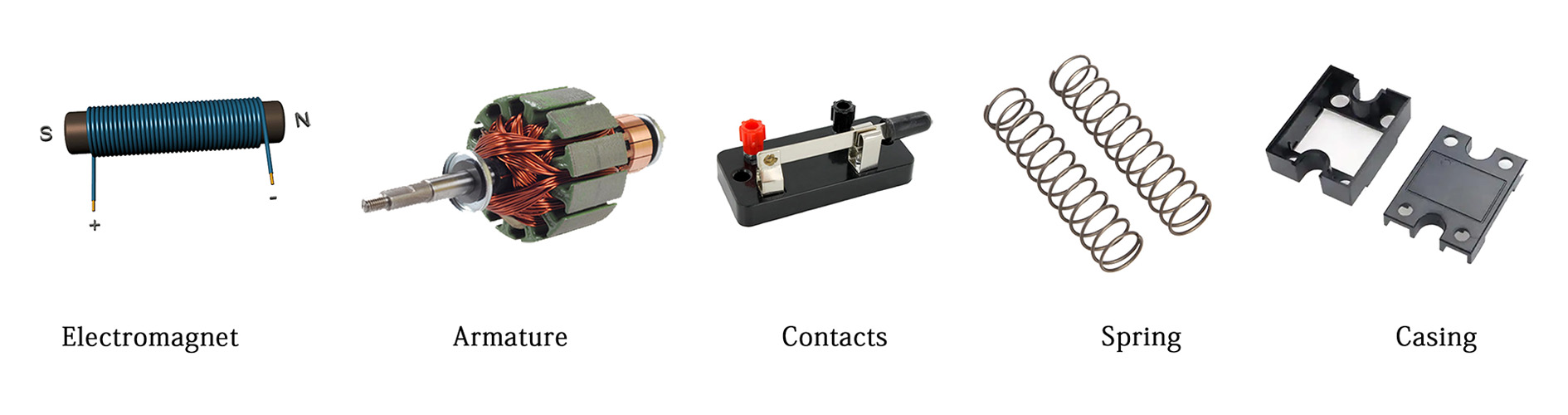

The basic structure of a relay includes several key components:

• Electromagnet: A coil of wire that creates an attractive magnetic field when current streams through it.
• Armature: A moving pressure bar that responds to an attractive magnetic field by opening or closing contacts.
• Contacts: Conductive pieces that open or near the electrical circuit. They can be Ordinarily Open (NO) or Regularly Closed (NC).
• Spring: Returns the armature to its default position when the electromagnet is de-energized.
• Housing: Housing and fixing internal components.

Understanding the structure of a relay is key to understanding its work in different applications.

How Relays Work

Relay operation must comply with electromagnetic standards. As the current flows through the coil of the relay, it creates an attractive magnetic field that attracts the armature. This action moves the armature, which engages or detaches from the contact. In this way, the relay can control the flow of larger currents through different circuits.

Relays can have two types of contacts:

The operation of relay contacts is crucial in determining how the relay works in the circuit. They can be divided into two categories:

• Normally open (NO) contact: Keep the relay open when power is off, close to when power is on, complete the circuit.
• Normally closed (NC) contact: The relay remains closed when power is off and disconnected when power is on, disconnecting the circuit.

The choice between NO and NC contacts depends on the specific requirements of the application.

Types of Relays

There are several types of relays, each serving a different purpose and application:

1. Electromagnetic Relay

Electromagnetic relays are one of the foremost common sorts, which utilize an electromagnet to mechanically work a switch.

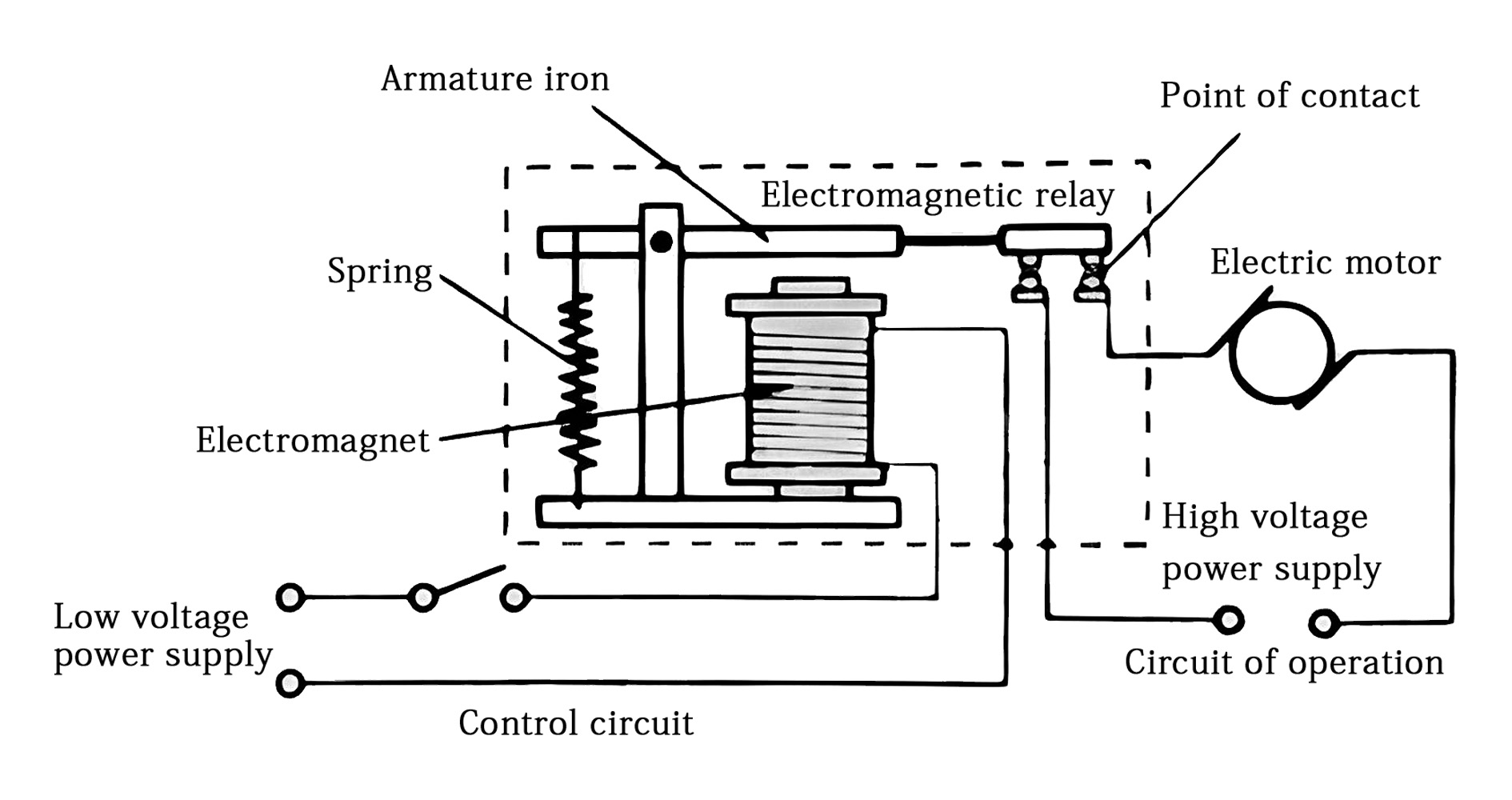

Electromagnetic Relay Circuit

In the electromagnetic relay circuit, when the coil is energized, the resulting attractive field pulls the armature, in this way closing or opening the contacts that comply with the plan. These relays are suitable for applications requiring high voltage and high current handling.

2. Solid State Relay

Solid State Relays (SSRs) utilize semiconductor gadgets to switch on and off without moving parts.

Solid State Relay Circuit

In solid-state relay circuits, input control flags are connected to semiconductor devices, at which point the yield circuit is driven without any mechanical development.

3. Time Delay Relays

A time Delay Relays is an uncommon type of relay that delays the operation of the switch for a predetermined amount of time.

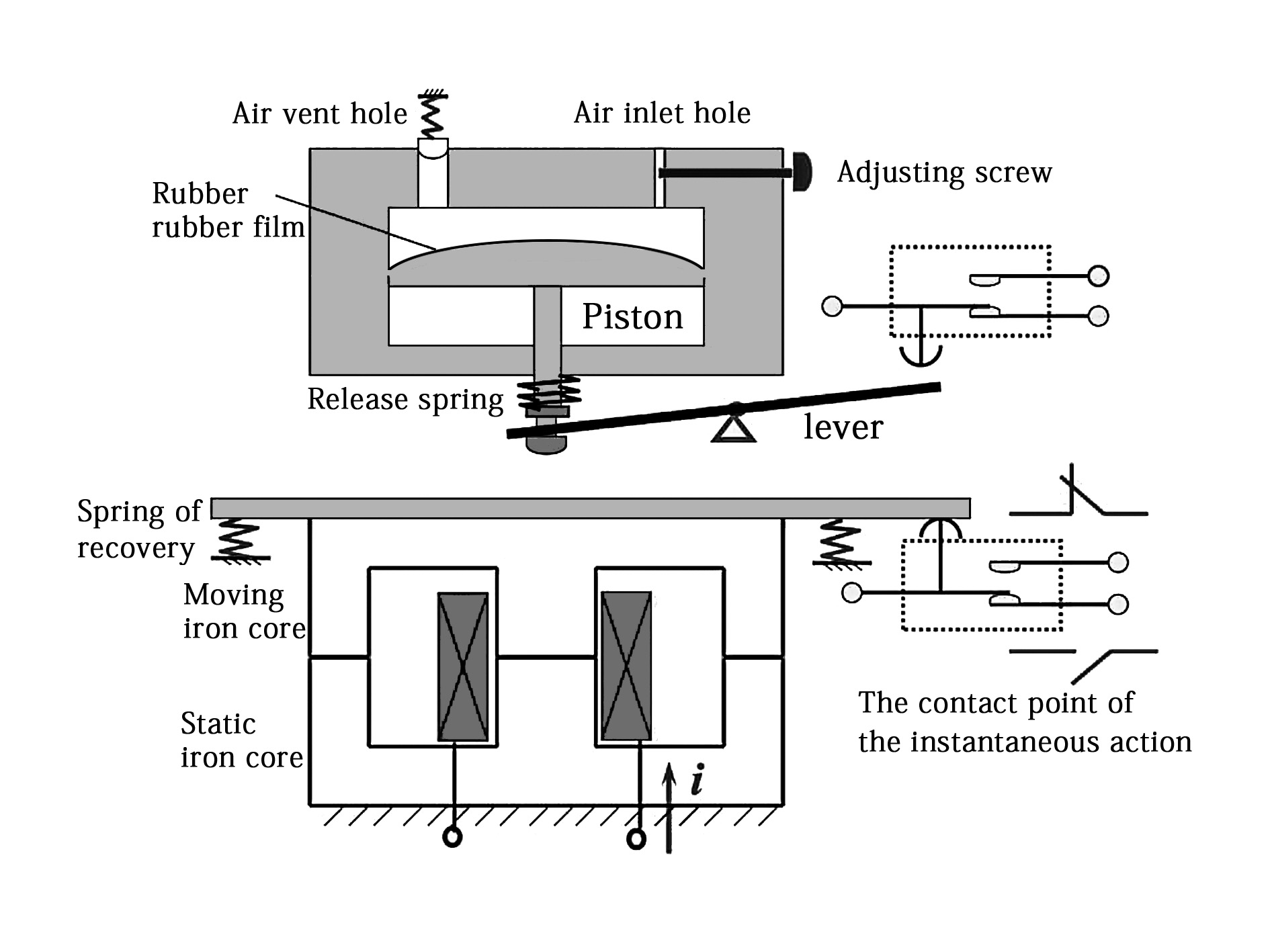

Time Delay Relays Circuit

In a time relay circuit, once the input signal is received, the relay will activate the output after a specific delay. Time relays are commonly used in automation systems to control lights, motors, and other devices at specified time intervals.

Applications of Relays

Since relays can control high-power devices with low-power signals, they are used in different applications for different services. Here are some common uses:

1. Automation Systems

In industrial automation, relays control mechanical and process operations to ensure safety and improve operational efficiency. They help manage the starting and shutting down sequence of heavy machinery.

2. Automotive Applications

Relays play a crucial role in the car frame, controlling different functions such as headlights, starting the engine, and regulating the frame. They enable low-power switches to operate efficiently on high-current devices.

3. Telecommunications

In telecommunications, Repeaters are used in switching systems to manage call routing and data routing. They help establish connections between different communication lines.

4. Home Appliances

Numerous domestic apparatuses, such as washing machines, broilers, and HVAC frameworks, depend on relays to function productively. They control different capacities of these apparatuses and guarantee the comfort and security of clients.

How to Choose the Right Relay

Selecting the appropriate relay is crucial to ensuring safe and efficient operation in your circuits. Here are some key factors to consider:

• Voltage and Current Ratings: Ensure the relay you choose can handle the maximum voltage and current required by your application. For example, automotive relays typically handle up to 30A, while low-power relays in electronics may only need to handle a few milliamps.
• Type of Load: The type of load (resistive, inductive, or capacitive) can affect relay performance. Inductive loads (such as motors) may require relays with specific contact ratings to handle the surge currents when they are turned on and off.
• Coil Voltage: Choose a relay with a coil voltage that matches your control signal. For example, in a 12V automotive circuit, a 12V relay would be appropriate.
• Contact Configuration: Depending on your needs, select relays with the appropriate contact configuration. Common types include NO (Normally Open) and NC (Normally Closed), depending on whether you want the circuit to be closed or open when the relay is in its default state.
• Size and Mounting: Ensure the relay fits in your designated space and that it can be mounted correctly in your system (PCB-mounted, socket-mounted, or panel-mounted).

Relay failure symptoms

Relays can sometimes fail due to various reasons. Here are some common issues and their solutions:

• Buzzing or Clicking Sounds: If a relay is buzzing or clicking, it could be a sign of insufficient current to hold the armature in place, or it is due to a dirty or worn-out contact. Check the coil voltage and inspect the contacts for wear.
• Contacts Not Switching Properly: This could be caused by faulty or worn-out contacts. Clean the contacts using a contact cleaner or replace the relay if necessary.
• Sticking Contacts: If the contacts are sticking, it could be due to oxidation or debris. A multimeter can be used to check the resistance and ensure the contacts are opening and closing correctly.
• Relay Not Switching: If the relay fails to switch on or off, check the coil resistance using a multimeter to ensure the coil is intact. Also, verify that the control voltage is correct and within specifications.

How to Test a Relay

Understanding how to test relays is fundamental to research and support relays. Here's a simple strategy for testing the relay:

1. Visual inspection: Check for physical damage or wear.
2. Advanced test: use the multimeter to confirm that no contact is opened and NC contact is closed when the relay is powered off.
3. Coil resistance Test: The resistance of the coil is measured to identify any open or short circuit.
4. Operation test: Apply the evaluated voltage to the coil and observe whether the contacts switch as expected.

Normal testing and maintenance can extend the service life of the relay and ensure reliable operation.

Conclusion

Relays are important components in electrical and electronic frameworks that provide flexibility and control in a wide range of applications. Knowledge of their structure, classification, and working criteria can provide assistance in selecting the right relay for a specific need. The importance of relays, from mechanization of machinery to household devices, plays a key role in modern technology.

Frequently Asked Questions

How to identify a relay?

Relays are typically box-shaped with labeled coil and contact pins like COM, NO, and NC. Check for voltage and current ratings printed on the relay. Part numbers can be cross-referenced with datasheets for detailed specs.

How to connect a relay in a circuit?

Connect the control signal to the coil pins. Attach the load to the common (COM) pin and either the Normally Open (NO) or Normally Closed (NC) pin, depending on the default load state. Ensure the relay ratings match your circuit requirements.

Relays Price

Relay costs vary by type, part, and manufacturer. Electromechanical relays are usually cheaper, while solid-state and timer relays cost more due to advanced features. Choose based on application needs and budget.

How to replace starter relay

Disconnect the battery, remove the old relay, install the new one, reconnect the battery, and test it.

How does a relay work in a car

An automotive relay uses a small electrical signal to control larger currents, activating high-power components like the starter, headlights, or fuel pump safely and efficiently.

What do relays do in a circuit

Relays control the flow of electricity in a circuit by using a small electrical signal to open or close larger current-carrying contacts, allowing low-power circuits to switch high-power devices safely.
