TMC2208 Arduino and Trinamic Stepper Motor Driver Guide

Stepper engine drivers have come a long way in later a long time, with progressed innovations advertising smoother, calmer, and more proficient movement control. One of the prevalent choices for specialists and experts alike is the TMC2208 stepper engine driver, known for its calm operation and microstepping capacities. This direct will take you through everything you would like to know around utilizing the TMC2208 with Arduino, comparing it with the TMC2209, and making a difference you make the correct choice for your ventures.

Stepper Motors and Arduino - The Ultimate Guide

Table of Contents

• What is the TMC2208?
• TMC2208 Pinout and Connections
• TMC2208 Datasheet
• TMC2208 CAD Model
• Connecting TMC2208 to Arduino:
• TMC2208 vs TMC2209
• Practical Use Cases for the TMC2208
• Using TMC2209 Drivers with ESP32
• MKS TMC2209 Drivers
• Optimizing the Driver TMC2208
• Block Diagram of TMC220X/TMC222X Series Stepper Motor Drivers
• TMC2208 Package
• Conclusion
• Commonly Asked Questions

What is the TMC2208?

The TMC2208 is a stepper engine driver created by Trinamic, a company eminent for its high-performance engine drivers. The TMC2208 offers progressed highlights like StealthChop2 innovation, which guarantees near-silent engine operation, and SpreadCycle, which gives smoother developments at tall speeds.

This driver is fundamentally utilized for 3D printers, CNC machines, and other movement control ventures where exactness and moo clamor are basic. When compared to traditional drivers, the TMC2208 reduces noise levels significantly, making it a preferred choice for quieter environments.

TMC2208 Pinout and Connections

Some time recently bouncing into wiring your Arduino to the TMC2208 driver, it's significant to get it the pinout. The TMC2208 pinout is direct, but disgraceful associations can lead to glitches or indeed harm to the driver and your components.

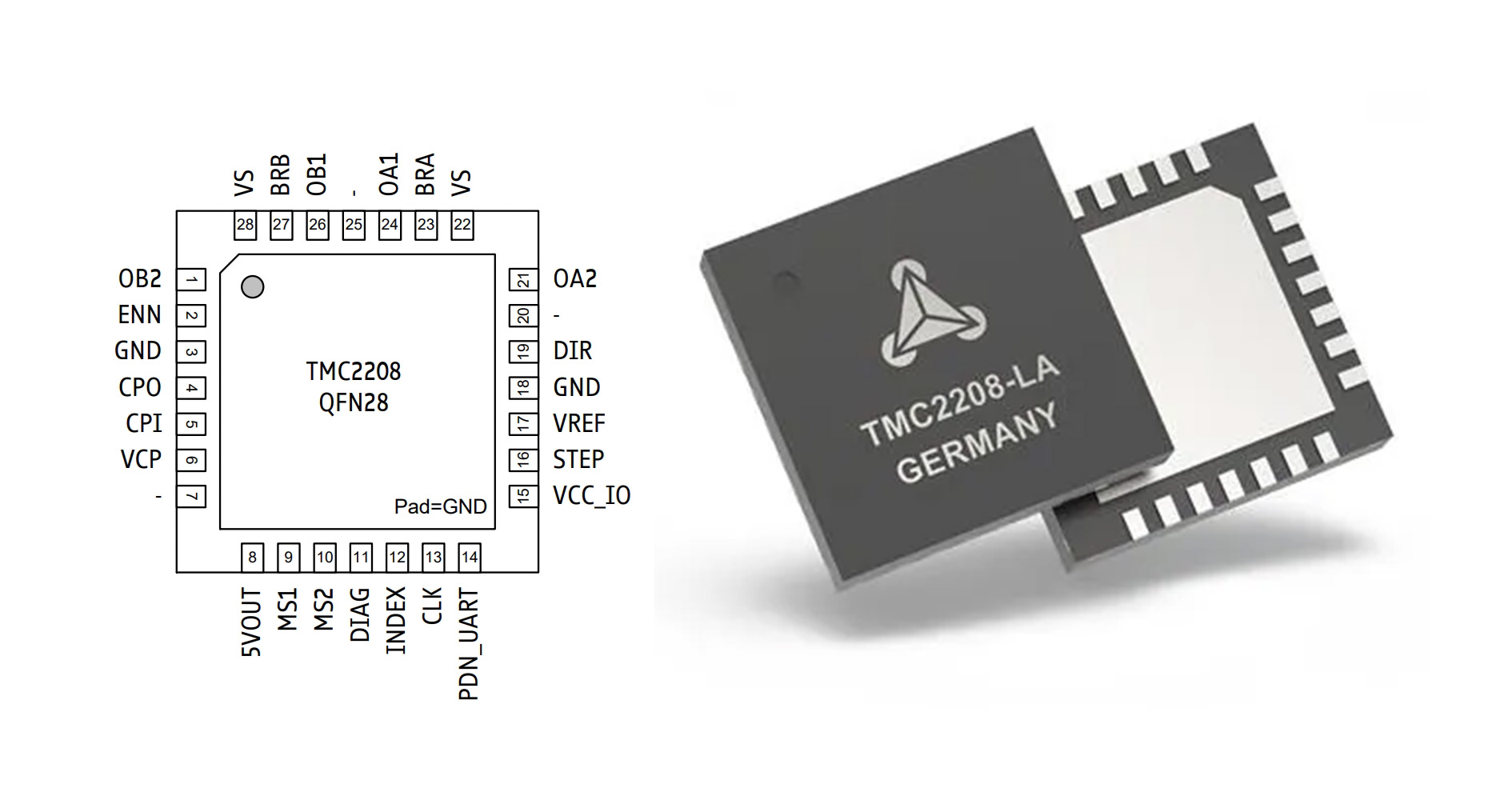

Pinout Breakdown:

TMC2208 Datasheet

For detailed technical specifications and a deeper understanding of the TMC2208 stepper motor driver, you can refer to the official datasheet here.

TMC2208 CAD Model

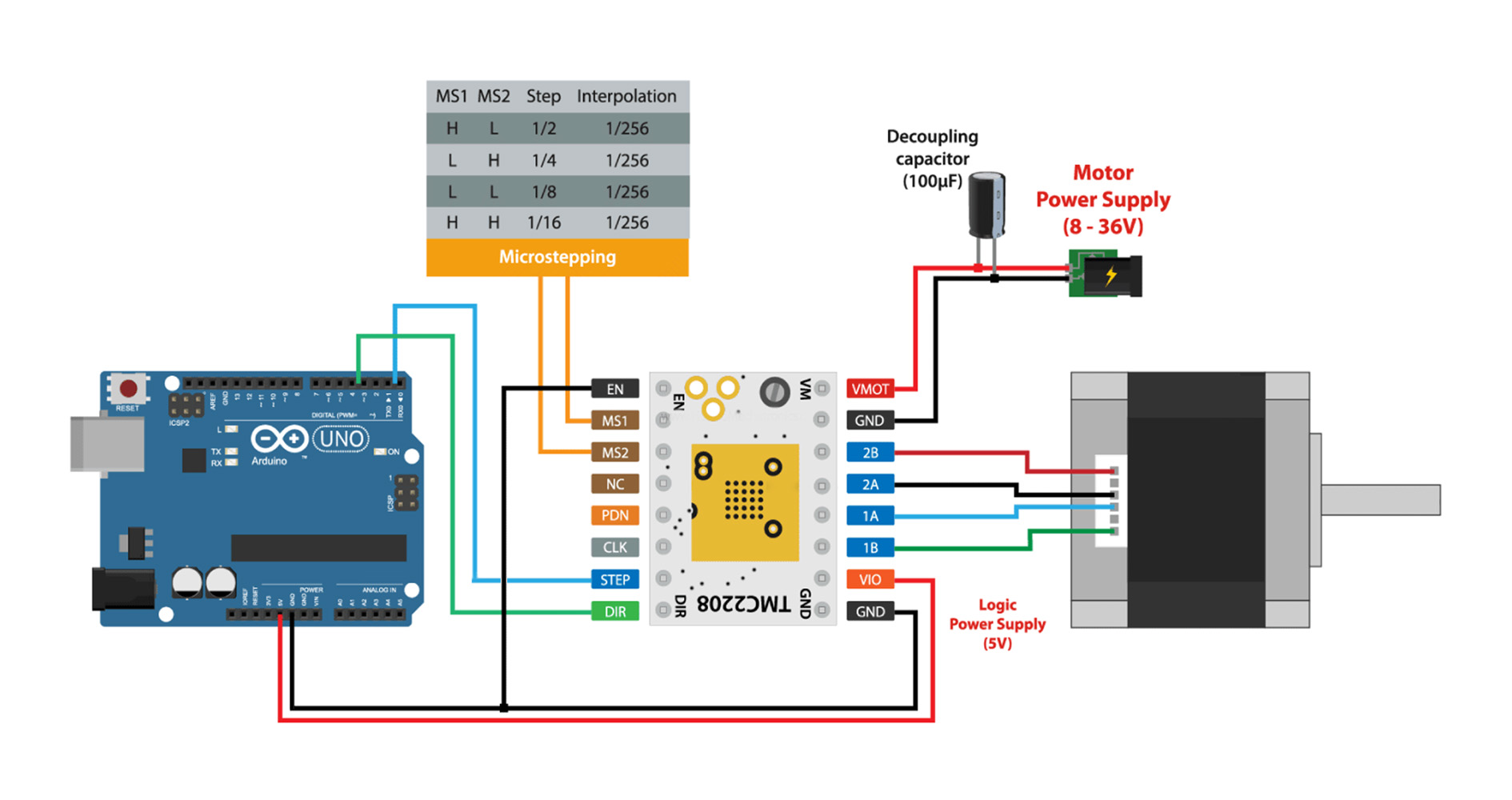

Connecting TMC2208 to Arduino:

Connect VM and GND to the motor power supply.

Connect the STEP and DIR pins to the corresponding Arduino pins for motor control.

Optionally, connect the EN pin to control when the driver is enabled or disabled.

For UART control, connect the TX and RX pins to Arduino pins capable of UART communication.

Power Requirements

Guarantee that you just are employing a reasonable control supply. The TMC2208 is congruous with engine voltages between 8 and 36 volts. Continuously double-check the details of your engine to dodge harming the driver.

Configuring the TMC2208

While the TMC2208 can work in standalone mode, connecting it to the UART pins allows you to configure it more deeply. The driver can be set up for features like current limiting, microstepping, and advanced diagnostics using software commands.

You can use libraries like TMCStepper in Arduino to communicate with the TMC2208 via UART. This includes adaptability to your extend, permitting you to alter parameters on the fly and optimize execution for particular engines and errands.

TMC2208 vs TMC2209

The TMC2208 is frequently compared to the TMC2209 driver, another prevalent stepper engine driver from Trinamic. Whereas both drivers offer comparative highlights, there are a few key contrasts worth noticing:

Practical Use Cases for the TMC2208

The TMC2208 is widely used in various applications, including:

3D Printing

One of the foremost prevalent employments of the TMC2208 stepper motor driver board is in 3D printers, where it makes a difference diminish the clamor made by stepper motors amid operation. Usually particularly vital for clients who incline toward a calmer workspace.

CNC Machines

CNC machines require precision and smooth movement. The TMC2208's capacity to handle microstepping and diminish clamor makes it an perfect choice for specialist and light mechanical CNC applications.

Robotics

When building robots, decreasing clamor and controlling engine smoothness is vital for accomplishing accuracy developments. The TMC2208's highlights make it a go-to driver for numerous mechanical technology applications, particularly in domestic or research facility situations where commotion may be a concern.

Using TMC2209 Drivers with ESP32

In case you're working with the ESP32 and need to use the TMC2209 for movement control, the method is comparative to utilizing it with an Arduino. The ESP32 TMC2209 combination offers a few points of interest, counting the capacity to utilize WiFi and Bluetooth nearby exact engine control.

The ESP32 can communicate with the TMC2209 by means of UART, permitting you to get to progressed highlights like slow down discovery and alter engine parameters on the fly. With its built-in remote capabilities, the ESP32-TMC2209 setup is perfect for applications that require farther control or checking.

MKS TMC2209 Drivers

Another popular variant of the TMC2209 is the MKS TMC2209, which could be a stepper driver board planned for 3D printers and CNC machines. MKS, or Makerbase, produces a range of TMC drivers with additional features such as silent operation and easy integration into custom setups.

The MKS TMC2209 drivers offer all the features of the standard TMC2209 but come on a board designed to be a drop-in replacement for existing 3D printer drivers. This makes upgrading from older drivers a straightforward process.

Optimizing the Driver TMC2208

The driver TMC2208 can be optimized for performance by adjusting its parameters through the UART interface. For example, you can:

Adjust current limits to prevent motor overheating.

Enable microstepping to improve precision.

Switch between StealthChop for silent operation and SpreadCycle for high-speed, smooth movement.

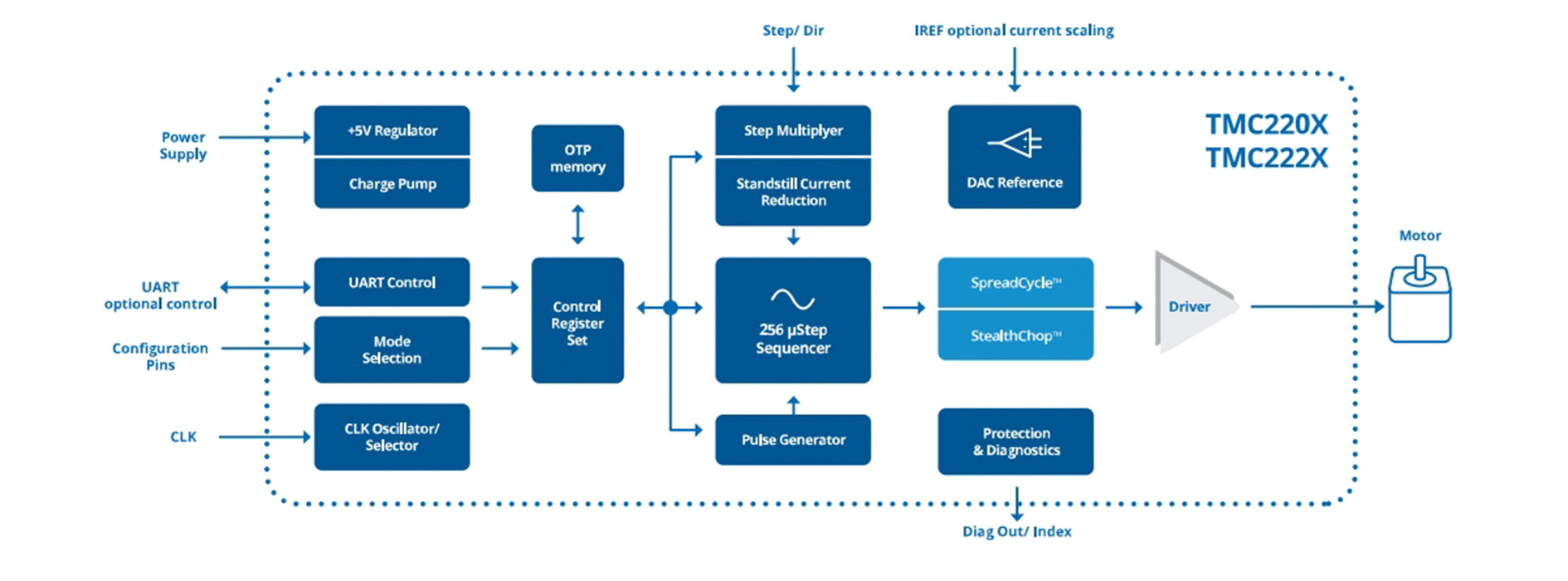

Block Diagram of TMC220X/TMC222X Series Stepper Motor Drivers

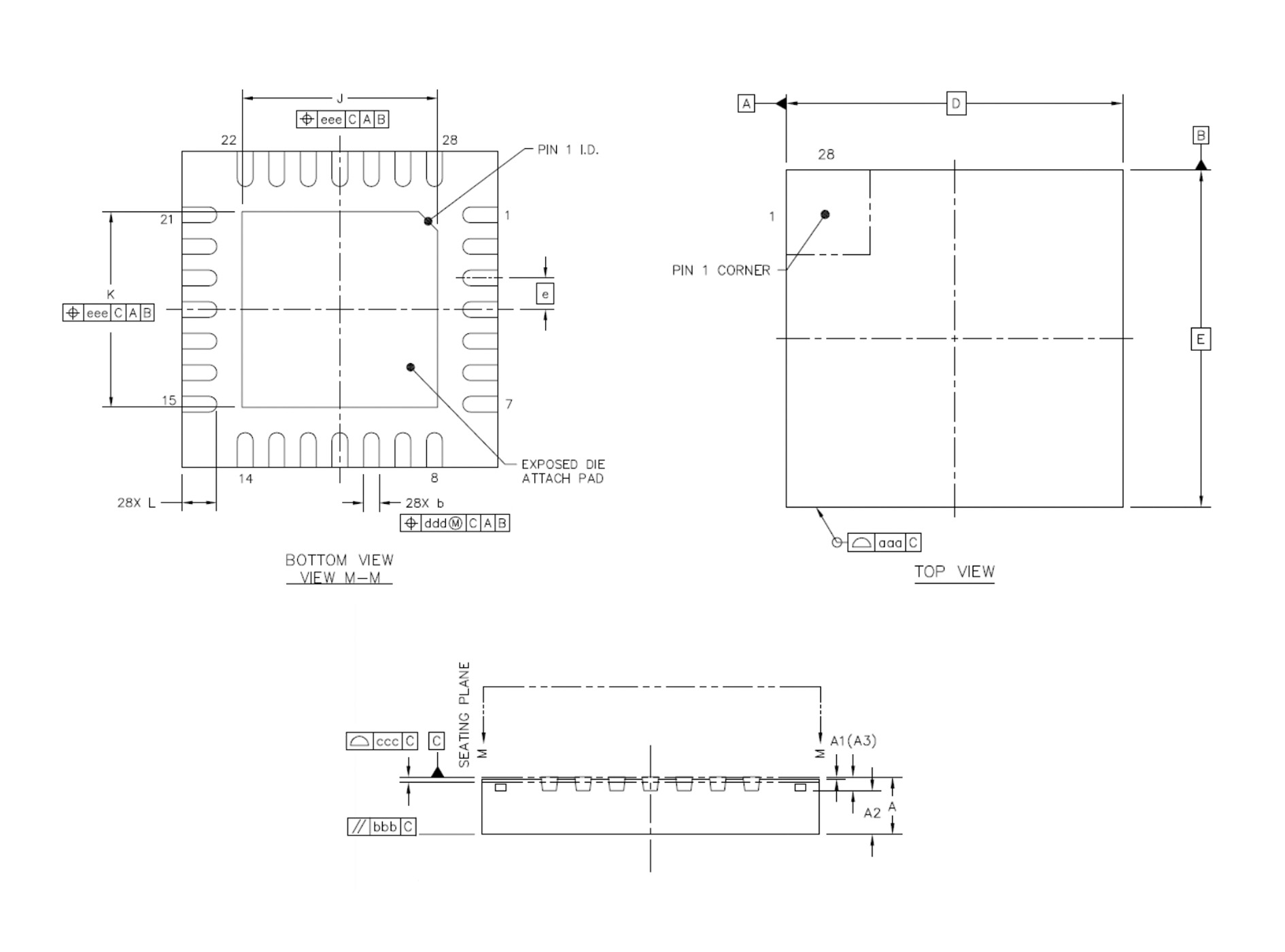

TMC2208 Package

Conclusion

The TMC2208 and TMC2209 are both amazing stepper engine drivers, advertising tall execution for a extend of movement control applications. Whether you're building a 3D printer, CNC machine, or a automated extend, these drivers give smooth, noiseless operation with the capacity to fine-tune engine execution.

Whereas the TMC2209 offers extra highlights like slow down location and more strong UART communication, the TMC2208 driver remains a prevalent choice due to its lower fetched and straightforwardness.

In the event that you're searching for the another step up in performance and functionality, investigating the driver TMC2209 could be the proper choice. Moreover, combining the ESP32 TMC2209 drivers opens up even more possibilities for wireless control and advanced diagnostics.

Commonly Asked Questions

Why "TMC2208 Arduino" is popular?

It's trending due to increasing interest in quiet, efficient motor control for 3D printers, CNC machines, and robotics, where TMC2208 paired with Arduino offers easy integration.

What projects boost Trinamic drivers' search?

3D printing, robotics, and CNC machines, especially for quieter, precise operation, are driving searches for Trinamic drivers like the TMC2208.

How does TMC2208 compare to others?

Compared to A4988 and DRV8825, the TMC2208 offers quieter, smoother performance, making it a popular upgrade for precision projects.

Why is UART communication searched?

UART allows flexible real-time configuration, making it essential for advanced users who need dynamic motor control with Arduino.

Why are stepper driver guides searched?

Users need step-by-step help configuring advanced features like StealthChop and microstepping, especially for complex projects like 3D printing.
