Exploring the System Design of MCU Programmable Power Supplies: From Theory to Practice

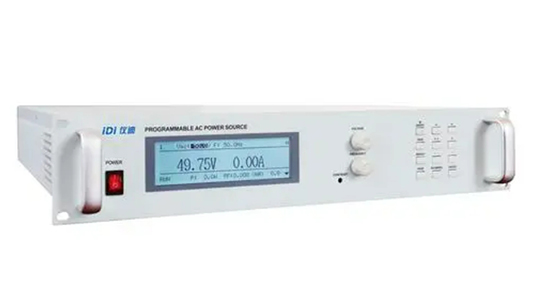

A digital programmable variable frequency power supply is a power supply device that adjusts the output voltage and frequency according to user needs. Such devices are widely used in industrial production and scientific research environments. There are a few important things to consider when using these devices in order to guarantee the equipment's dependability and safety. Next, this article will analyze and discuss these matters in detail.


Before using a digital programmable variable frequency power supply, first ensure that the input power connected to the device meets the rated voltage requirements. Before connecting the power, you should read the device manual carefully to confirm the voltage range. The gadget may be damaged or operate unstablely if the input voltage rises or falls outside of the designated range. In addition, ensuring good grounding can improve the safety of equipment operation.

Secondly, it is also crucial to understand and master the output performance and limitations of the digital programmable variable frequency power supply. According to the output current and voltage range specified by the device, ensure that the connected load does not exceed its tolerance. Exceeding the limit may cause overload damage to the device. At the same time, pay attention to the power factor of the power supply to avoid overload conditions.

Further, reasonably setting and adjusting device parameters is another key step in using a digital programmable variable frequency power supply. Before enabling, proper device configuration and calibration should be performed, such as setting the output current and voltage according to requirements. By adjusting the parameters, the output frequency and waveform can be changed according to the specific application requirements.

During the use of the equipment, the working condition of the digital programmable variable frequency power supply should be monitored at any time. Through the monitoring instrument, the output current, voltage, power factor, etc. of the power supply can be tracked in real time. In case of abnormal conditions, such as overload or high temperature, repairs or shutdown maintenance should be carried out immediately. To guarantee the equipment operates steadily, regular maintenance is essential.

Finally, special attention should be paid to safety when operating the digital programmable variable frequency power supply. Avoid using metal tools to touch internal components to prevent electric shock. In addition, avoid using the power supply in high temperature, high humidity or flammable environments to prevent equipment damage or fire. It is imperative that you adhere to all applicable safety requirements and standards when maintaining the equipment.

The fundamental idea behind a programmable power supply is to adjust the power supply's output voltage and current to the demands of the user. Usually included are a power module, a voltage measuring module, a current measurement module, and a control module. The power module is the core, and programmable output can be achieved by adjusting the output voltage and current. Analog-to-digital converters are frequently used by the voltage and current measurement modules to transform analog signals into digital signals that the microcontroller can process.

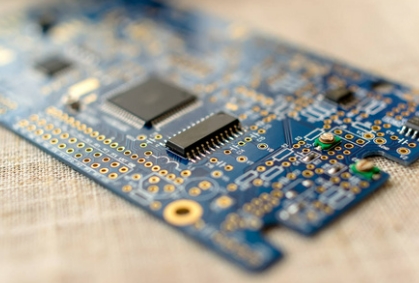

The application of MCU in programmable power supply includes selecting the appropriate MCU to meet the performance requirements, designing power control algorithms such as PID control, fuzzy control, etc., performing data acquisition and processing, and implementing user interface and parameter settings. In addition, the MCU is also responsible for implementing various protection mechanisms such as overcurrent, overvoltage and overheating protection to ensure the safety of power supply and load.

The key points of programmable power supply system design include ensuring stability and response speed, improving precision and accuracy, considering the scalability and flexibility of the system, and co-designing software and hardware. In addition, reasonable fault diagnosis and maintenance mechanisms are also indispensable. Good system design and operation practices are the key to ensuring the safe and reliable operation of digital programmable variable frequency power supply.

By strictly following the above precautions and making full use of the role of MCU in the system, the performance and stability of the equipment can be maximized. Therefore, when designing and using digital programmable variable frequency power supply, it is important to be cautious about every detail to ensure that the equipment can effectively meet user needs while ensuring the safety of the working environment and operators.
