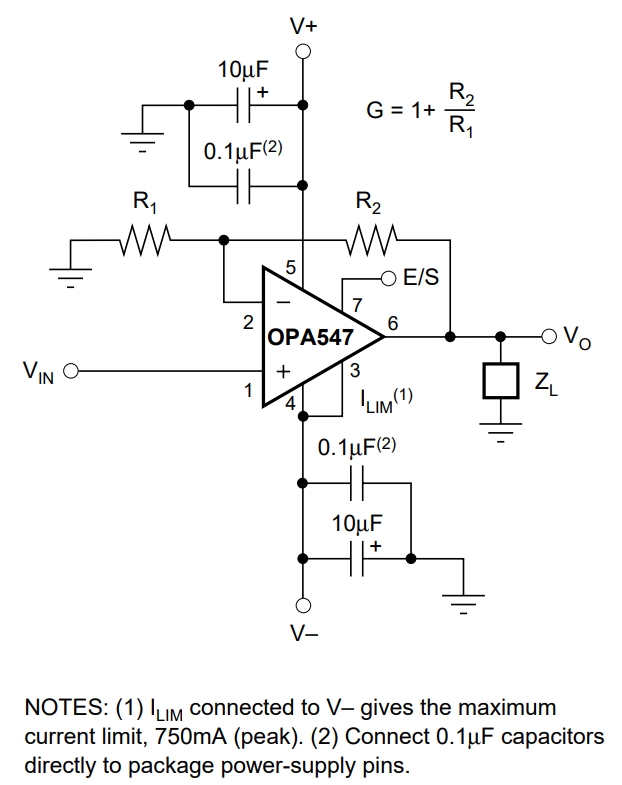

OPA547F/500G3 Typical application Circuitry

An operational amplifier (op-amp) with high voltage and high current that can drive a variety of loads is the OPA547F/500G3. It is characterized by its ability to operate with high supply voltages, deliver substantial output current, and its built-in over temperature and current limit protection features. This makes it an ideal choice for applications such as motor control, power supplies, and driving actuators or power transducers.

Key Features of OPA547F/500G3:

- High-Voltage Operation: Suitable for applications requiring higher supply voltages.

- High-Current Output: Capable of driving heavy loads.

- Over temperature Protection: Ensures safe operation by preventing overheating.

- Current Limit Protection: Protects the op-amp and the load from excessive current.

Application Scenario - Motor Control Circuit:

A practical application for the OPA547F/500G3 is in a motor control circuit, commonly used in industrial automation, robotics, and high-performance actuators.

Circuit Design Details:

1. Power Supply Connections: Connect the positive supply voltage (V+) to pin 7 and the negative supply voltage (V-) to pin 4. The OPA547F/500G3 can handle a wide range of supply voltages, allowing for flexibility in motor control applications.

2. Motor Control Signal Input: Attach the motor control signal to the non-inverting input (pin 3) of the OPA547F/500G3.

3. Gain Setting: To adjust the gain, put a resistor (R1) in series with the output (pin 6) and the inverted input (pin 2). The input impedance is set by an additional resistor (R2) that runs from the inverting input to the ground.

4. Output to Motor: Connect the output (pin 6) to a motor or an actuator.

5. Bypass Capacitors: To reduce noise and stabilize the voltage supply, place bypass capacitors close to the pins of the power supply.

6. Heat Sink Mounting: Attach a heat sink to the OPA547F/500G3 to manage the heat dissipation effectively.

Considering the Design using OPA547F/500G3:

- Appropriate Power Source: Select a power source that can provide your motor the voltage and current it needs.

- Thermal Management: Use a heat sink to prevent overheating, especially important in high-power applications.

- Protection Features: For safer operation, make use of the integrated current restriction and excessive temperature protection.

- PCB Layout: Design the PCB to accommodate high current paths and minimize electrical noise, crucial in motor control applications using OPA547F/500G3.

In summary, the OPA547F/500G3 operational amplifier is highly suitable for motor control circuits where high supply voltage, substantial output current, and robust protection features are required. Designing circuits with the OPA547F/500G3 should focus on an appropriate power supply, effective thermal management, leveraging the built-in protection features, and a well-designed PCB layout to fully harness the capabilities of this high-power amplifier.
