Innovative Applications of Micropower Instrumentation Amplifiers in Industrial Automation

In different mechanical mechanization applications, the 4-20 mA loop-powered framework is broadly utilized in different mechanical prepare control frameworks due to its unwavering quality, long-distance transmission capability, and predominant control and information synchronous transmission characteristics. In later a long time, the fast advancement of low-power innovation has brought expanding consideration to configurable 4-20 mA loop-powered transmitters/receivers based on low-power instrumented enhancers. This article points to present the working guideline, plan highlights, application points of interest, and viable application cases of this innovation.

Technical Principles and Design Features

The core components of configurable transmitters/receivers are low-power instrumentation amplifiers, such as AD8420, AD627, and AD8236. These intensifiers are not as it were known for their low-power characteristics but moreover give exceedingly adaptable input and yield capabilities, making them especially reasonable for low-power and high-precision mechanical application situations.

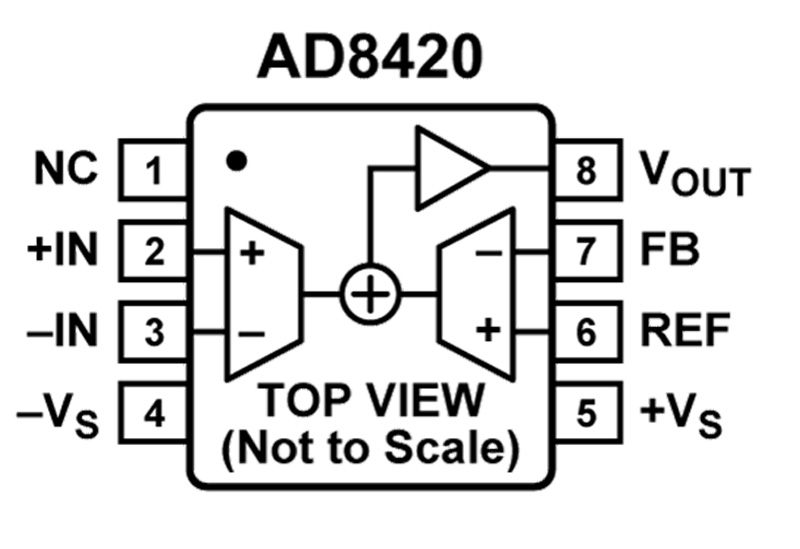

AD8420

The AD8420 is an instrumented intensifier based on an circuitous current criticism engineering, with rail-to-rail yield voltage swing free of the input common-mode voltage. This allows it to easily amplify signals close to ground potential without requiring dual power supplies, which is significant in many industrial applications. Additionally, the gain of the AD8420 can be set via two external resistors, ranging from 1 to 1000, providing great flexibility for different application scenarios.

AD627

As another low-power instrumentation amplifier, the AD627 offers excellent flexibility and low-power characteristics. It can be powered by a single or dual power supply (+2.2 V to ±18 V) with a maximum power consumption of only 85 μA. The gain of the AD627 can also be flexibly set via an external resistor, ranging from 5 to 1000, suitable for various high-precision signal amplification scenarios.

Application Advantages

The application of low-power instrumentation amplifiers endows the entire transmitter/receiver system with extremely low power consumption performance, particularly suitable for battery-powered and loop-powered scenarios with stringent power consumption requirements. These devices, through precise circuit design and high-precision resistor networks, achieve high-precision performance with a total error of less than 1%. Additionally, the high flexibility of the design allows the same hardware platform to simultaneously meet the different needs of transmitters and receivers, effectively reducing inventory pressure.

Practical Application Cases

In the field of industrial process control, configurable 4-20 mA loop-powered transmitters/receivers have been widely used in pressure measurement, temperature control, flow monitoring, and other scenarios. Taking pressure measurement as an example, the sensor converts the pressure signal into resistance changes, which, after being processed by a bridge circuit and an instrumentation amplifier, outputs a 4-20 mA current signal to the control system.

Transmitter Configuration

In the transmitter configuration mode, such devices can handle input voltages ranging from 0 V to 5 V or 0 V to 10 V and convert them into a 4-20 mA current output through internal precision circuits. Taking the AD8420 as an example, the input voltage is converted into a differential voltage signal (within ±1 V) that the AD8420 can process by adjusting the resistor network. Subsequently, the AD8420's indirect current feedback architecture converts this differential signal into a corresponding current output, which is finally converted into a 4-20 mA loop current through a sensing resistor (e.g., 50 Ω). The entire circuit's power consumption is about 1 mA, making it particularly suitable for loop-powered application scenarios.

Receiver Configuration

In the receiver configuration, such devices can convert a 4-20 mA current input into a voltage output. The output voltage range can be adjusted to 0.2 V to 2.3 V or 0.2 V to 4.8 V as needed to be compatible with ADCs using a 2.5 V or 5 V reference voltage source. The high impedance reference voltage pin of instrumentation amplifiers like the AD8420 does not require additional operational amplifier drive, reducing the receiver circuit's power consumption, cost, and space requirements.

Future Outlook

With the advance advancement of low-power innovation and the ceaseless decrease of costs, configurable 4-20 mA loop-powered transmitters/receivers based on low-power instrumented speakers will be connected in more mechanical areas. Within the future, gadgets will gotten to be more shrewdly, coordinates, and secluded to meet the developing request for mechanical control. In the mean time, as remote transmission innovation develops, remote adaptations of 4-20 mA loop-powered transmitters/receivers will slowly enter the advertise, bringing more comfort to the field of mechanical control.

The over investigation appears that the application of low-power instrumented enhancers makes configurable 4-20 mA loop-powered transmitters/receivers display extraordinary potential and advertise prospects within the field of mechanical control. These gadgets, with their moo control utilization, tall exactness, adaptability, and unwavering quality, will play a more imperative role in mechanical mechanization within the future.
