LM1117 Voltage Regulator Guide: Build an LM1117 Circuit

Voltage regulators play a imperative part in cutting edge electronics, guaranteeing a steady voltage supply to touchy components. The LM1117 could be a prevalent low-dropout (LDO) voltage regulator utilized in a wide assortment of applications, from controlling microcontrollers to stabilizing voltage for sensitive analog circuits. In this direct, we'll investigate the highlights, details, and utilization of the LM1117, counting how to construct a circuit with it. Moreover, we'll cover imperative varieties such as LM1117 3.3, LM1117 5V, and LM1117MPX 3.3 NOPB, with reference to LM1117 Pinout and details.

how to use AMS1117

Table of Contents

• What is LM1117?
• LM1117 Voltage
• LM1117 Datasheet Overview
• How to Build an LM1117 Circuit
• Application Examples
• LM1117 Price and Availability
• Conclusion
• Commonly Asked Questions

What is LM1117?

The LM1117 may be a flexible, low-dropout regulator accessible in settled and movable forms. This component is broadly utilized due to its capacity to direct output voltages with negligible power dissemination. The settled variations come in well known output choices, such as 3.3V and 5V, making them perfect for controlling 3.3V rationale gadgets or microcontrollers, such as the ESP32 and Raspberry Pi, as well as 5V circuits like Arduino sheets.

The flexible adaptation permits clients to fine-tune the output voltage by utilizing outside resistors. The LM1117 regulator can convey a greatest current of 800mA, which is adequate for a wide run of low-power applications.

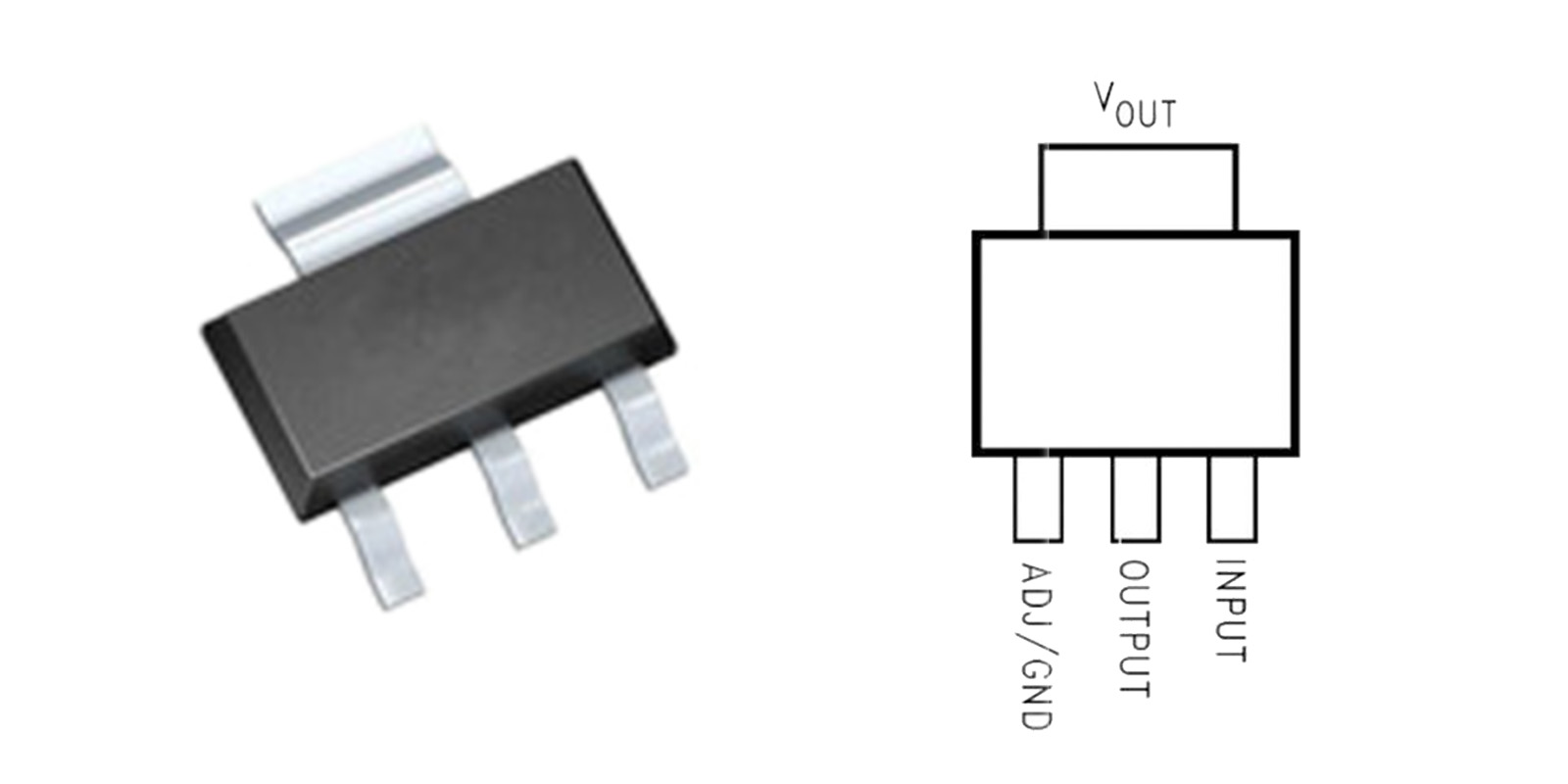

LM1117 Pinout

Understanding the LM1117 Pinout is basic when building a circuit with this voltage regulator. The LM1117 ordinarily comes in a 3-pin bundle with the taking after arrangement:

In adjustable versions, there is an additional pin for connecting the external resistor network to set the output voltage.

LM1117 Features and Benefits

The LM1117 voltage regulator stands out for a few reasons, making it a go-to alternative for numerous plans. Here are its key features:

• Moo Dropout Voltage: One of the foremost imperative characteristics of the LM1117 is its moo dropout voltage, which is around 1.2V. This implies it can regulate output voltage indeed when the input is just 1.2V higher than the specified output.
• Tall Exactness: The LM1117 offers amazing output voltage precision, regularly inside 1% for the settled adaptations.
• Warm Assurance: This regulator incorporates built-in warm security to avoid harm from overheating.
• Brief Circuit Security: It ensures itself and the circuit in case of a brief circuit.
• Wide Extend of Input Voltages: It can handle a wide input voltage run, making it flexible in different scenarios.

LM1117 Variants

There are a few forms of the LM1117 accessible to meet distinctive plan necessities. The two most common fixed voltage versions are:

• LM1117 3.3: This form gives a directed 3.3V output, culminate for fueling 3.3V rationale gadgets.
• LM1117 5V: This adaptation gives a directed 5V output, reasonable for controlling 5V frameworks like numerous microcontroller sheets.

Other varieties of the LM1117 incorporate the LM1117MPX 3.3, which could be a surface-mount form advertising 3.3V output, and the LM1117MPX 3.3 NOPB, which may be a lead-free adaptation of the LM1117MPX 3.3.

LM1117 Voltage

LM1117 Input Voltage and Output Voltage

The LM1117 input voltage must be at slightest 1.2V higher than the directed output voltage due to its dropout voltage. For illustration, on the off chance that you're utilizing the LM1117 3.3 variation, the input voltage must be at slightest 4.5V. Additionally, for the LM1117 5V form, the input voltage ought to be at slightest 6.2V. The most extreme input voltage for the LM1117 is around 15V, but it is suggested to keep it underneath that for ideal execution and to dodge over the top warm scattering.

LM1117 Max Input Voltage

The LM1117 max input voltage is authoritatively appraised at 20V. Be that as it may, in commonsense applications, it is prescribed to utilize an input voltage within the extend of 7V to 15V to dodge overheating or intemperate dropout.

LM1117 Datasheet Overview

Some time recently jumping into building circuits, it's basic to allude to the LM1117 datasheet for point by point determinations, electrical characteristics, and prescribed working conditions. The datasheet gives a riches of data almost the execution, counting the dropout voltage, greatest current rating, and warm contemplations.

How to Build an LM1117 Circuit

Let's presently investigate how to construct a fundamental voltage regulator circuit utilizing the LM1117. We'll center on the LM1117 3.3 form, which gives a steady 3.3V output from an input voltage of around 5V to 15V.

Components Required

• LM1117 3.3 Voltage Regulator
• Two Capacitors (10μF or higher)
• Input Power Source (e.g., 5V to 15V DC)
• Load (e.g., microcontroller or sensor)

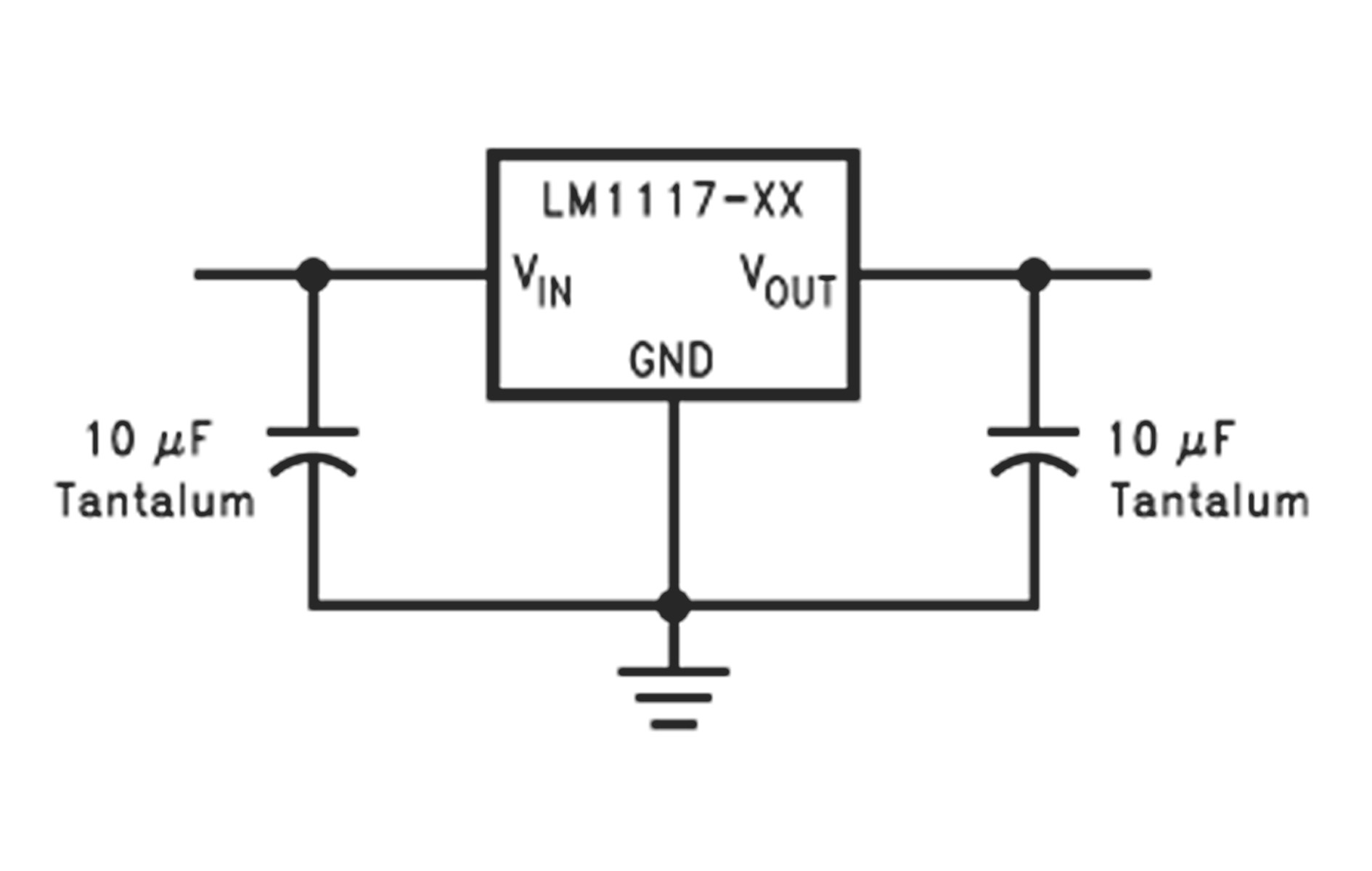

Circuit Diagram

Here's a fundamental step-by-step direct to building an LM1117 3.3V regulator circuit:

1. Interface the Input Voltage: The input voltage is associated to the input pin (Vin) of the LM1117. Guarantee that the input voltage is inside the prescribed run (at slightest 4.5V for the LM1117 3.3 adaptation).

2. Include Input Capacitor: Put a capacitor (typically 10μF) between the input pin and ground to smooth the input voltage and avoid motions.

3. Ground the GND Pin: Interface the ground pin (GND) of the LM1117 to the circuit's ground.

4. Add Output Capacitor: Add another 10μF capacitor between the output pin (Vout) and ground. This capacitor helps stabilize the output voltage.

5. Connect the Load: At long last, interface your load (e.g., a microcontroller or sensor) to the yield stick of the LM1117, which can give a steady 3.3V.

This straightforward setup guarantees that your circuit gets a steady 3.3V supply from a shifting input voltage.

Thermal Considerations

The LM1117 comes with built-in warm security, but it's basic to oversee warm scattering, particularly in the event that the input voltage is altogether higher than the output. The overabundance voltage is dropped over the controller as warm, so including a heatsink may be essential for high-power applications.

Application Examples

The LM1117 regulator is utilized in a wide assortment of applications due to its unwavering quality and ease of utilize. Some common use cases include:

LM1117 Price and Availability

The LM1117 price is for the most part reasonable, making it a cost-effective choice for both hobbyists and experts. It is accessible from different online hardware stores and merchants. Costs change depending on the bundling and form, such as the LM1117MPX 3.3 or LM1117MPX 3.3 NOPB adaptations.

Conclusion

The LM1117 voltage regulator may be a dependable and proficient arrangement for giving steady voltages in electronic circuits. Its low dropout voltage, tall exactness, and warm assurance highlights make it reasonable for a wide extend of applications. Whether you're working with 3.3V or 5V rationale frameworks, the LM1117 could be a flexible choice that can be effortlessly coordinates into your plans.

By understanding the LM1117 Pinout, voltage necessities, and how to construct a straightforward LM1117 circuit, you'll guarantee that your ventures get steady power without the hazard of voltage vacillations or clamor. Keep in mind to allude to the LM1117 datasheet for precise technical points of interest, and guarantee that the input voltage is inside the prescribed run for ideal execution.

Commonly Asked Questions

What is the dropout voltage of LM1117?

The commonplace dropout voltage is 1.1V at 800mA stack.

How to associate capacitors in an LM1117 circuit?

Utilize a 10μF capacitor on both the input and yield pins for steadiness.

Can LM1117 control a 3.3V microcontroller?

Yes, the LM1117 3.3V variation is appropriate for controlling 3.3V microcontrollers like ESP8266.

What is the max input voltage for LM1117?

The most extreme input voltage is 20V, but 7-15V is prescribed for ideal execution.
