AL8807 Optimizes Low-Cost LED Lamp Electromagnetics

Within the field of cutting edge lighting innovation, Driven installations have continuously become the standard choice within the showcase due to their tall effectiveness, long life expectancy, and natural neighborliness. Be that as it may, low-cost Driven installations regularly confront challenges related to electromagnetic obstructions (EMI) amid genuine utilize, which not as it were influences the steadiness and life expectancy of the installations but may moreover adversely affect other electronic gadgets within the encompassing environment. To address this issue, Diodes has presented the AL8807 buck-mode exchanging Driven driver, advertising a special plan and extraordinary execution to supply an compelling arrangement for moderating electromagnetic obstructions in low-cost Driven installations.

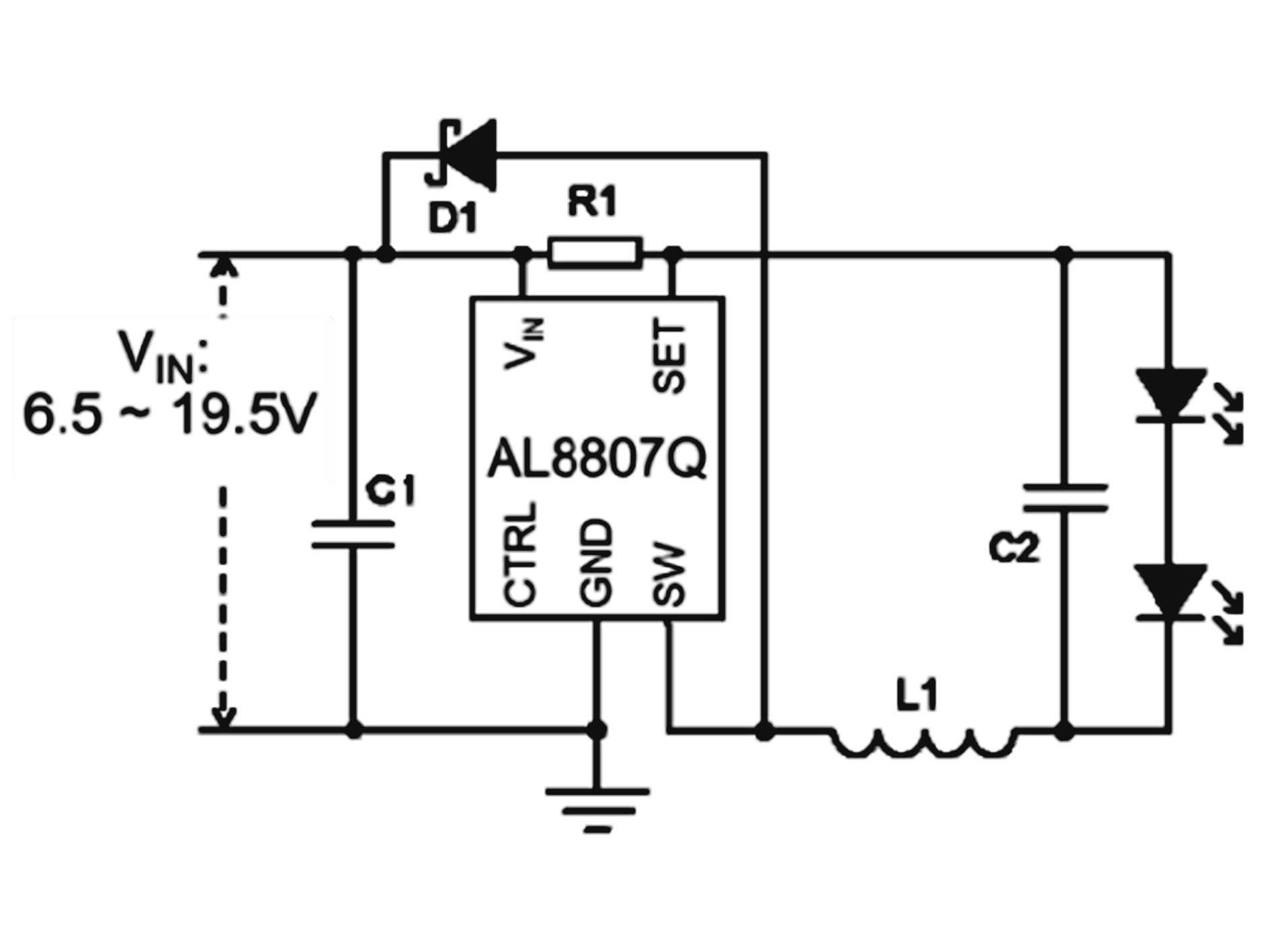

Key Design Highlights of the AL8807: High Switching Frequency and Strict Control

Designed specifically to reduce electromagnetic interference in low-cost MR16 LED fixtures, the AL8807 stands out with its high switching frequency of up to 1MHz and tightly controlled switch rise and fall times. Compared to traditional drivers, this driver features faster switching speeds, enabling voltage and current conversion in a shorter period of time, effectively reducing electromagnetic interference caused by switching actions. Additionally, precise control of the switch rise and fall times further minimizes electromagnetic radiation, ensuring stable operation of the fixtures.

Wide Voltage Range and High Efficiency

In addition to controlling electromagnetic interference, the AL8807 also features high efficiency and a wide voltage range. This driver can operate within an input voltage range of 6V to 30V (or up to 36V according to the latest information), providing a constant current of up to 1A (or 1.3A) for up to eight (or nine) series-connected LEDs. This design allows the AL8807 to meet the needs of various low-voltage lighting applications, and its efficiency of up to 96% means minimal energy loss during conversion, further enhancing the energy efficiency of LED fixtures.

Precise Current Control and Flexible Brightness Adjustment

The AL8807 LED driver boasts a current accuracy of ±5%, placing it among the higher-performing products in its category. Precise current control not only ensures stable operation of the LEDs but also improves brightness consistency across fixtures in the lighting system, avoiding issues of uneven brightness. Additionally, the AL8807 offers flexible brightness adjustment, allowing users to adjust the LED brightness by modulating the DC voltage or pulse-width modulation (PWM) signal at the driver's control input. The PWM dimming ratio reaches up to 1000:1, and the DC signal dimming range extends from 16% to 100%, providing users with a wide and flexible range for adjusting lighting brightness.

Convenient Output Current Setting and Reliable Protection Features

Output Current of the AL8807 LED Driver

The output current setting of the AL8807 LED driver is very simple, achieved by using an external resistor. This plan not as it were streamlines the establishment handle but too diminishes the user's operational trouble. At the same time, the driver's built-in open-circuit assurance include can naturally cut off the yield when an open-circuit blame is recognized, avoiding gear harm caused by overcurrent or brief circuits. This include upgrades the security of the driver and expands its life expectancy.

Compact Packaging and Eco-Friendly Design

In terms of environmental protection, the AL8807 LED driver adopts a green molding compound package that complies with RoHS standards (free of Br and Sb) and is completely lead-free. This not only meets the environmental material requirements of modern electronic products but also reflects Diodes' commitment to environmental protection. Additionally, the driver features a compact SOT25 package, with an MSOP-8EP package soon to be available. This compact design reduces the size and weight of the driver, facilitating installation and layout in limited spaces.

Application Prospects and Market Outlook

With its extraordinary execution and highlights, the AL8807 Driven driver has found far reaching applications in different areas. It is reasonable not as it were for MR16 installations and common lighting installations but too for 12V and 24V fueled Driven lights. In regions such as keen homes, commercial lighting, and scene lighting, the AL8807 illustrates solid competitiveness. As Driven lighting innovation proceeds to create and gotten to be more prevalent, the request for high-performance, low-cost Driven drivers is anticipated to develop. As a high-efficiency, low-EMI, adaptable, and naturally neighborly Driven driver, the AL8807 includes a promising showcase viewpoint.

Conclusion

Overall, the AL8807 LED driver, with its unique design and excellent performance, provides an effective solution to the electromagnetic interference issues faced by low-cost LED fixtures. Its high switching frequency, wide voltage range, precise current control and brightness adjustment, convenient output current setting and protection features, as well as environmentally friendly and compact packaging design, make this driver widely applicable in various fields. As LED lighting technology continues to advance and market demand grows, the AL8807 LED driver will continue to play a significant role in the future lighting market.
