Demystifying W9825G6KH-6: A Deep Dive into its Specifications and Working Principle

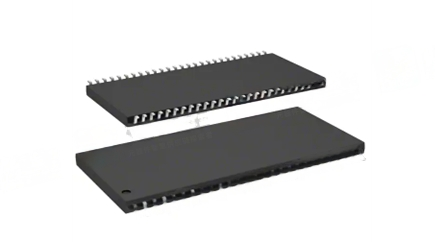

W9825G6KH is a high-performance DDR2 SDRAM memory chip commonly used in fields like computers, communication devices, and embedded systems. It is renowned for its impressive data transfer rates and storage capacity, utilizing DDR2 technology to offer enh anced performance and bandwidth. With its low -power design, the chip extends battery life and maintains stability and reliability across various applications. Its versatility makes it an ideal choice for numerous sectors, including industrial automation, consumer electronics, and more. With multiple packaging op tions and electronic component supply from providers like Icwhale, W9825G6KH becomes an indispensable part of electronic design.

Specifications

Type	Description
category	integrated circuit (IC)
	Memory
	Memory IC
Package	tray
memory type	Volatile
memory format	DRAM
technology	SDRAM
memory size	256Mbit
memory organization	16Mx16
memory interface	Parallel
Clock frequency	166 MHz
interview time	5 nanoseconds
voltage - power	3V~3.6V
Operating temperature	0°C~ 70°C (TA)
installation type	surface mount
Packaging/Case	54-TSOP (0.400″, 10.16mm wide)

Features

W9825G6KH is a DDR2 SDRAM memory chip with the following features:

1. Storage capacity: W9825G6KH has a large storage capacity and is suitable for various applications that require high storage capacity.

2. DDR2 technology: DDR2 technology is used to achieve higher data transmission rate and bandwidth, and improve system performance.

3. High-speed data transmission: Support high-speed data transmission, which helps to speed up data processing and read and write operations.

4. Low power consumption: W9825G6KH is designed as a low power consumption device, which helps to extend the battery life of the device and reduce energy consumption.

5. Wide application: Suitable for a variety of application fields, including computers, network equipment, embedded systems, etc.

6. High stability: Provide stable performance and data storage to ensure the reliability and stability of system operation.

7. Easy to integrate: Designed for easy integration into different types of electronic equipment, providing flexibility and convenience.

8. Advanced process: Manufacture adopts advanced process technology, which helps to improve chip performance and reliability.

9. Various Packages: Multiple package options are available to suit different system requirements and space constraints.

In a word, W9825G6KH is a powerful, stable and reliable DDR2 SDRAM memory chip, suitable for many applications in different fields.

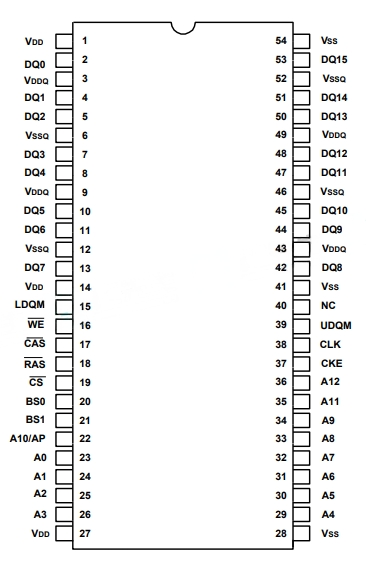

pin configuration

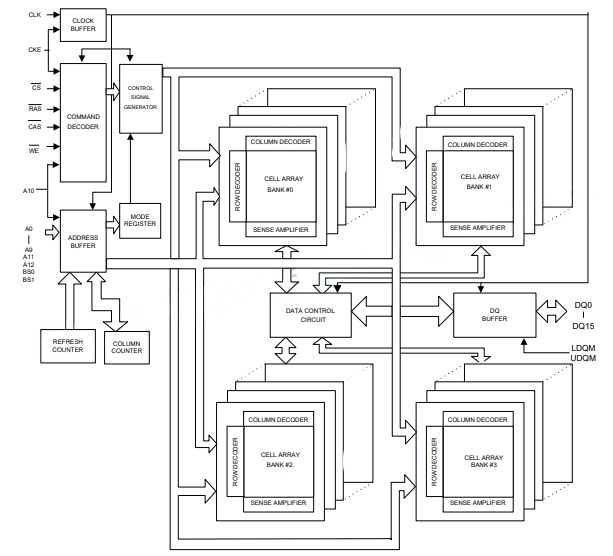

Functional block diagram

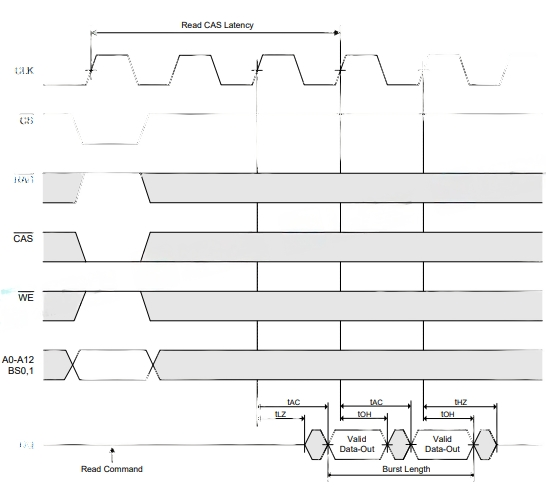

Read Timing Characteristics

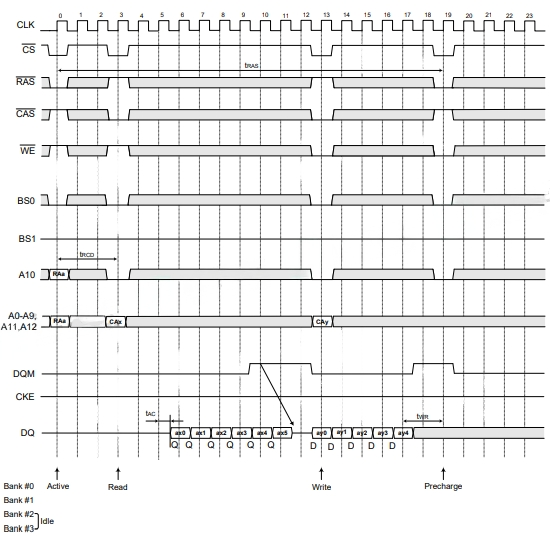

Page mode read/write (burst length=8, CAS latency=3)

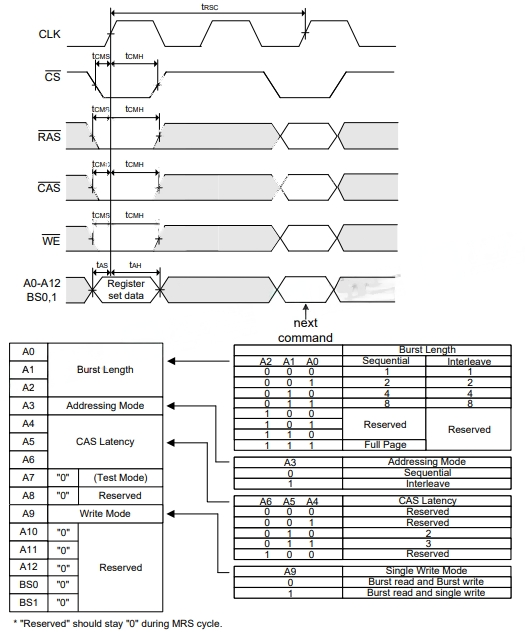

Mode register setting cycle

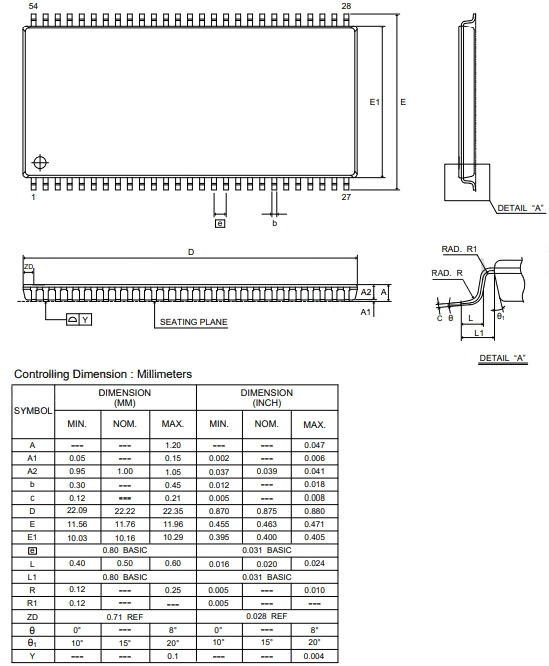

Package Design Parameters

FAQ

Question 1: What type of chip is W9825G6KH?
Answer: W9825G6KH is a DDR2 SDRAM memory chip for data storage and processing.

Question 2: What is the storage capacity of W9825G6KH?
Answer: W9825G6KH has different storage capacity versions, you can choose the appropriate version according to your needs.

Question 3: Which application fields is W9825G6KH suitable for?
Answer: W9825G6KH is suitable for many fields, including computers, network equipment, embedded systems, etc., for data storage and processing.

Question 4: What is the data transfer rate supported by W9825G6KH?
Answer: W9825G6KH supports high-speed data transmission, and the specific data transmission rate depends on the specifications and settings of the chip.

Question 5: How does W9825G6KH reduce power consumption?
Answer: W9825G6KH may adopt low power consumption design, through effective power management and standby mode to reduce power consumption and prolong battery life.

Question 6: How to integrate W9825G6KH into electronic equipment?
Answer: Integrating W9825G6KH requires layout and design according to chip specifications and application requirements. You can refer to related design documents and application notes.

Note that these are possible questions and answers, and the actual FAQs may vary depending on the specific specifications and application environment of the W9825G6KH. For more accurate information, it is recommended to consult the relevant official documents and technical specifications.
