Capacitive Sensors Leading the Way in Medical Intelligence

2024/7/27 17:29:32

Views：

In later a long time, quick headways in electronic innovation have altogether driven development and improvement within the healthcare industry. Restorative gadgets confront challenges such as creating modern demonstrative and treatment strategies, actualizing farther observing and domestic healthcare arrangements, making strides hardware quality and unwavering quality, and expanding adaptability and ease of utilize.This article will explore how Capacitive Digital Converter (CDC) technology enables high-performance capacitive touch sensors in medical applications.

Innovative Applications of Capacitive Touch Sensor Controllers

Capacitive touch sensors can be used in various user interface forms, such as buttons, slider bars, and scroll wheels (see Figure 1). On a printed circuit board (PCB), each gray geometric area represents a sensor electrode, and these electrodes combine to form a virtual capacitor plate. The user's finger acts as another electrode, essentially serving as a grounded sensor input. The capacitive touch sensor controller is designed to activate and connect the capacitive touch sensors, measuring the capacitance changes of a single-electrode sensor.

Capacitive Sensors in Medical Intelligence

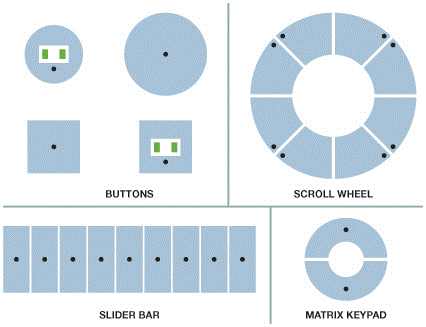

Figure 1: Example Layouts of Touch Sensors

Initially, the device outputs a set of trigger signals to charge the capacitor plates. When an object, such as a user's finger, approaches the sensor, a virtual capacitor is formed, with the user's finger acting as the second capacitor plate (see Figure 2). The CDC measures the capacitance changes.

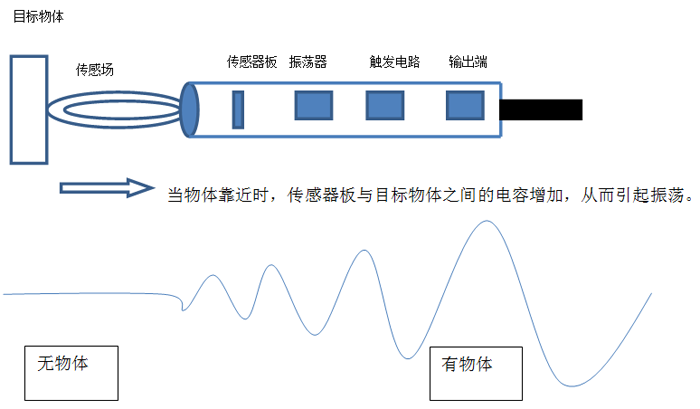

Figure 2: Demonstration of Capacitive Sensing and Typical Response

The Capacitive Digital Converter (CDC) utilizes its ability to detect changes in the external sensor's capacitance to activate a set of sensors. Capacitive touch sensor controllers with thirteen and eight sets of capacitive sensor inputs include built-in calibration logic that compensates for measurement variations caused by environmental changes, such as temperature or humidity, preventing false triggers from external sensors due to environmental changes.

Capacitive touch sensor controllers offer various operating modes, user-programmable conversion sequences, and highly flexible control features. These characteristics make them ideal for high-resolution touch sensing functions, such as slider bars or scroll wheels, with minimal software requirements. Additionally, button sensor applications can be fully implemented using the chip's built-in digital logic, eliminating the need for additional software support.

Different Applications of Capacitive Touch Sensors in Healthcare

Capacitive touch sensors are progressively being connected within the healthcare field. Through Capacitive Advanced Converter (CDC) innovation, capacitive touch sensors can not as it were precisely degree outside capacitance changes but too change over them into digital signals transmitted to the most processor.This technology's high reliability helps expand the application range of capacitive touch sensors in healthcare.

Overall, capacitive touch sensors exhibit broad application potential in medical devices. They not only enhance the user experience of devices but also improve the reliability and precision of the equipment. These sensors show significant promise in remote monitoring, home healthcare, and diagnostic equipment. With continuous technological advancements, the future applications of capacitive touch sensors in the medical field are expected to become even more extensive.
