Transistor BC547: Understanding BC547 Voltage Basics

The BC547 transistor is one of the foremost prevalent general-purpose transistors, broadly utilized in different low-power electronic circuits. As a small-signal NPN transistor, it is favored for amplification and exchanging applications. Its flexibility, accessibility, and low fetched make it a go-to component for both fledglings and experts in electronics. This article will assist you understand the voltage nuts and bolts of BC547, at the side other key characteristics and applications.

6 Simple BC547 circuit

Table of Contents

• What is the BC547 Transistor?
• Voltage Basics of the BC547 Transistor
• BC547 Resistor Selection for Base Biasing
• BC547 Applications and Circuits
• BC547 in Voltage Regulation and Protection
• BC547 Datasheet and Key Specifications
• Buying the BC547: Price and Availability
• Select the appropriate BC547 equivalent
• Conclusion
• Commonly Asked Questions

What is the BC547 Transistor?

The BC547 is an NPN bipolar intersection transistor (BJT) outlined for moo current, low voltage, and medium recurrence applications. It could be a small-signal transistor, fundamentally utilized for exchanging and amplification purposes. The transistor comes in a TO-92 bundle, making it perfect for utilize in little electronic gadgets. The bc547 ic can handle a collector current (Ic) up to 100mA and can work in frequencies up to 300MHz.

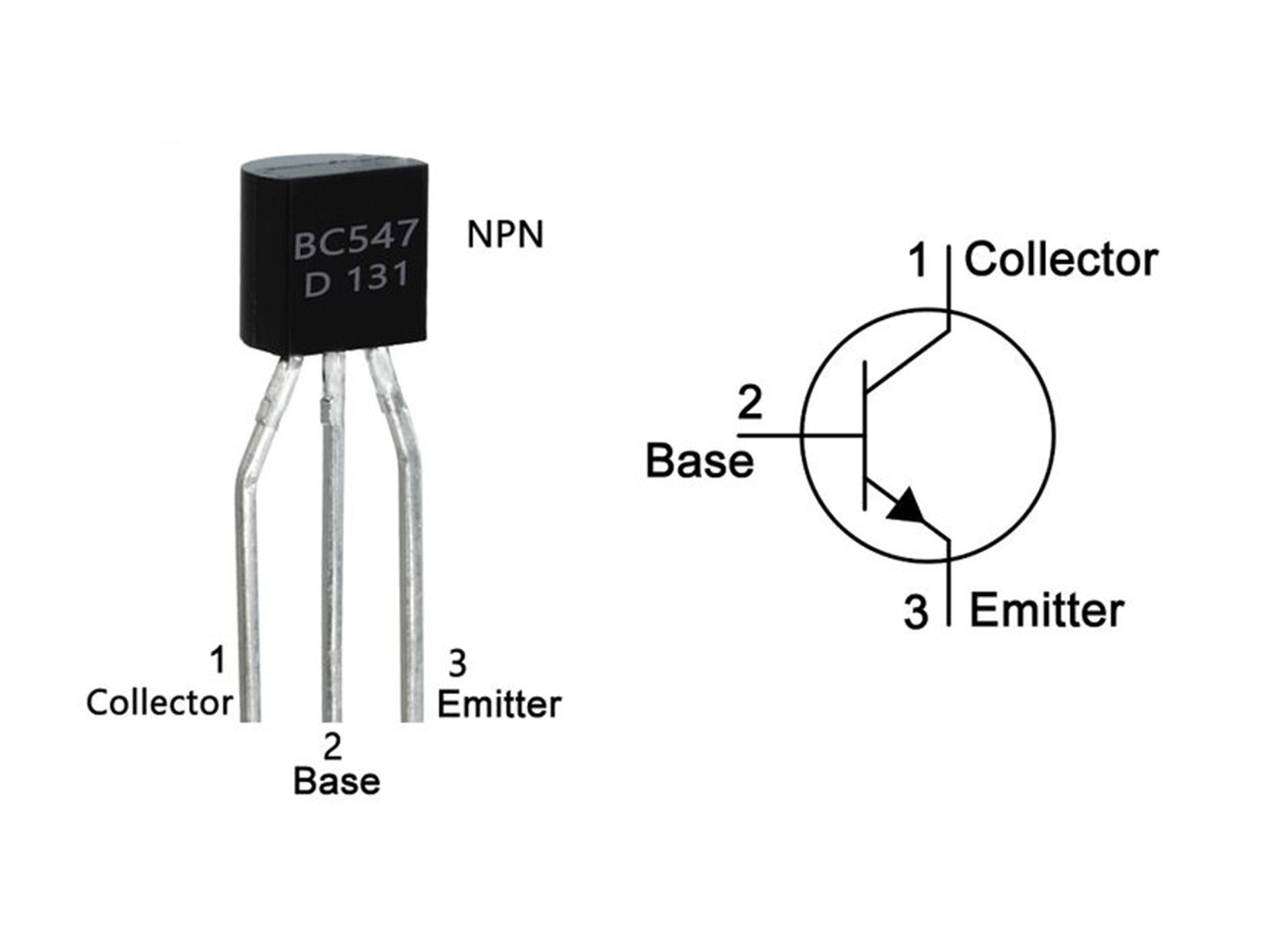

BC547 Pinout

Understanding the BC547 Pinout is essential when integrating it into your circuit. The BC547 transistor has three pins:

In the bc547 to 92 package, the pinout follows this order when viewed from the flat side with the pins pointing downward: Emitter, Base, and Collector.

Voltage Basics of the BC547 Transistor

One of the foremost basic viewpoints of working with the BC547 transistor is understanding its voltage characteristics. The bc547 spec highlights the following important voltage parameters:

These voltages determine the safe operating conditions of the transistor. Exceeding these values may result in damage to the component.

BC547 Resistor Selection for Base Biasing

When utilizing the BC547 in exchanging or amplification circuits, it's vital to choose the proper base resistor esteem. This resistor limits the current streaming into the base to avoid harming the transistor. To calculate the appropriate bc547 resistor, use Ohm's Law:

$R = \frac{V_{in} - V_{be}}{I_b}$

Where:

• $V_{in}$ is the input voltage,
• $V_{be}$ is the base-emitter voltage (approximately 0.7V for the BC547),
• $I_b$ is the desired base current.

Ensuring the base current is within the transistor's specified limits is critical for proper functioning, whether the transistor is used as a switch or amplifier.

BC547 Applications and Circuits

Using the BC547 in Circuits

When using the BC547 in practical circuits, such as a switch or amplifier, proper biasing and thermal management are crucial. Given its small form factor and power dissipation limits, overheating can be an issue if not properly addressed. Satisfactory warm sinking or ventilation is prescribed in higher-power applications.

In amplifier circuits, the bc547 resistor values play a critical part in deciding the pick up and generally execution of the transistor. Testing with diverse resistor values and setups can offer assistance optimize the circuit for particular applications.

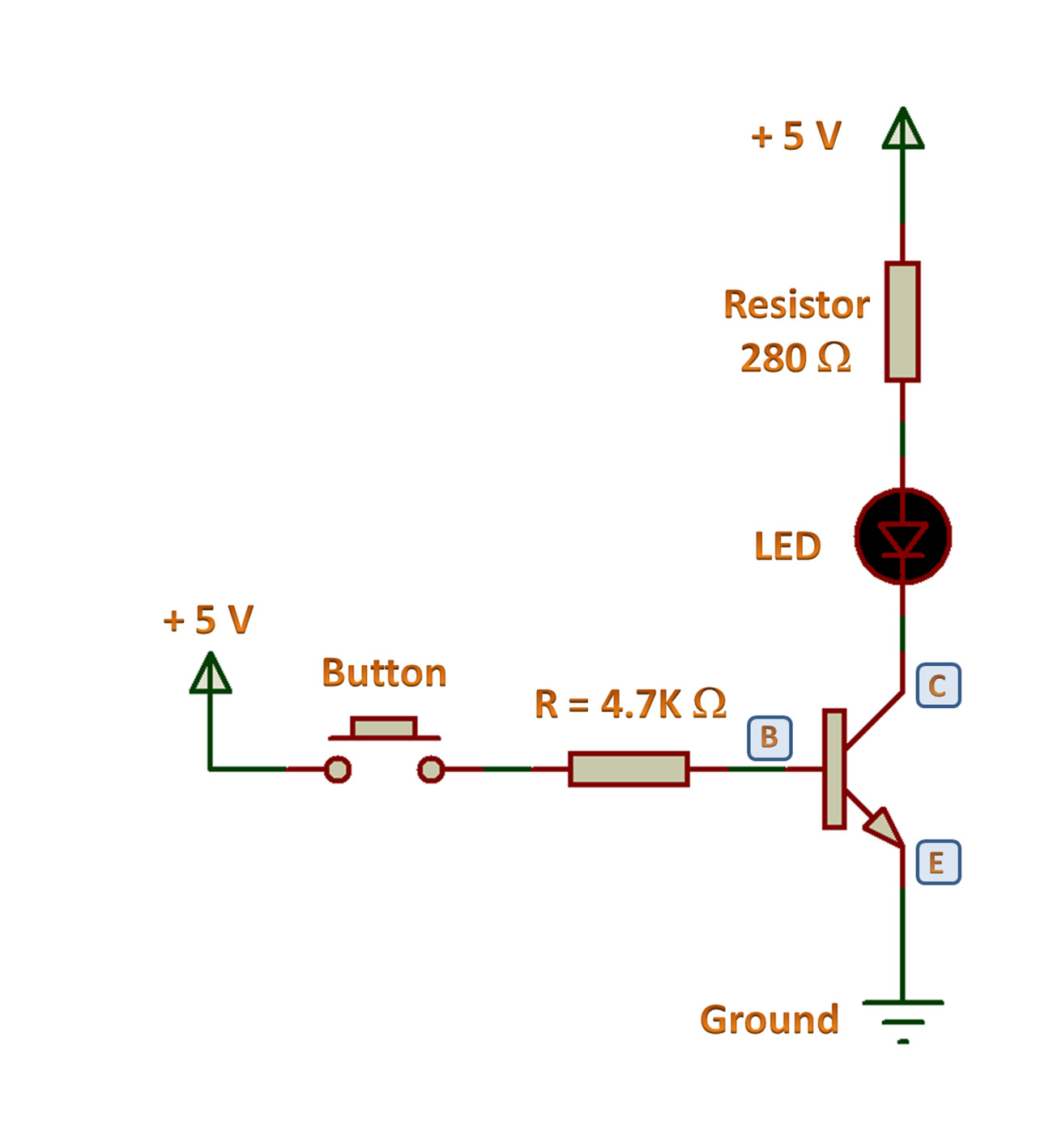

BC547 Switch

One of the foremost common applications of the BC547 is in exchanging circuits. In a bc547 switch arrangement, the transistor works in immersion mode (completely on) or cut-off mode (completely off). The base current controls whether the transistor is on or off, empowering it to act as an electronic switch for controlling bigger loads like transfers, LEDs, or other gadgets. This makes it useful in automation and control systems.

Circuit：

BC547 for LED Control and Amplification

In addition to its use as a switch, this circuit showcases the BC547's role in signal amplification. Working within the dynamic locale, the BC547 can increase frail signals, such as those produced by the capacitor in this circuit. A little current connected to the base of the BC547 controls a bigger current streaming from the collector to the emitter, which in turn directs the blazing of the Driven. This illustrates how the BC547 is utilized in circuits requiring both exchanging and intensification capacities.

Circuit：

BC547 in Voltage Regulation and Protection

The BC547 can also be used in voltage regulation circuits. In spite of the fact that it isn't regularly the most component in such plans, it can act as a control transistor in combination with other components like Zener diodes and capacitors. Moreover, the BC547 can be utilized for voltage clamping and assurance in circuits that require defending against voltage spikes or variances.

BC547 Spec for Voltage and Current Ratings

A key perspective of the bc547 spec is its voltage and current appraisals. As said prior, the BC547 can handle a greatest collector current of 100mA. However, when planning circuits, it is fitting to function the transistor well underneath this restrain to guarantee life span and unwavering quality. Essentially, remaining inside the suggested voltage ranges for collector-emitter and collector-base voltages guarantees that the transistor performs ideally without chance of breakdown.

BC547 Datasheet and Key Specifications

To completely get it the characteristics of the BC547, alluding to its bc547 datasheet is basic. This report gives point by point details, counting the most extreme voltage evaluations, current taking care of, and control scattering. The key specifications include:

Buying the BC547: Price and Availability

Due to its widespread use, the bc547 buy process is straightforward. The transistor is promptly accessible through various online retailers and electronic component stores. The bc547 price is by and large moo, making it an reasonable choice for hobbyists and experts alike. Depending on the seller, you'll be able buy it for as small as a couple of cents per piece.

The bc547 cost can change based on components such as amount obtained, the provider, and shipping costs. Bulk obtaining can decrease the per-unit cost essentially, making it indeed more cost-effective for bigger ventures.

Select the appropriate BC547 equivalent

In a few cases, you'll got to substitute the BC547 with another transistor due to accessibility or particular circuit necessities. A few common bc547 proportionate transistors incorporate the 2N2222, BC548, and BC546. These equivalents have similar characteristics but may differ slightly in voltage, current handling, or packaging.

Conclusion

The BC547 transistor may be a essential component in electronics, advertising a wide run of applications from exchanging to amplification. Its moo fetched, simple accessibility, and strong execution make it a prevalent choice for different low-power circuits. By understanding its voltage essentials and characteristics, you'll certainly utilize the BC547 in your electronic ventures, whether for hobbyist purposes or proficient plans.

To completely get a handle on its capabilities, counseling the bc547 datasheet is vital, because it gives the point by point details essential for making educated plan choices. Whether you're looking to buy bc547, investigating its smd variation, or considering a bc547 equivalent, the flexibility of this transistor guarantees it'll stay a backbone in electronics for a long time to come.

Commonly Asked Questions

What is the greatest voltage of BC547 transistor?

The greatest collector-emitter voltage (Vce) is 45V.

What is the base-emitter voltage (Vbe) of BC547?

The commonplace Vbe is 0.7V.

How does BC547 work as a switch?

When Vbe surpasses 0.7V, the transistor switches ON, permitting current stream from collector to emitter.

What is the voltage drop in immersion mode for BC547?

The Vce can drop to 0.2V in immersion mode.

How does collector current influence BC547 voltage?

Higher base current permits bigger collector current (up to 100mA) to stream, controlling voltage drop over the transistor.
