ASM330LHHTR: The Smart Choice for Your Sensor Needs

Are you seeking for a sensor for your project that is dependable and effective? Look no further than the ASM330LHHTR, the smart choice for your sensor needs.

What is the ASM330LHHTR?

A high-performance 6-axis inertial sensor with a 3-axis gyroscope and 3-axis accelerometer integrated into a single unit is called the ASM330LHHTR. It is made to offer precise and dependable motion sensing for a variety of applications, including wearable technology, robotics, and industrial control systems.

Benefits of Using the ASM330LHHTR

High Accuracy

One of the main benefits of using the ASM330LHHTR is its high accuracy. With a measurement range of up to ±16g for the accelerometer and ±2000 dps for the gyroscope, this sensor can provide precise and reliable data for your project.

Low Power Consumption

The ASM330LHHTR is made with low power consumption in mind, consuming only 0.55 mA when operating in high-performance mode. For battery-powered applications where power conservation is an issue, this makes it a great choice.

Compact Size

The ASM330LHHTR is designed to be compact and lightweight, with a small footprint of just 2.5 x 3 x 0.83 mm. Due to this, it's simple to incorporate into your project, even in applications with a small footprint.

Applications of the ASM330LHHTR

The ASM330LHHTR is suitable for a wide range of applications, including:

• Industrial control systems

• Robotics

• Wearable devices

• Gaming controllers

• Navigation systems

How to Use the ASM330LHHTR

Using the ASM330LHHTR is straightforward, thanks to its simple and intuitive interface. To get started, you will need to consult the ASM330LHHTR datasheet, which provides detailed information on how to use the sensor effectively.

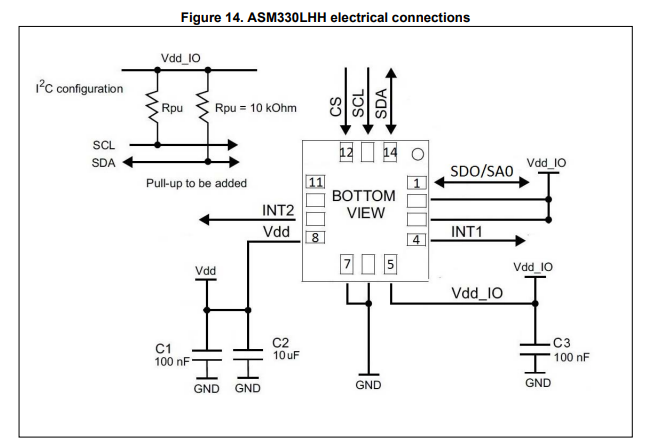

Pin Configuration

The ASM330LHHTR has a straightforward pin configuration, with pins for power supply, ground, and data output. The pinout is as follows:

• VDD: Power supply

• GND: Ground

• INT1: Interrupt output 1

• INT2: Interrupt output 2

• SCL: I2C clock

• SDA: I2C data

Setting up the Sensor

To set up the ASM330LHHTR, you will need to connect it to your microcontroller or other data acquisition device using the I2C interface. Once connected, you can configure the sensor using the appropriate register settings.

Comparing to Other Sensors

While the ASM330LHHTR is an excellent choice for many applications, it is not the only option available. Other popular sensors include the ICM-20608-G and the ICM-42605.

Compared to the ICM-20608-G, the ASM330LHHTR offers higher accuracy and lower power consumption. The ICM-20608-G is a superior option for situations that call for increased sensitivity because it has a larger measuring range.

Compared to the ICM-42605, the ASM330LHHTR offers similar accuracy and power consumption, but with a smaller size and lower cost. However, the ICM-42605 has a higher measurement range and can operate at higher temperatures, making it a better choice for some applications.

Conclusion

The ASM330LHHTR is a great option if you're seeking for a trustworthy and effective sensor for your project. It is appropriate for a variety of applications due to its excellent precision, low power requirement, and small size. Why then wait? Get hold of an ASM330LHHTR right away to witness this extraordinary sensor's transformational capability.
