CR2032 VS DL2032 VS CR2025: Specification Differences, Features, and Interchangeable

2024/7/6 17:55:55


When it comes to small electronics like remote controls, key fobs, calculators, and various medical devices, coin cell batteries are indispensable. Among the most popular coin cell batteries are CR2032, DL2032, and CR2025. While they may look similar and even fit in the same devices, they have distinct differences that could impact the performance and longevity of your gadgets. We will compare the features, specs, and interchangeability of various batteries in-depth in this blog post.

DL2032 vs CR2032 - What's their Main Differences?

What are Coin Cell Batteries?

Coin Cell Batteries

Coin cell batteries, often called button cell batteries, are small, round, flat batteries that are commonly used in small electronic devices such as watches, hearing aids, calculators, and key chains. Their typical measurements are 5 to 25 millimeters in circumference and 1 to 6 millimeters in thickness. Coin cell batteries, which are frequently made of alkaline, silver oxide, or lithium materials, may power low-drain devices for a long time.

What is a CR2032 battery?

One kind of non-rechargeable lithium button cell that is frequently found in tiny electronic gadgets is the CR2032 battery. It has dimensions of 20 x 3.2 x 3.2 mm, a nominal voltage of 3 volts, and a maximum capacity of 240 mAh. Known for its long shelf life of up to 10 years, the CR2032 is widely used in various applications, including watches, calculators, key fobs, medical devices, motherboards, security system panels, and weapons sighting systems. Its small size, large capacity, long service life, and constant discharge make it an excellent choice for many commercial and consumer applications.

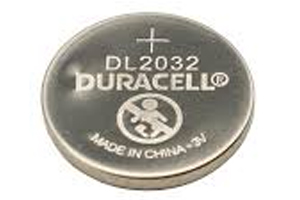

What is a DL2032 Battery?

A DL2032 battery is essentially the same as a CR2032 battery, with both being 3-volt lithium coin cell batteries that measure 20mm in diameter and 3.2mm in thickness. The "DL" prefix typically indicates a specific branding by Duracell, differentiating it from the more generic "CR" prefix used by other manufacturers. Both DL2032 and CR2032 batteries share the same specifications and are interchangeable in devices. They are frequently found in tiny electronic gadgets like watches, calculators, keychains, medical equipment, and many other uses that call for a dependable and long-lasting power source.

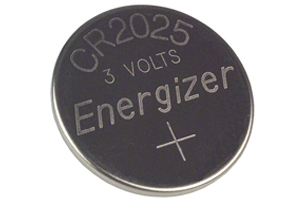

What is a CR2025 Battery?

One kind of button cell lithium battery that is frequently used in tiny electronic gadgets is the CR2025 battery. The prefix "CR" denotes "lithium manganese dioxide," which is the battery's chemical makeup. The battery's dimensions-20 mm in diameter and 2.5 mm in thickness-are indicated by the number "2025". These batteries normally have a 150–170 mAh capacity and a nominal voltage of 3 volts. Similar to the CR2032, CR2025 batteries are used in watches, calculators, key fobs, medical equipment, and small toys because of their extended shelf life. They are appropriate for devices with lesser power requirements or more compact designs because to their thinner thickness when compared to the CR2032.

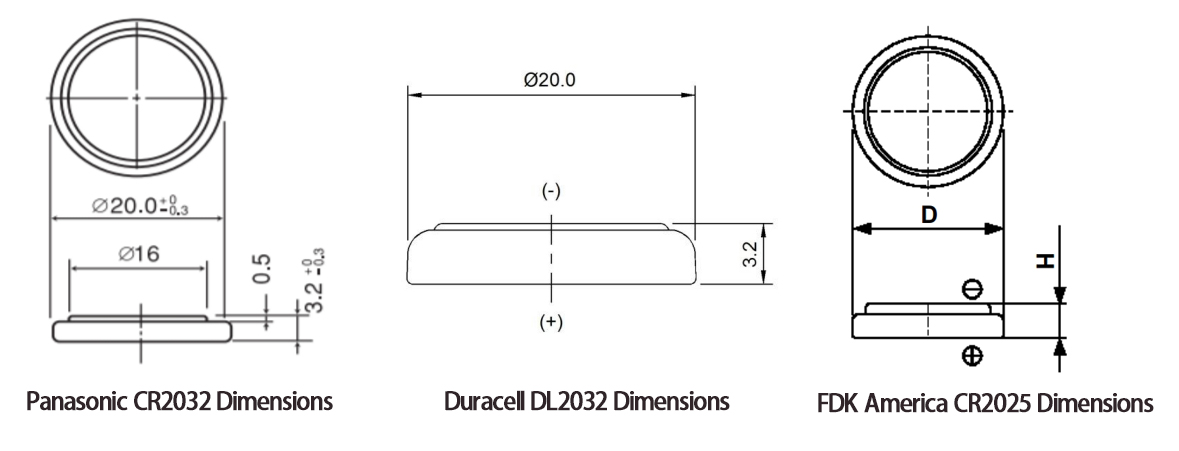

Dimensions of CR2032, DL2032, and CR2025 Batteries

Dimensions of CR2032, DL2032, and CR2025 Batteries

CR2032 VS DL2032 VS CR2025 Specification

Panasonic CR2032
Duracell DL2032
FDK America CR2025
FDK America
Battery Chemistry
Lithium Manganese Dioxide
Lithium/Manganese Dioxide (Single Use)
Lithium Coin
Battery Cell Size
0.79" (20mm)
0.79" (20mm)
0.79" (20mm)
0.13" (3.2mm)
0.13 (3.2mm)
0.10"(2.5 mm)
3.1 g
4.5 g
2.5 g
0.79" Dia x 0.13" H (20.0mm x 3.2mm)
0.79" Dia x 0.13" H (20.0mm x 3.2mm)
0.79 Dia x 0.10 H (20.0mm x 2.5mm)
225 mAh
225 mAh
170 mAh
Operating Temperature
-20°C to +60°C
-30°C to +60°C
0°C to +60°C
Storage Temperature
-10°C to +45°C
-10°C to +45°C
-10°C to +45°C
Constant Drain Current
0.19 mA
0.19 mA
0.19 mA
Shelf Life
10 years
10 years
8 years
Self-discharge Rate
1% per year
1% per year
2% per year
Product Status

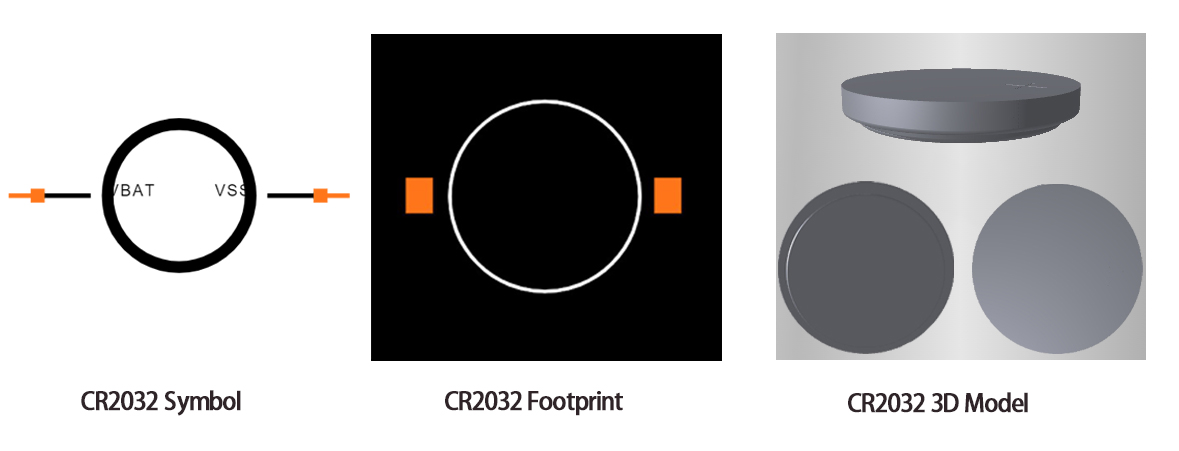

CR2032 Symbol, Footprint, 3D Model

CR2032 Symbol, Footprint, 3D Model

Features of CR2032, DL2032, and CR2025 Batteries

CR2032 Battery Features

- Exceptional pulse capacity: Excellent performance during high-power demand bursts.

- High discharge characteristics: Delivers stable high current.

- Constant voltage: Maintains a steady voltage level throughout discharge.

- Long-term reliability: Consistent performance over a long lifespan.

- High voltage: Provides up to 3V.

- Low self-discharge: Extremely low self-discharge rate, with a shelf life of up to ten years.

- Versatile applications: Comprehensive product range suitable for various applications.

- Mercury-free: Environmentally friendly, contains no mercury.

- Excellent leak protection: Superior design to prevent leaks.

- Wide temperature range: Operates effectively between -30°C to +60°C.

- High energy density: High weight-to-power ratio, offering excellent energy efficiency.

DL2032 Battery Features

- Voltage and Capacity: Delivers 3 volts with a 200 mAh capacity, utilizing lithium chemistry.

- Dimensions: Measures 3.2 mm in height and 20 mm in diameter.

- Assembly Cells: Suitable for various assembly applications.

- Brand: Manufactured by Duracell, known for its reliable rechargeable batteries.

- Output: Provides a consistent 3V output voltage.

- Chemistry: Based on lithium technology for high performance.

- Non-refillable: Designed for single-use, not rechargeable.

- Steady Power: Offers a reliable voltage source with high energy output.

- Longevity: Coin cells are known for their long shelf life, ideal for storage and backup.

- Versatility: Ideal for gadgets like watches, calculators, cameras, games, and other electrical devices.

- Other Names: Also known as LM2032, 5004LC, CR2032BP, EA-2032C, L14, BR2032, LM2032, ECR2032, KCR2032, and DL2032.

- Packaging: Each box contains one battery.

CR2025 Battery Features

- Lithium battery: Reliable power source with lithium chemistry

- CR2025 model: Commonly used lithium battery type

- Energizer brand: Provides 3V output, available in packs of 2

- Manufacturer part number: ECR2025BP

- Compatibility: Suitable for watches, small electronics, health and fitness equipment, and toys

- Universal fit: Compatible with any device that uses size 2025 batteries

- Equivalent models: Additionally known as Citizen 280-205, ECR2025, KCR2025, E-CR2025, KECR2025, BR2025, KL2025, L2025, and DL2025

- Adaptable uses: Perfect for watches, calculators, computer motherboards, medical equipment, automobile FOBs, and security devices

- Polarity marked: Clearly labeled for correct installation

- Easy replacement: Designed for simple and quick battery changes

- Long shelf life: Retains charge for up to 8 years

- Wide temperature range: Operates between -22°F and 140°F

- Environmentally friendly: Mercury-free composition

Applications of CR2032, DL2032, and CR2025 Batteries

CR2032 Battery Applications

- Watches: Provides long-lasting power.

- Calculators: Ensures extended functionality.

- Keyless Entry Systems: Used in car key fobs.

- Medical devices: Heart rate monitors and glucose monitoring, for example.

- Computer Motherboards: Powers the CMOS chip to maintain BIOS settings and system clock.

- Toys and Games: Used in portable gaming devices and LED toys.

- Fitness Trackers and Wearables: Compact and lightweight power source.

- Digital Thermometers: Ensures long-term accuracy.

- Hearing Aids: Provides reliable power.

- LED Lights: Used in small LED decorative items and portable lights.

DL2032 Battery Applications

- Wristwatches: They provide a reliable power source for digital and analog wristwatches.

- Calculators: These batteries power small calculators, ensuring long-term usability.

- Remote Controls: Used in key fob remotes for cars and other devices.

- Medical Devices: Employed in medical equipment like glucometers and hearing aids.

- Motherboards: Commonly used as CMOS batteries in computer motherboards to maintain system settings.

- Fitness Devices: Power heart rate monitors, pedometers, and other fitness gadgets.

- Toys: Found in various small electronic toys.

- LED Lights: Used in small LED lights and decorative lighting.

- Electronic Scales: Provide power for kitchen and bathroom scales.

- Security Devices: Utilized in security devices like wireless doorbells and sensors.

CR2025 Battery Applications

- Wristwatches: Many digital and analog watches use this battery due to its long lifespan and reliable performance.

- Automobile Key Fobs: Its small size and extended battery life make it perfect for usage in remote entry systems and automobile key fobs.

- Calculators: Many portable calculators rely on this battery for a long-lasting power source.

- Digital Thermometers: These batteries are often used in medical and household digital thermometers.

- Fitness Trackers: Some fitness trackers and pedometers use this battery because it is lightweight and small.

- Toys: Various small electronic toys depend on this battery for power.

- Remote Controls: Small remote controls for devices such as cameras, presentations, and home entertainment systems often use this battery.

- Computer Motherboards: Used to power the CMOS memory in computer motherboards, maintaining system settings and the real-time clock when the computer is off.

- Hearing Aids: Some hearing aids and hearing aid remotes use this battery due to its small size and reliable power output.

- Electronic Dictionaries: Portable electronic dictionaries and translators frequently use this battery.

Interchangeability of CR2032, DL2032, and CR2025 Batteries

Are CR2032 and DL2032 interchangeable?

DL2032 and CR2032 are two common types of button batteries. DL2032 is a Duracell brand model, while CR2032 is an industry standard model. They have the exact same dimensions and voltage-they are both 20 mm in diameter, 3.2 mm thick, and 3 volts. Therefore, DL2032 and CR2032 can be used interchangeably in most devices. However, due to different brands, the specific capacity and lifespan may vary. Generally speaking, DL2032 has a higher battery capacity and a longer lifespan.

Are CR2032 and CR2025 interchangeable?

Small electrical devices usually contain coin cell batteries, such as the CR2032 and CR2025. The CR2032 and CR2025 have different thicknesses of 3.2 and 2.5 mm, respectively. This is the primary distinction between them. Both batteries have the same diameter (20mm) and voltage (3V), making them generally interchangeable in devices with flexible battery compartments. However, using a CR2032 in place of a CR2025 may require more space, and a CR2025 may have a shorter lifespan compared to a CR2032 due to its smaller capacity.

Are DL2032 and CR2025 interchangeable?

Although the lithium coin cell batteries DL2032 and CR2025 are identical in size and capacity, they cannot be used interchangeably. The dimensions of the DL2032 and CR2025 are 20 mm in diameter and 3.2 mm and 2.5 mm, respectively. The DL2032 generally has a higher capacity (around 225mAh) compared to the CR2025 (around 160mAh). Devices designed for one type may not properly fit or function with the other.

How to Test Coin Cell Batteries

Using a Multimeter

1. Set the Multimeter:

- Power On: Turn on your multimeter.
- DC Voltage Setting: Select the DC voltage setting on the multimeter. Typically, a "V" with a straight line under it and a dashed line above it indicates this.

2. Connect Probes:

- Red Probe: Place the red probe on the positive terminal (the flat, larger side) of the battery.
- Black Probe: Place the black probe on the negative terminal (the smaller, rounded side) of the battery.
- Secure Contact: To obtain an accurate reading, make sure the probes are in good contact with the terminals.

3. Read Voltage:

- Check Display: Look at the multimeter display for the voltage reading.
- Fully Charged Battery: A fully charged 3V coin cell battery should show a voltage close to 3 volts (e.g., 2.8V to 3.2V).
- Low Voltage: If the reading is significantly lower (e.g., below 2.5V), it indicates the battery is weak or depleted and should be replaced.

Using Battery Testers

1. Dedicated Battery Testers:

- Device Design: Battery testers are compact devices specifically designed to test small batteries, including coin cells.
- Easy to Use: They typically have slots or contacts where you place the battery to get a reading.

2. Testing Process:

- Insert Battery: Place the coin cell battery into the designated slot or contacts on the tester, ensuring correct polarity (positive and negative alignment).
- Read Indicator: The tester will indicate the battery's status, often with a needle or digital display showing "Good," "Weak," or "Replace."
- Fast Results: The battery's remaining charge level can be quickly and clearly determined using this method.

Tips for Accurate Testing

 - Clean Contacts: Ensure the battery terminals and multimeter or tester probes are clean for accurate readings.

 - Room Temperature: Test batteries at room temperature for best results, as extreme temperatures can affect voltage readings.

 - Compare Readings: If uncertain, compare readings with a new battery to understand the typical voltage range for your specific tester or multimeter.

By following these steps, you can effectively test your coin cell batteries, ensuring your devices operate efficiently and reducing the risk of unexpected power loss.(Attached below is the video)

How to Measure a CR2032 Coin cell battery (#006)

Coin Cell Battery Safety, Disposal, and Maintenance Tips

Safety and Disposal of Coin Cell Batteries

1. Safety Precautions:

Avoid Swallowing: Coin cell batteries pose a significant choking hazard and can be extremely dangerous if swallowed. Make sure they're always out of reach of kids and animals.

Handling: Use care when handling these batteries, as they can cause skin irritation if damaged. Avoid using damaged or leaking batteries.

Short Circuit: Prevent short-circuiting by not storing loose batteries together, especially with metal objects, which could cause them to short out and overheat.

2. Proper Disposal:

Recycling: In order to prevent environmental pollution, coin cell batteries should be recycled correctly. Drop-off receptacles dedicated to battery recycling are available at many electronics outlets and recycling facilities.

Battery Disposal Guidelines: Consult local regulations regarding battery disposal, as improper disposal can lead to harmful environmental effects.

Ways to Increase Battery Life

1. Storage Tips:

Cool, Dry Place: To extend the shelf life of batteries, store them in a cool, dry place. Battery life may be shortened by extreme temperatures.

Initial Packaging: To avoid damage and short-circuiting, store batteries in their original container until you're ready to use them.

2. Usage Tips:

Turn Off Devices: When not in use, turn off devices to prevent unnecessary battery drain.

Remove Batteries: To avoid leakage and corrosion, remove the batteries from a gadget before it is not going to be used for a long time.

Datasheet of CR2032, DL2032, and CR2025 Batteries

Panasonic CR2032 Datasheet

Duracell DL2032 Datasheet

FDK America CR2025 Datasheet

Common Queries Answered

1. What is the difference between CR2032 and DL2032?

The primary difference between CR2032 and DL2032 batteries is the brand. CR2032 is a general designation for this type of battery, while DL2032 specifically refers to the same battery made by Duracell. Both have the same size and specifications.

2. Can I interchange CR2025 and CR2032 batteries?

The diameters of CR2025 and CR2032 batteries are comparable (20 mm), but their thicknesses are different. The CR2025 is 2.5mm thick, whereas the CR2032 is 3.2mm thick. If your device can accommodate the thicker CR2032 battery, it can be used interchangeably with CR2025, but the opposite may not be true.

3. Which battery is better for my device: CR2032 or CR2025?

It depends on the device specifications. The CR2032 has a higher capacity (about 225mAh) compared to the CR2025 (about 160mAh), meaning the CR2032 will generally last longer. However, you should always follow your device's recommendations for battery type.

4. What is the lifespan and capacity comparison of CR2032, DL2032, and CR2025 batteries?

CR2032 and DL2032 typically have a capacity of 225mAh and a lifespan of 3 to 5 years in typical use. CR2025 has a capacity of 160mAh and a similar lifespan in compatible devices. Lifespan can vary based on the device's power consumption.

5. Where can I buy CR2032, DL2032, or CR2025 batteries?

Supermarkets, electronics stores, and internet merchants such as Amazon, eBay, and specialized battery providers all stock these batteries.

6. What are the best brands of CR2032 batteries?

Some of the top brands for CR2032 batteries include Energizer, Duracell (DL2032), Panasonic, and Sony. These companies are reputable for their durability and dependability.

7. What is the difference in price and performance between CR2025 and CR2032?

Generally, CR2032 batteries might be slightly more expensive than CR2025 due to their higher capacity. Performance-wise, CR2032 batteries last longer in devices due to their higher mAh rating.

8. How do I properly install and replace CR2032, DL2032, or CR2025 batteries?

To replace these batteries, locate the battery compartment in your device, often secured by a small screw or sliding mechanism. Ensure you insert the battery with the correct polarity (+ and -). For more instructions, see the handbook that came with your device.

9. What are the main applications of CR2032, DL2032, and CR2025 batteries?

These batteries are commonly used in small electronics like calculators, watches, remote controls, medical devices, fitness equipment, and computer motherboards.

10. Why can't my device use CR2025 instead of CR2032?

Compared to the CR2032, the CR2025 is smaller and has a lower capacity. If your device requires the higher capacity or specific size of the CR2032, using a CR2025 might result in shorter battery life or improper fit, affecting the device's performance.
