The Ultimate Handbook on Energizer A23 Batteries: Features, Applications, and Benefits

2024/6/11 16:45:06

Views:

Energizer A23 miniature alkaline 12V batteries are compact powerhouses, providing reliable energy for a variety of devices. From garage door openers to keyless entry systems, these batteries offer long-lasting performance in a small package. In this comprehensive guide, we delve into the features, applications, and benefits of Energizer A23 batteries, exploring why they are a preferred choice for many consumers worldwide.



A23 batteries are tiny 12v goodness


Overview of Energizer A23 Batteries

● Composition and Structure: Energizer A23 batteries are constructed using high-quality alkaline chemistry, ensuring consistent power output.

● Compact Design: Despite their small size (roughly the size of a button), these batteries pack a punch with their 12V output, making them ideal for devices requiring higher voltage.

● Longevity: With a shelf life of several years, Energizer A23 batteries are known for their reliability and ability to hold charge over extended periods.


Energizer A23 Batteries


Specifications of Energizer A23 Batteries

Specification
Details
Chemistry
Alkaline
Voltage
12 volts
Size
A23 (also known as 23A, 23AE, MN21, L1028, GP23A)
Shelf Life
five to ten years, based on the circumstances of storage
Dimensions (Diameter x Height)
10.3mm x 28.5mm (0.41in x 1.12in)
Weight
8 to 9 grams (0.28 to 0.32 ounces)
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Applications
Toys, calculators, cars alarms, garage door openers, security systems, remote controls, keyless entry systems, and tiny electronic devices
Disposal
Recycle according to local regulations to minimize environmental impact.
Certifications
ISO 9001, CE, RoHS compliant
Manufactured by
Energizer Holdings, Inc.
Packaging
Available in blister packs, bulk packs, and eco-friendly packaging options.

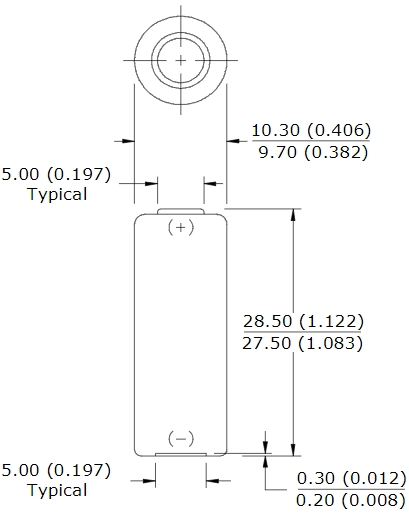

Dimensions of Energizer A23 Batteries

Here are the typical dimensions of the 23a 12v battery:

● Diameter: Approximately 10.3 millimeters (0.41 inches)

● Height: Approximately 28.5 millimeters (1.12 inches)




A23 Dimensions

A23 Dimensions



Advantages of Energizer A23 Batteries

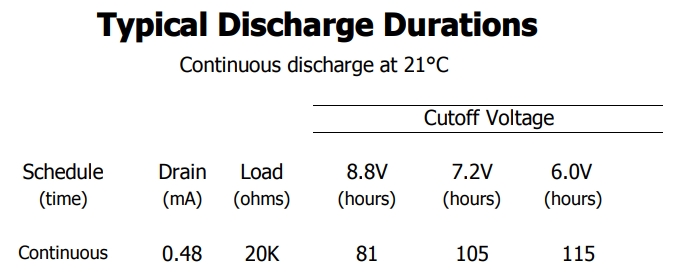

Typical Discharge Duration


1. High Voltage Output:

- Energizer A23 batteries are renowned for their high voltage output of 12 volts, making them particularly suitable for devices that require greater power. This elevated voltage ensures robust performance in applications where standard batteries may fall short. Devices such as remote controls, keyless entry systems, and security sensors benefit from the reliable power supplied by A23 batteries, enabling smooth operation and extended functionality.


2. Extended Shelf Life:

- One of the standout features of Alkaline 12V Batteries is their impressive shelf life, which spans several years. This extended shelf life makes them an excellent choice for consumers looking to stock up on batteries for future use. Whether purchased in bulk for commercial applications or kept on hand for household devices, A23 batteries retain their charge effectively over time, minimizing the need for frequent replacements and ensuring readiness when needed most.


3. Dependable and Consistent Performance:

- In the battery business, Energizer has established a solid reputation as a reliable name dedicated to excellence and innovation. The dependable performance offered by A23 batteries is evidence of this dedication to excellence. When it comes to powering regular household appliances or essential security systems, customers can depend on A23 batteries to provide the necessary power at the right moment. Users are reassured by the guarantee of dependable performance, which removes any worries about gadget malfunction or downtime as a result of battery problems.


4. Versatile Compatibility:

- A notable advantage of Energizer A23 batteries is their wide compatibility with a diverse range of devices. From remote controls and key fobs to security sensors and electronic gadgets, A23 batteries can power an array of devices commonly found in homes, businesses, and automotive applications. This versatility offers consumers convenience and flexibility, as they can rely on A23 batteries to meet their various energy needs without the hassle of purchasing multiple battery types for different devices.


5. Optimized Design and Construction:

- Energizer A23 batteries are meticulously engineered with an emphasis on efficiency, durability, and safety. Each battery is made to fulfill exacting performance requirements and specifications via the use of sophisticated production techniques and quality control procedures. Leak-resistant construction, durable casing materials, and reliable electrode designs contribute to the overall longevity and performance of A23 batteries, providing peace of mind to consumers who depend on them for powering their devices.


6. Trusted Brand Reputation:

- As a globally recognized brand with a rich heritage spanning decades, Energizer instills trust and confidence in consumers worldwide. The brand's commitment to quality, reliability, and innovation has earned it a loyal following and positioned Energizer A23 batteries as a preferred choice among discerning consumers. Whether for personal, commercial, or industrial use, Energizer A23 batteries embody the brand's legacy of excellence and leadership in the battery industry.


Energizer A23 batteries offer a host of advantages, including high voltage output, extended shelf life, reliable performance, versatile compatibility, optimized design, and the backing of a trusted brand reputation. These qualities combine to make A23 batteries a preferred energy solution for a wide range of devices and applications, meeting the diverse needs of consumers with efficiency, durability, and peace of mind.


Applications of Energizer A23 Batteries

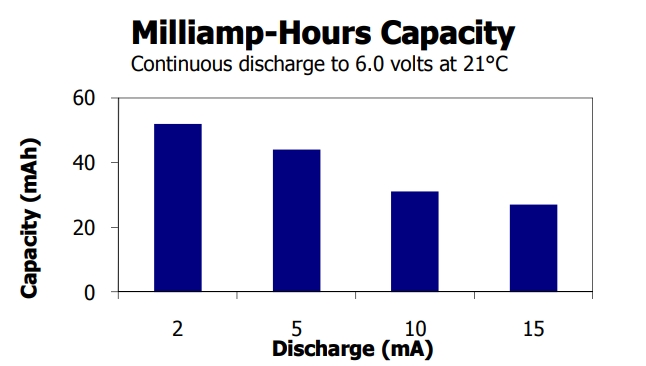

Milliamp-Hours Capacity


what is an a23 battery used for Some of the common applications include:


1. Remote Controls:

- Car Alarms: Modern car alarms often come with remote control functionality for arming, disarming, and activating various security features. Energizer A23 batteries are a popular choice for these remote controls due to their compact size, which fits snugly into the remote casing, and their reliable performance, ensuring that the remote operates effectively when needed.

- Garage Door Openers: To open and close the garage door from a distance, garage door openers often use remote controllers. Energizer A23 batteries power these remote controls, providing the necessary voltage to transmit signals to the garage door opener mechanism. Their longevity and stable performance make them a preferred option for homeowners and businesses relying on garage door automation.

- Remote-Controlled Toys: Many children's toys, such as remote-controlled cars, helicopters, and drones, rely on remote controls powered by Energizer A23 batteries. These batteries offer sufficient voltage to drive the motors and electronics within the toy while maintaining compact dimensions suitable for the handheld remote control unit.


2. Keyless Entry Systems:

- Vehicle Key Fobs: Keyless entry systems in vehicles have become increasingly common, offering convenience and security to drivers. The key fobs in these systems are powered by Energizer A23 batteries, which allow drivers to start, lock, and unlock their cars with a single button press. The small size of A23 batteries allows them to fit seamlessly into the key fob housing, while their reliable performance ensures uninterrupted access to the vehicle.


3.Third-party security devices:

- Motion Sensors: By identifying movement and setting off alerts or notifications, motion sensors are essential components of security systems. The power required to run these motion sensors is supplied by Energizer A23 batteries, guaranteeing ongoing monitoring and detection capabilities. A23 batteries allow motion sensors to work dependably in a variety of settings, whether they are positioned indoors or outdoors.

- Door/Window Alarms: Door and window alarms are essential components of home security systems, alerting homeowners to unauthorized entry attempts. These alarm systems are powered by Energizer A23 batteries, which guarantee that they will continue to function even in the event of a power loss or when they are not linked to the main electrical grid. A23 batteries work effectively in door and window alarm sensors because of their small size and extended shelf life.

- Security Cameras: Some wireless security cameras and surveillance systems rely on battery power for flexibility in placement and installation. Energizer A23 batteries can be used to power these security cameras, providing reliable performance and longevity for uninterrupted monitoring of properties and premises.

Energizer A23 batteries play a crucial role in various applications, including remote controls for car alarms and garage door openers, keyless entry systems in vehicles, and security devices such as motion sensors, door/window alarms, and security cameras. Their compact size, reliable performance, and long-lasting power make them a preferred choice for powering electronic devices that require high voltage in a small form factor.



Equivalent of Energizer A23 Batteries

While the A23 battery is manufactured by Energizer, there are equivalent batteries produced by other brands that can be used interchangeably in devices that require this type of battery. Some common equivalents include:

1. Duracell MN21: Manufactured by Duracell, the MN21 is a direct equivalent to the Energizer A23. It offers the same voltage and size specifications, making it compatible with devices that require an A23 battery.

2. Panasonic LRV08: Panasonic produces the LRV08 battery, which is another suitable alternative to the A23. Like the Energizer version, the Panasonic LRV08 is a 12-volt alkaline battery designed for use in small electronic devices.

3. GP 23A: GP Batteries manufactures the GP 23A, which is also compatible with devices that require an A23 battery. It provides the same voltage output and size, making it a suitable replacement option.

4. Vinnic L1028: Vinnic produces the L1028 battery, which is equivalent to the A23 in terms of voltage and size. It can be used in place of the Energizer A23 and is frequently found in a variety of electronic products.

5. Rayovac R23A: Rayovac offers the R23A battery, which is designed to provide the same performance as the A23 battery. It is a suitable alternative for powering devices that require a 12-volt alkaline battery.

It's important to note that while these batteries are considered 23a battery equivalent, slight variations in performance or longevity may occur depending on the specific brand and manufacturing processes. However, they should generally function effectively in devices that require an A23 battery. When replacing batteries, always ensure that the voltage, size, and polarity match the specifications of the original battery recommended by the device manufacturer.

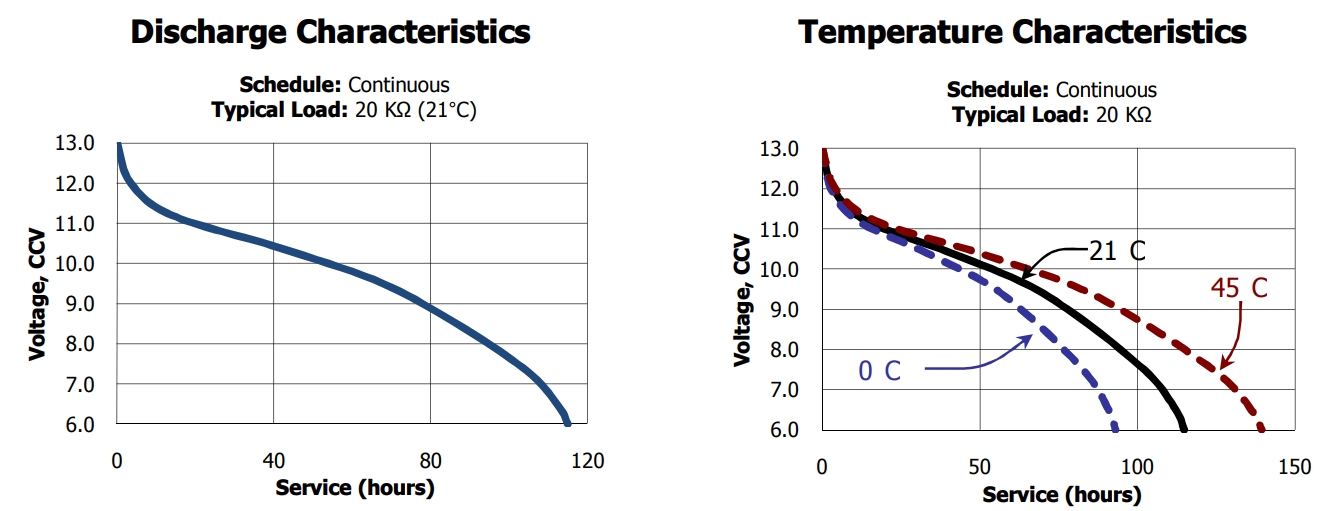

Electrical Characteristics of Energizer A23 Batteries


A23 Electrical Characteristics

1. Discharge Characteristics:

- Voltage: The nominal voltage of an Energizer A23 battery is 12 volts, which remains relatively stable throughout most of its discharge cycle.

- Capacity: An A23 battery's capacity varies based on usage and load circumstances. Typically, they have a capacity ranging from around 50mAh to 55mAh.

- Discharge Rate: A23 batteries are designed to deliver relatively low current compared to larger batteries.They work well in low-power applications where a constant, low current is needed for a prolonged amount of time.

- Voltage Decay: As the battery discharges, its voltage gradually decreases. On the other hand, alkaline batteries such as the A23 have a reasonably flat discharge curve, which implies that the voltage stays relatively constant until the battery is almost at the end of its life.


2. Temperature Characteristics:

- Operating Temperature Range: A23 batteries are designed to operate within a specific temperature range, typically from around -20°C to 60°C (-4°F to 140°F). Operating the battery outside this range can affect its performance and lifespan.

- Cold Temperature Performance: Alkaline batteries, including the A23, exhibit reduced performance in cold temperatures. The chemical reactions in the battery slow down at lower temperatures, lowering the voltage and capacity. In extreme cold, the battery may even become temporarily unusable until it warms up.

- High Temperature Performance: The lifespan and performance of batteries can also be impacted by excessive heat. Elevated temperatures hasten the chemical reactions occurring within the battery, resulting in an accelerated self-discharge and a diminished total capacity. The battery may leak or maybe shatter after being exposed to extreme temperatures for an extended period of time.


To guarantee optimum performance and longevity, A23 batteries must be used and stored within the suggested temperature range. Additionally, always handle expended batteries and dispose of them in accordance with the manufacturer's instructions.




Tips for Usage and Storag of Energizer A23 Batteries


1. Optimal Storage Conditions:

- Temperature and Humidity: Store 23a 12v alkaline battery in a cool, dry place with moderate temperature and humidity levels. Avoid exposure to extreme heat or cold, as high temperatures can accelerate battery discharge and reduce shelf life, while excessive moisture can lead to corrosion and leakage.

- Avoid Direct Sunlight: Direct sunlight can also adversely affect battery performance and longevity. Store batteries away from windows or areas exposed to sunlight to prevent overheating and potential damage to the battery cells.

- Proper Packaging: Keep batteries in their original packaging or store them in dedicated battery storage containers to protect them from physical damage and environmental factors. Avoid storing batteries loose in drawers or containers where they can come into contact with metal objects or other batteries, which may cause short circuits.


2. Compatibility Checking:

- Read Manufacturer's Recommendations: Before replacing batteries in a device, refer to the manufacturer's recommendations and specifications to ensure compatibility with Energizer A23 batteries. Some devices may require specific battery types or configurations, and using the wrong batteries can lead to improper operation or damage to the device.

- Voltage and Size Compatibility: Check the voltage and size requirements of the device's battery compartment to ensure they match the specifications of Energizer A23 batteries. Using batteries with incorrect voltage or dimensions can result in poor performance or incompatibility with the device.


3. Proper Usage Guidelines:

- Follow Device Instructions: Adhere to the usage instructions provided by the device manufacturer to maximize battery performance and longevity. Avoid overloading devices or using batteries beyond their recommended capacity, as this can lead to premature depletion or damage to both the batteries and the device.

- Replace Batteries Promptly: Monitor battery performance and replace Energizer A23 batteries promptly when signs of diminished power or performance are observed. Avoid leaving depleted batteries in devices for extended periods, as this can lead to leakage, corrosion, and potential damage to the device.

- Handle with Care: Handle Energizer A23 batteries with care to prevent physical damage or short circuits. Avoid dropping or crushing batteries, and never attempt to disassemble or modify them, as this can result in leakage of electrolyte or release of hazardous materials.


4. Disposal that Respects the Environment:

- Recycling Recommendations: It is important to dispose of spent batteries responsibly by adhering to local laws and recycling recommendations. Used batteries can be properly recycled and disposed of in an eco-friendly way at drop-off locations or battery recycling programs offered by many cities.

- Avoid Landfill Disposal: Avoid disposing of batteries in regular household waste or landfill, as they contain materials that can be harmful to the environment if not properly recycled. Reusing old batteries minimizes the negative effects of battery disposal on the environment, saves resources, and lowers pollutants.

By following these detailed tips for the usage and storage of Energizer A23 batteries, consumers can ensure optimal performance, longevity, and safety while minimizing environmental impact and maximizing resource efficiency.


Conclusion

Energizer A23 miniature alkaline 12V batteries are a reliable power source for a variety of devices, offering high voltage output, long-lasting performance, and wide compatibility. Whether powering remote controls, keyless entry systems, or security devices, these batteries consistently deliver the power needed for seamless operation. With proper usage and storage, Energizer A23 batteries are an indispensable energy solution for consumers worldwide.
