Texas Instruments XTR117AIDGKR

Part No.:: XTR117AIDGKR

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: XTR117AIDGKR.pdf

Description:: IC CURRENT TRANSMITTER 8VSSOP

In Stock:: 2842

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XTR117AIDGKR Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Current Transmitter
InputType:
Voltage
OutputType:
Voltage
Current-Supply:
20 mA
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

XTR117AIDGKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XTR117AIDGKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XTR117AIDGKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XTR117AIDGKR information

Views：

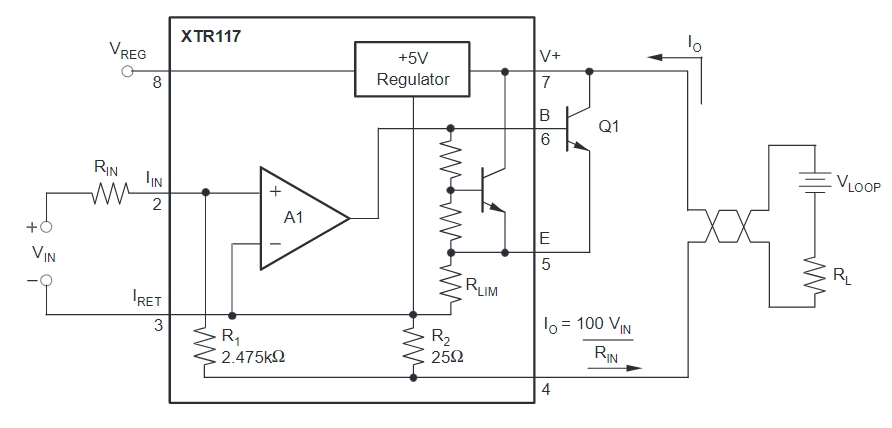

XTR117AIDGKR Typical application Circuitry

XTR117AIDGKR

The XTR117AIDGKR is a precision current loop transmitter designed by Texas Instruments, specifically intended for 4-20mA current loop systems, which are standard in industrial control and automation. The device is part of TI's XTR117 series, which are known for their reliable performance in transmitting analog signals over long distances with high immunity to noise – a common requirement in industrial environments.Here are the key features and functionalities of the XTR117AIDGKR:

1. 4-20mA Current Loop Transmitter: It converts a voltage input into a current output, generating a 4-20mA signal that represents the analog level of the input signal.

2. Low-Side Current Sourcing: The XTR117AIDGKR operates on the low side of the loop, which means it sources current that is returned to a ground reference.

3. Wide Supply Range: The device operates with a wide supply voltage range from 7.5V to 36V, which makes it flexible for use with various power supplies typically found in industrial settings.

4. High Accuracy: The XTR117AIDGKR provides high accuracy for current transmission with low offset and gain errors, which are critical for precise control applications.

5. Low Quiescent Current: Its design ensures a low quiescent current, which helps to minimize the power consumption of the system.

6. Sensor Excitation: It includes a 5V regulator that can be used to provide excitation for 2-wire transmitters or other circuitry within the loop.

7. Temperature Range: The device is specified for operation from -40°C to +85°C, which suits various challenging industrial environments.

8. Package and Suffix: The "AIDGKR" denotes the package type and ordering options. "DGK" indicates an 8-pin VSSOP (Very Small Shrink Small Outline Package), which is a surface-mount package that is smaller than standard SOIC. The "R" at the end signifies that this IC is supplied on a reel, which is used for automated machine placement during manufacturing.

9. Ease of Use: The XTR117AIDGKR is designed for simple external wiring, often requiring only a few external components to set up, such as a single gain-setting resistor to configure the loop current.

10. Applications: It is ideal for transmitting 4-20mA signals in industrial sensors, instrumentation, and process control systems.

The XTR117AIDGKR is a robust and reliable choice for systems designers who need to integrate 4-20mA current loop communication in their industrial products and applications. The packaging and suffix indicate that this particular version of the XTR117 is optimized for volume manufacturing and compact device design.
