Winbond Electronics W25Q64FVSSIG TR

Part No.:: W25Q64FVSSIG TR

Manufacturer:: Winbond Electronics

Package:: 8-SOIC (0.209, 5.30mm Width)

Datasheet:: W25Q64FVSSIG TR.pdf

Description:: IC FLASH 64MBIT SPI/QUAD 8SOIC

In Stock:: 2160

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

W25Q64FVSSIG TR Specifications

Package/Case:
8-SOIC (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SpiFlash®
ProductStatus:
Obsolete
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH - NOR
MemorySize:
64Mb (8M x 8)
MemoryInterface:
SPI - Quad I/O, QPI
ClockFrequency:
104 MHz
WriteCycleTime-WordPage:
50µs, 3ms
AccessTime:
-
Voltage-Supply:
2.7V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

W25Q64FVSSIG TR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including W25Q64FVSSIG TR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for W25Q64FVSSIG TR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

W25Q64FVSSIG TR information

Views：

W25Q64FVSSIG TR Typical application Circuitry

W25Q64FVSSIG TR

The W25Q64FVSSIG TR is a Serial NOR Flash memory chip, a part of the Winbond W25Q series. This chip stands out for its balance of storage capacity, speed, and compact size, making it a popular choice for various electronic applications.

Key Characteristics

- Moderate Storage Capacity: Offers 64M-bit (8 MB) of memory, suitable for a range of applications requiring medium-scale data storage.

- Flexible Interface: Supports Standard SPI, Dual SPI, and Quad SPI for versatile and high-speed data communication.

- Voltage Operation Range: Functions within a 2.7V to 3.6V range, adaptable to different electronic environments.

- Speed Efficiency: Provides efficient read/write speeds, essential for quick data access and storage.

Application Scenarios

The W25Q64FVSSIG TR is commonly used in:

- Consumer electronics, including MP3 players and digital cameras.

- Portable computing devices like laptops and tablets.

- Wireless communication systems, including modems and routers.

- Automotive applications for data storage in navigation systems.

- Industrial control units requiring reliable flash memory.

Circuit Integration: Wireless Communication System

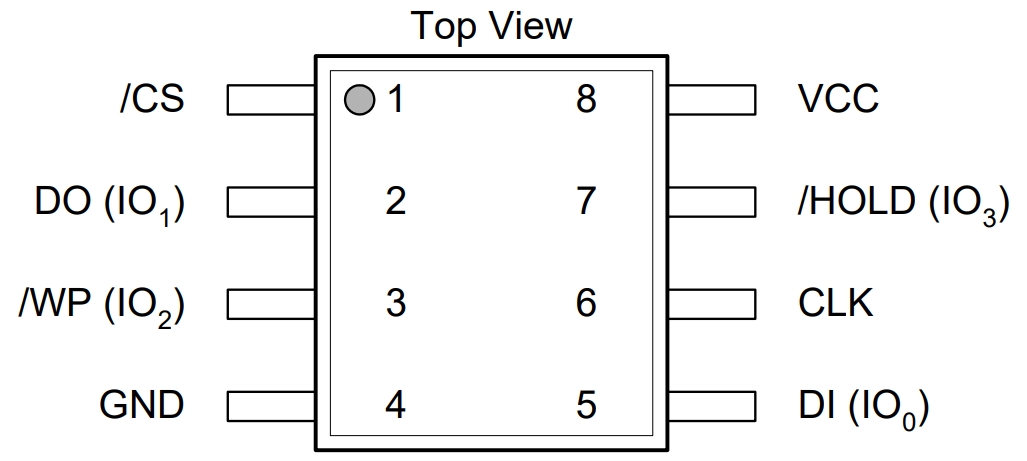

1. Power Supply Configuration: Attach the W25Q64FVSSIG TR VCC pin (Pin 8) to a 3.3V power source. Ground pin (Pin 4) should be connected to the system ground.

2. SPI Interface Connection: Interface the W25Q64FVSSIG TR chip's DO (Data Output, Pin 2), DI (Data Input, Pin 5), CLK (Clock, Pin 6), and CS (Chip Select, Pin 1) with the corresponding SPI pins of a microcontroller in the communication system.

3. Hold and Write Protection: Connect the HOLD pin (Pin 7) and WP pin (Pin 3) to GPIOs for additional functionality, or tie them to VCC if not in use.

4. Data Management Protocol: Implement a protocol in the microcontroller for managing data storage and retrieval, utilizing the chip's read and write commands efficiently.

5. Software and Firmware Development: Develop firmware that is compatible with the system's operating requirements and optimizes the use of the memory chip.

Design Requirements:

- Stable Power Source: To avoid data corruption, make sure the power source is dependable.

- PCB Layout for Signal Integrity: Design the PCB to maintain signal integrity, crucial for high-speed SPI communication.

- Thermal Management: Implement measures for effective heat dissipation.

- Protection Against ESD: Include ESD protection features to safeguard the chip during operation and handling.

Integrating the W25Q64FVSSIG TR into a wireless communication system involves careful planning in terms of power supply, interface setup, data handling, and firmware compatibility. This chip's combination of size, capacity, and speed makes it ideal for applications where efficient data storage and fast access are required.
