What is the Additional Feature ?

Name: VNH2SP30TR-E
Brand: STMicroelectronics
SKU: VNH2SP30TR-E
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics VNH2SP30TR-E

Part No.:: VNH2SP30TR-E

Manufacturer:: STMicroelectronics

Package:: 30-MPSO, MultiPowerSO

Datasheet:: VNH2SP30TR-E.pdf

Description:: IC MTR DRV 5.5-16V MULTIPWRSO-30

In Stock:: 2333

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VNH2SP30TR-E Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
STripFET™, VIPower™
ProductStatus:
Obsolete
MotorType-Stepper:
-
MotorType-ACDC:
Brushed DC
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (2)
Interface:
PWM
Technology:
Power MOSFET
StepResolution:
-
Applications:
Automotive
Current-Output:
30A
Voltage-Supply:
5.5V ~ 16V
Voltage-Load:
5.5V ~ 16V
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

VNH2SP30TR-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VNH2SP30TR-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VNH2SP30TR-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VNH2SP30TR-E information

Views：

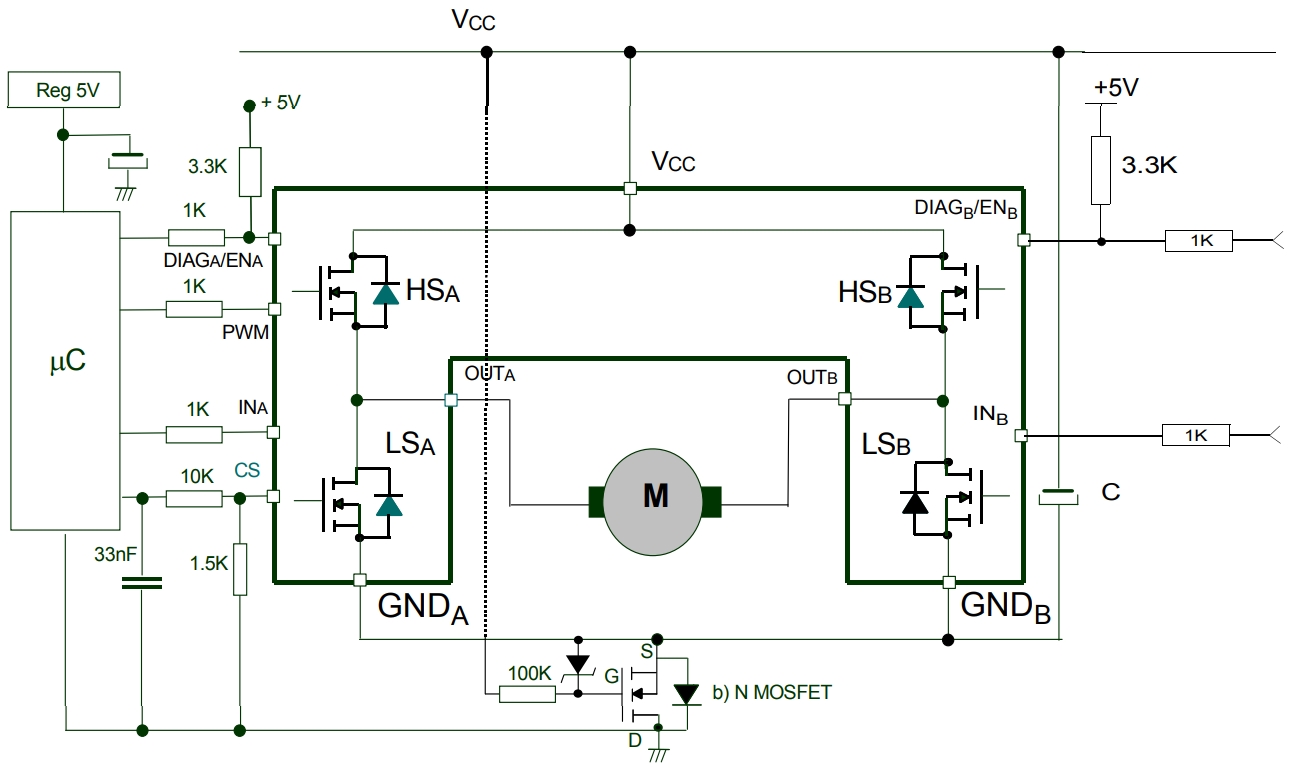

VNH2SP30TR-E Typical application Circuitry

VNH2SP30TR-E

The VNH2SP30TR-E is an integrated circuit from the family of full-bridge motor drivers, specifically designed to deliver high current and high voltage capabilities, making it well-suited for automotive and industrial motor control applications. This driver is particularly recognized for its robustness in driving heavy loads, like those in automotive DC motors, thanks to its efficient thermal management and diagnostic features. Here's a step-by-step guide to connecting and utilizing the VNH2SP30TR-E in a circuit:

1. Motor Connection: The VNH2SP30TR-E is designed to connect directly to a DC motor. The motor's terminals should be connected to the OUT1 and OUT2 pins of the IC. This setup enables the full-bridge driver to control the motor's direction and speed effectively.

2. Power Supply: The power supply must be connected to the VIN pin, ensuring that the voltage level is within the IC's specified range for optimal operation. The VNH2SP30TR-E is designed to handle high current and voltage, so it's crucial to use a power supply that can deliver the necessary power without causing thermal stress.

3. Logic Inputs: The VNH2SP30TR-E is controlled via logic input pins (INA, INB). These pins determine the motor's rotation direction and braking. Applying the appropriate logic levels to these pins will control the motor's operation, providing forward, reverse, and brake functionalities.

4. Current Sensing: The VNH2SP30TR-E includes a current sensing output (CS) pin, which provides feedback proportional to the motor's current draw. This feature is invaluable for monitoring the motor's load and performance, allowing for real-time adjustments or protective measures in case of overcurrent conditions.

5. PWM Control: To control the motor's speed, a PWM signal can be applied to the PWM input pin. Varying the duty cycle of this signal will adjust the motor's speed, providing a simple and effective speed control mechanism.

6. Thermal and Overcurrent prevention: The VNH2SP30TR-E has built-in functionality for both overcurrent and thermal shutdown prevention. These ensure dependable and long-lasting performance by protecting the IC and the motor from potential harm brought on by excessive heat or current.

By integrating the VNH2SP30TR-E using these guidelines, one can achieve efficient and reliable control over high-current DC motors, leveraging the IC's capabilities for advanced motor management in various applications, especially in the automotive sector.

VNH2SP30TR-E FAQ

1. How to order VNH2SP30TR-E on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that VNH2SP30TR-E is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the VNH2SP30TR-E. All suppliers must pass our qualification reviews before they can publish their products including VNH2SP30TR-E on icwhale.com; we pay more attention to the channels and quality of VNH2SP30TR-E products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the VNH2SP30TR-E price and inventory displayed accurate?

The price and inventory of VNH2SP30TR-E fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of VNH2SP30TR-E?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the VNH2SP30TR-E we delivered, we will accept the replacement or return of the VNH2SP30TR-E only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of VNH2SP30TR-E.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
