STMicroelectronics VIPER22ASTR-E

Part No.:: VIPER22ASTR-E

Manufacturer:: STMicroelectronics

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: VIPER22ASTR-E.pdf

Description:: IC OFFLINE SWITCH FLYBACK 8SOIC

In Stock:: 3590

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VIPER22ASTR-E Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
VIPER™
ProductStatus:
Active
OutputIsolation:
Isolated
InternalSwitch(s):
Yes
Voltage-Breakdown:
730V
Topology:
Flyback
Voltage-StartUp:
14.5 V
Voltage-Supply(Vcc/Vdd):
8V ~ 38V
DutyCycle:
-
Frequency-Switching:
60kHz
Power(Watts):
7 W
FaultProtection:
Current Limiting, Over Temperature, Over Voltage
ControlFeatures:
-
OperatingTemperature:
-40°C ~ 150°C (TC)

VIPER22ASTR-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VIPER22ASTR-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VIPER22ASTR-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VIPER22ASTR-E information

Views：

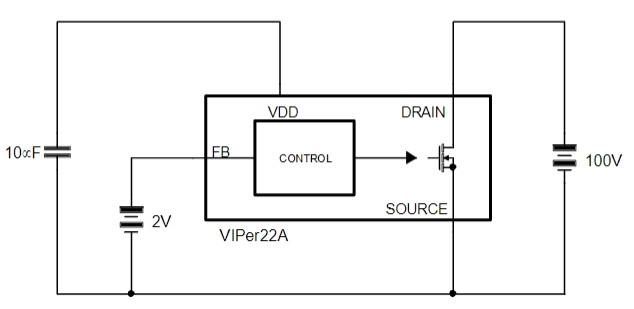

VIPER22ASTR-E Typical application Circuitry

VIPER22ASTR-E

The VIPER22ASTR-E is an integrated high-voltage converter designed by STMicroelectronics, tailored for creating compact switched-mode power supplies (SMPS) and AC-DC converters. It is part of the VIPer series, and the suffixes "STR" and "E" usually denote the package type and environmental compliance respectively.Here are the features and functionalities of the VIPER22ASTR-E:

1. Fixed Frequency Oscillator: The device operates at a fixed switching frequency, simplifying the power supply design and component selection process.

2. Wide Input Voltage Range: The VIPER22ASTR-E is capable of handling a broad range of input voltages, allowing it to work across different mains voltage standards.

3. Integrated Power MOSFET: The device integrates a power MOSFET for the switching operation, reducing the need for external components and simplifying circuit design.

4. Low Standby Power Consumption: The VIPER22ASTR-E is designed to have minimal standby power consumption, aligning with energy efficiency requirements.

5. Protection Mechanisms: The device includes protective features such as over-temperature protection, over-current protection, and over-voltage protection to enhance reliability.

6. Soft Start Feature: The soft start functionality ensures a gradual ramp-up of the output voltage during startup, minimizing inrush current and stress on components.

7. SO-8 Package: The "STR" in the part number indicates that this IC is available in an SO-8 surface mount package.

8. Internal Feedback Circuitry: The device has internal feedback mechanisms to regulate the output voltage, minimizing the need for additional external components.

9. Flexible Design: The VIPER22ASTR-E can be used in various power supply topologies such as flyback, buck, and forward converters.

10. Applications: Suitable for a range of applications, such as AC-DC adapters for consumer electronics, auxiliary power supplies in white goods, and standby power supplies for computers.

11. Environmental Compliance: The "-E" suffix typically indicates compliance with environmental standards or directives, such as RoHS (Restriction of Hazardous Substances).

The VIPER22ASTR-E allows designers to create compact, efficient, and reliable power supplies with fewer external components while ensuring compliance with environmental and energy-saving standards. For a comprehensive understanding of specifications, electrical characteristics, and application circuits, it's recommended to consult the datasheet for the VIPER22ASTR-E provided by STMicroelectronics.
