STMicroelectronics VIPER22AS

Part No.:: VIPER22AS

Manufacturer:: STMicroelectronics

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: VIPER22AS.pdf

Description:: IC OFFLINE SWITCH FLYBACK 8SOIC

In Stock:: 2885

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VIPER22AS Specifications

Packaging:
Tube
Series:
VIPER™
ProductStatus:
Obsolete
OutputIsolation:
Isolated
InternalSwitch(s):
Yes
Voltage-Breakdown:
730V
Topology:
Flyback
Voltage-StartUp:
14.5 V
Voltage-Supply(Vcc/Vdd):
8V ~ 38V
DutyCycle:
-
Frequency-Switching:
60kHz
Power(Watts):
7 W
FaultProtection:
Current Limiting, Over Temperature, Over Voltage
ControlFeatures:
-
OperatingTemperature:
-40°C ~ 150°C (TC)

VIPER22AS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VIPER22AS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VIPER22AS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VIPER22AS information

Views：

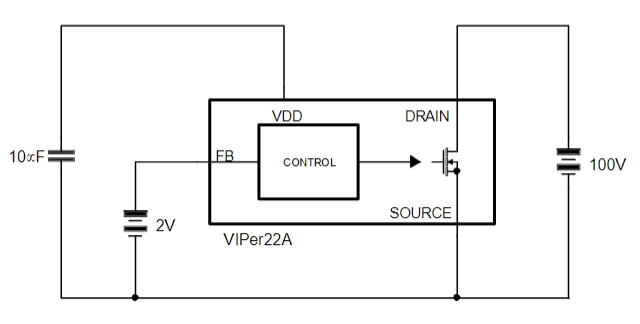

VIPER22AS Typical application Circuitry

VIPER22AS

The VIPER22AS is a high-voltage integrated circuit designed by STMicroelectronics, belonging to the VIPer series. It's an offline converter with an integrated power MOSFET, used to create compact switched-mode power supplies (SMPS) and converters. It is suitable for a range of low power applications such as AC-DC adapters, standby power supplies, and auxiliary supplies.Here's a description of its key features and functionalities:

1. Fixed Frequency Oscillator: The VIPER22AS operates at a fixed frequency, providing stability and simplifying the design process of power supplies.

2. Wide Input Voltage Range: The device is designed to handle a wide range of input voltages, allowing flexibility in designing power supplies for different regions with varying mains voltage standards.

3. Integrated Power MOSFET: The VIPER22AS integrates a power MOSFET, which reduces the need for external components and simplifies the overall design of the power supply.

4. Low Standby Power Consumption: The device is known for its low standby power consumption, which is beneficial for applications that need to comply with energy efficiency standards.

5. Protection Mechanisms: The VIPER22AS includes built-in protection mechanisms such as over-temperature protection, over-current protection, and over-voltage protection, enhancing the reliability of the power supply.

6. Soft Start Feature: The device incorporates a soft start functionality that limits the inrush current during the startup phase, reducing stress on components.

7. Package: The VIPER22AS is typically available in an 8-pin SOIC or DIP package, which is suitable for both surface mount and through-hole PCB mounting.

8. Internal Feedback Circuitry: The device has internal feedback circuitry to regulate the output voltage, reducing the need for additional external components.

9. Flexible Design: The VIPER22AS can be used in various power supply topologies such as flyback, buck, and forward converters.

10. Applications: The device is suitable for a wide range of applications including AC-DC adapters for consumer electronics, auxiliary power supplies for white goods, and standby power supplies for computers and notebooks.

11. Energy Efficient: The VIPER22AS can be used to design energy-efficient power supplies that comply with energy-saving norms and regulations.

The VIPER22AS provides designers with a means to create compact, efficient, and reliable power supplies while reducing component count and ensuring compliance with energy-saving standards. For detailed specifications, pin configurations, electrical characteristics, and application circuits, it is recommended to consult the datasheet for the VIPER22AS provided by STMicroelectronics.
