STMicroelectronics VIPER22ADIP-E

Part No.:: VIPER22ADIP-E

Manufacturer:: STMicroelectronics

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: VIPER22ADIP-E.pdf

Description:: IC OFFLINE SWITCH FLYBACK 8DIP

In Stock:: 3917

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VIPER22ADIP-E Specifications

Packaging:
Tube
Series:
VIPER™
ProductStatus:
Active
OutputIsolation:
Isolated
InternalSwitch(s):
Yes
Voltage-Breakdown:
730V
Topology:
Flyback
Voltage-StartUp:
14.5 V
Voltage-Supply(Vcc/Vdd):
8V ~ 38V
DutyCycle:
-
Frequency-Switching:
60kHz
Power(Watts):
12 W
FaultProtection:
Current Limiting, Over Temperature, Over Voltage
ControlFeatures:
-
OperatingTemperature:
-40°C ~ 150°C (TC)

VIPER22ADIP-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VIPER22ADIP-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VIPER22ADIP-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VIPER22ADIP-E information

Views：

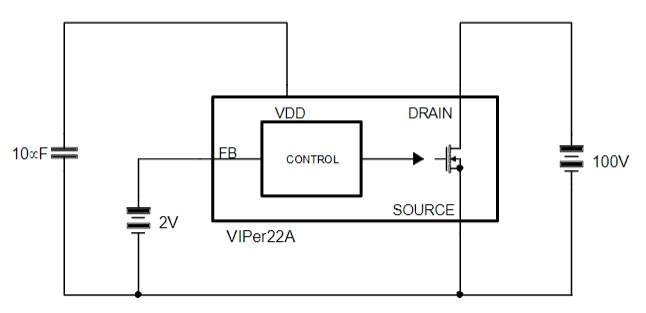

VIPER22ADIP-E Typical application Circuitry

VIPER22ADIP-E

The VIPER22ADIP-E is a high-voltage converter from STMicroelectronics, designed for constructing low-power switched-mode power supplies (SMPS) and AC-DC converters. It belongs to the VIPer series of converter ICs. The "-E" suffix in the part number typically refers to the environmental grade of the component, indicating that it may comply with certain environmental standards or directives, such as RoHS.Here are some key features and functionalities of the VIPER22ADIP-E:

1. Fixed Frequency Oscillator: The device operates at a fixed frequency, providing stable and consistent switching frequency, which simplifies the design of power supplies.

2. Wide Input Voltage Range: The VIPER22ADIP-E can handle a broad range of input voltages, allowing it to cater to different mains voltage standards across regions.

3. Integrated Power MOSFET: It integrates a power MOSFET that facilitates the switching operation, thereby simplifying the circuit design by reducing the number of external components required.

4. Low Standby Power Consumption: The device is designed to have minimal standby power consumption, making it suitable for applications that require energy efficiency and adherence to power-saving regulations.

5. Protection Mechanisms: The VIPER22ADIP-E incorporates several protection features such as over-temperature protection, over-current protection, and over-voltage protection, enhancing the reliability and safety of the power supply.

6. Soft Start Feature: This functionality ensures a gradual increase in the output voltage during startup, reducing the initial surge of current and minimizing stress on the components.

7. DIP Package: The "DIP" in the part number indicates that this IC is available in a Dual In-Line Package, suitable for through-hole mounting on PCBs.

8. Internal Feedback Circuitry: The device includes internal feedback mechanisms to regulate the output voltage, eliminating the need for additional external components.

9. Flexible Design: The VIPER22ADIP-E can be employed in various power supply topologies, including flyback, buck, and forward converters.

10. Applications: It is ideal for applications such as AC-DC adapters for consumer electronics, auxiliary power supplies in white goods, standby power supplies for computers, and more.

11. Environmental Compliance: The "-E" suffix may indicate compliance with environmental standards or directives, such as RoHS (Restriction of Hazardous Substances).

Designers can use the VIPER22ADIP-E to create compact, efficient, and reliable power supplies while ensuring compliance with environmental standards and energy-saving norms. For detailed specifications, electrical characteristics, and application circuits, it is recommended to consult the datasheet for the VIPER22ADIP-E provided by STMicroelectronics.
