Name: VIPER06LSTR
Brand: STMicroelectronics
SKU: VIPER06LSTR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics VIPER06LSTR

Part No.:: VIPER06LSTR

Manufacturer:: STMicroelectronics

Package:: 10-SOP (0.154, 3.90mm Width)

Datasheet:: VIPER06LSTR.pdf

Description:: IC OFFLINE SWITCH MULT TOP 10SSO

In Stock:: 2553

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VIPER06LSTR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
VIPer™ plus
ProductStatus:
Active
OutputIsolation:
Either
InternalSwitch(s):
Yes
Voltage-Breakdown:
800V
Topology:
Buck, Flyback
Voltage-StartUp:
13 V
Voltage-Supply(Vcc/Vdd):
11.5V ~ 23.5V
DutyCycle:
70%
Frequency-Switching:
60kHz
Power(Watts):
8 W
FaultProtection:
Current Limiting, Open Loop, Over Temperature
ControlFeatures:
-
OperatingTemperature:
-40°C ~ 150°C (TJ)

VIPER06LSTR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VIPER06LSTR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VIPER06LSTR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VIPER06LSTR information

Views：

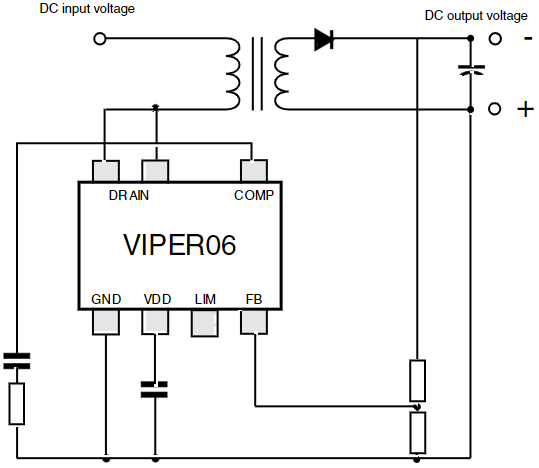

VIPER06LSTR Typical application Circuitry

VIPER06LSTR

The VIPER06LSTR is a part of STMicroelectronics' VIPerPlus series, known for its high-voltage converters with a built-in 800 V avalanche-rugged power MOSFET. The VIPER06LSTR is specifically designed for switched-mode power supply applications, offering a compact and efficient solution for AC/DC converters. This device is widely used in applications like home appliances, industrial control systems, and standby power supplies, thanks to its reliability, power efficiency, and integration of multiple protection features.

1. Power Supply and Drain Connection: The VIPER06LSTR operates with a high-voltage supply connected to its DRAIN pin. This pin is typically connected directly to the rectified mains voltage and is capable of handling up to 800V. The internal power MOSFET of the VIPER06LSTR switches this high voltage to regulate the output.

2. Grounding for Stability: The SOURCE pin of the VIPER06LSTR is the reference ground for the internal control circuitry and should be connected to the power supply ground. This connection is essential for the stability and proper operation of the device.

3. Feedback and Control: The VIPER06LSTR features a FEEDBACK (FB) pin that is used to control the output voltage or current. This pin typically connects to a voltage divider or a current sensing resistor from the output, allowing the internal control circuit to regulate the output accurately.

4. Supply Voltage for the Internal Circuit: The VDD pin provides the supply voltage for the internal control circuitry of the VIPER06LSTR. This pin is often connected to an auxiliary winding of the transformer or through a resistor from the high-voltage rail, with a capacitor to ground for stabilization.

5. Startup and Standby Management: The VIPER06LSTR integrates a high-voltage startup circuit connected to the DRAIN pin and a low consumption standby mode, making it efficient for applications with energy-saving requirements.

6. Current Limiting and Protection Features: The device includes an over-current protection circuit connected to the CURRENT LIMIT (ILIM) pin. This protection feature helps prevent damage under overload conditions.

7. Thermal Management: While the VIPER06LSTR is designed for efficiency, it is still important to consider thermal management in the system design, especially when operating at high power levels or in enclosed spaces.

8. PCB Layout and Signal Integrity: Careful PCB layout is crucial to ensure proper operation of the VIPER06LSTR. This includes considerations for high-voltage isolation, minimizing trace inductances, and ensuring good thermal paths for heat dissipation.

In summary, integrating the VIPER06LSTR into a power supply system requires attention to high-voltage handling, grounding, feedback control, supply voltage stabilization, startup and standby management, current limiting, thermal management, and careful PCB layout. These considerations are key to harnessing the efficiency and reliability of the VIPER06LSTR in AC/DC power conversion applications.
