Texas Instruments ULN2803AN

Part No.:: ULN2803AN

Manufacturer:: Texas Instruments

Package:: 18-DIP (0.300, 7.62mm)

Datasheet:: ULN2803AN.pdf

Description:: TRANS 8NPN DARL 50V 0.5A 18DIP

In Stock:: 3824

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ULN2803AN Specifications

Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
TransistorType:
8 NPN Darlington
Current-Collector(Ic)(Max):
500mA
Voltage-CollectorEmitterBreakdown(Max):
50V
VceSaturation(Max)@IbIc:
1.6V @ 500µA, 350mA
Current-CollectorCutoff(Max):
-
DCCurrentGain(hFE)(Min)@IcVce:
-
Power-Max:
-
Frequency-Transition:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Through Hole

ULN2803AN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ULN2803AN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ULN2803AN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ULN2803AN information

Views：

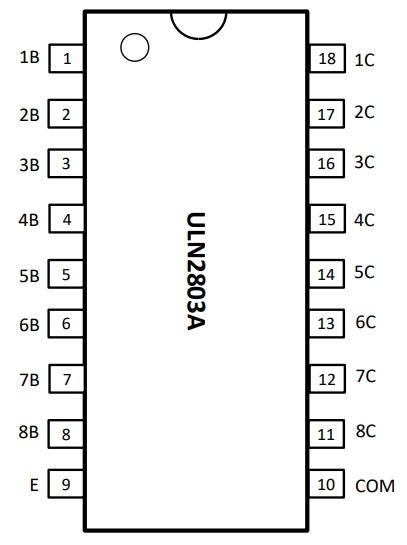

ULN2803AN Typical application Circuitry

ULN2803AN

The ULN2803AN is a Darlington transistor array chip, designed for driving high-voltage and high-current loads. It's particularly effective for interfacing with microcontroller outputs that cannot directly drive larger loads.

Key Features of the ULN2803AN:

1. Multiple Darlington Pairs: The ULN2803AN consists of eight Darlington pairs, enabling it to drive multiple outputs.

2. High Current Handling: Each channel can handle up to 500mA.

3. High Voltage Tolerance: The chip can tolerate up to 50V across its outputs.

4. Built-In Flyback Diodes: These diodes provide protection against inductive voltage spikes.

Application Scenarios for the ULN2803AN:

- Driving Relays or Solenoids: In automation systems for controlling power to mechanical devices.

- LED Displays: For controlling large arrays of LEDs in signage or display boards.

- Stepper Motors: In precision control devices like 3D printers or CNC machines.

Specific Application Scenario: Controlling LED Arrays in a Display

In a large LED display, the ULN2803AN can be used to control multiple LED arrays.

Detailed Circuit Connection for the ULN2803AN:

1. Input from Controller:

- Connect the input pins (1IN-8IN) of the ULN2803AN to the output pins of a microcontroller or LED controller.

2. Output to LED Arrays:

- Attach the output pins (1OUT-8OUT) of the ULN2803AN to the LED arrays.

3. Power Supply Configuration:

- The common pin (COM) of the ULN2803AN should be connected to the positive side of the power supply, suitable for driving the LEDs.

4. Grounding:

- Ensure the ground of the ULN2803AN is connected to the system's ground.

Design Considerations with the ULN2803AN:

1. Current Limitations: Verify that the current demand of each LED array does not exceed the 500mA per channel limit.

2. Voltage Matching: Ensure the voltage levels are suitable for both the ULN2803AN and the LED arrays.

3. Thermal Management: Depending on the usage, the ULN2803AN may need additional heat dissipation measures.

4. Signal Integrity: Maintain stable and noise-free signals from the controller to the ULN2803AN for precise LED control.

5. Protection Circuits: Although the ULN2803AN includes flyback diodes, consider additional protective measures like overvoltage and reverse polarity protection, especially in larger or more complex LED setups.

6. PCB Layout: Carefully design the PCB to minimize the path length between the ULN2803AN, the controller, and the LED arrays, reducing potential signal degradation and electromagnetic interference.

Utilizing the ULN2803AN in a large LED display system provides an efficient solution for controlling multiple LED arrays, enhancing the display's capabilities and reliability, as long as these design guidelines are meticulously adhered to.
