What is the Additional Feature ?

Name: ULN2803ADW-P
Brand: Texas Instruments
SKU: ULN2803ADW-P
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments ULN2803ADW-P

Part No.:: ULN2803ADW-P

Manufacturer:: Texas Instruments

Package:: 18-SOIC (0.295, 7.50mm Width)

Datasheet:

Description:: IC

In Stock:: 2897

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ULN2803ADW-P Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Obsolete
TransistorType:
8 NPN Darlington
Current-Collector(Ic)(Max):
500mA
Voltage-CollectorEmitterBreakdown(Max):
50V
VceSaturation(Max)@IbIc:
1.6V @ 500µA, 350mA
Current-CollectorCutoff(Max):
50µA
DCCurrentGain(hFE)(Min)@IcVce:
-
Power-Max:
-
Frequency-Transition:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

ULN2803ADW-P this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ULN2803ADW-P price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ULN2803ADW-P to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ULN2803ADW-P information

Views：

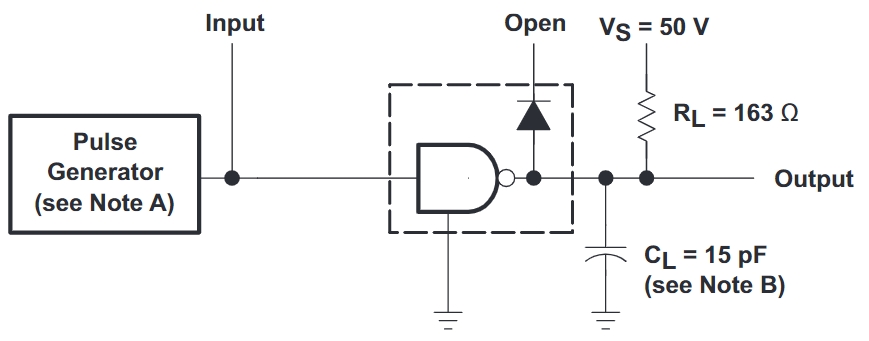

ULN2803ADW-P Typical application Circuitry

ULN2803ADW-P

The ULN2803ADW-P is an integrated circuit commonly used as a Darlington transistor array. It's designed for driving high-current loads with high-voltage outputs, making it suitable for interfacing with logic systems like microcontrollers.

Key Features of the ULN2803ADW-P:

1. Multiple Darlington Transistors: The ULN2803ADW-P contains eight Darlington transistors, allowing it to drive multiple outputs simultaneously.

2. High Voltage and Current Handling: It can manage output voltages up to 50V and currents up to 500mA per channel.

3. Built-in Clamp Diodes: These diodes provide protection against voltage spikes, especially when driving inductive loads.

4. Wide Compatibility: The ULN2803ADW-P is compatible with various types of logic devices and microcontrollers.

Application Scenarios for the ULN2803ADW-P:

- Controlling Stepper Motors: In applications like 3D printers or CNC machines.

- Driving LED Arrays: For large LED displays or signage.

- Relay Control Systems: In automation and control applications.

Specific Application Scenario: Driving a Stepper Motor in a CNC Machine

In a CNC machine, the ULN2803ADW-P can be used to drive a stepper motor, which is essential for precise movements and operations.

Detailed Circuit Connection for the ULN2803ADW-P:

1. Input from Microcontroller:

- Connect the input pins (1-8) of the ULN2803ADW-P to the corresponding output pins of a microcontroller.

2. Output to Stepper Motor:

- Attach the output pins (10-17) of the ULN2803ADW-P to the coils of the stepper motor.

3. Power Supply:

- The common pin (9) of the ULN2803ADW-P should be connected to the positive side of the power supply, which must be capable of providing the required voltage and current for the stepper motor.

4. Ground Connection:

- Ensure that the ground of the ULN2803ADW-P is connected to the system ground.

Design Considerations with the ULN2803ADW-P:

1. Load Specifications: Check that the stepper motor's voltage and current requirements are within the operating limits of the ULN2803ADW-P.

2. Thermal Management: Depending on the load, the ULN2803AD

W-P may generate significant heat, thus requiring proper heat dissipation measures.

3. Power Supply Stability: The power supply should be stable and capable of handling the current demands of the motor without significant voltage drops.

4. Signal Integrity: Minimize noise and interference in the signals from the microcontroller to the ULN2803ADW-P to ensure accurate motor control.

5. Protection Mechanisms: Although the ULN2803ADW-P has internal clamp diodes, additional protection for overvoltage and reverse polarity can be beneficial, especially in CNC applications where precision is critical.

6. PCB Layout and Wiring: Careful PCB design and wiring are essential to minimize inductive losses and ensure that the connections to the stepper motor are secure and reliable.

By integrating the ULN2803ADW-P in a CNC machine for driving a stepper motor, the system can achieve precise control and high reliability in its operations, provided these design guidelines are carefully followed.
