Name: TXS0102QDCURQ1
Brand: Texas Instruments
SKU: TXS0102QDCURQ1
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TXS0102QDCURQ1

Part No.:: TXS0102QDCURQ1

Manufacturer:: Texas Instruments

Package:: 8-VFSOP (0.091, 2.30mm Width)

Datasheet:: TXS0102QDCURQ1.pdf

Description:: IC TRNSLTR BIDIRECTIONAL US8

In Stock:: 2534

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TXS0102QDCURQ1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
2
Voltage-VCCA:
1.65 V ~ 3.6 V
Voltage-VCCB:
2.3 V ~ 5.5 V
InputSignal:
-
OutputSignal:
-
OutputType:
Open Drain, Push-Pull
DataRate:
24Mbps
OperatingTemperature:
-40°C ~ 125°C (TA)
Features:
Auto-Direction Sensing
MountingType:
Surface Mount

TXS0102QDCURQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TXS0102QDCURQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TXS0102QDCURQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TXS0102QDCURQ1 information

Views：

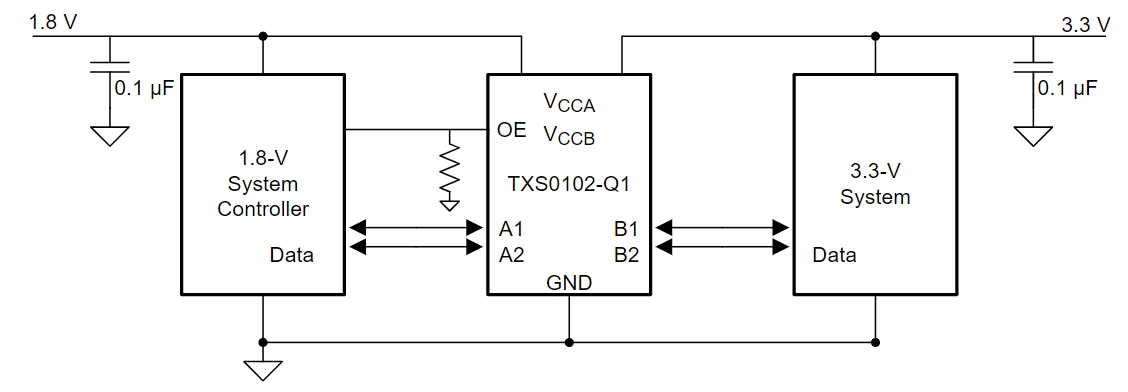

TXS0102QDCURQ1 Typical application Circuitry

TXS0102QDCURQ1

The TXS0102QDCURQ1 is a 2-bit bidirectional voltage-level translator designed for automotive applications, specifically for open-drain and push-pull configurations. This TXS0102QDCURQ1 chip is part of the TXS technology family and is well-suited for interfacing digital logic circuits operating at different voltage levels.

Key Features and Parameters:

- Voltage Compatibility: It operates with a dual supply, allowing the A ports to support operating voltages from 1.65 V to 3.6 V, and the B ports from 2.3 V to 5.5 V.

- Data Rates: Capable of handling data rates up to 24 Mbps for push-pull applications and 2 Mbps for open-drain applications.

- Output Enable (OE) Feature: Includes an OE feature that places all outputs in a high-impedance state when OE is low.

- No Direction-Control Signal Needed: Automatically manages the direction of data flow, making it easier to design interfaces.

- Electrostatic Discharge (ESD) Protection: Offers robust ESD protection on both A and B ports.

- Operating Temperature Range: Suitable for automotive applications with an operating temperature range of -40°C to +125°C.

Use Cases:

The TXS0102QDCURQ1 chip is used in I2C, MDIO, and SMBus interfaces, among other cases. It's particularly useful in automotive environments where different logic levels need to be interfaced, such as between microcontrollers and sensors or other peripherals that operate at different voltage levels.

Illustrative Circuit Connection:

For an I2C (Inter-Integrated Circuit) protocol application:

1. Power Supply Connections:

- V_CCA: Connect to the lower voltage power supply (e.g., 3.3V).

- V_CCB: Connect to the higher voltage power supply (e.g., 5V).

2. I/O Connections:

- A1, A2 Ports: Connect to the TXS0102QDCURQ1 I2C lines (SDA, SCL) of the lower voltage device.

- B1, B2 Ports: Connect to the I2C lines of the higher voltage device.

3. Output Enable (OE):

- To activate the device, connect the OE pin to a logic high level.

- To guarantee the high-impedance state during power up or power down, you can optionally attach a pulldown resistor to GND.

Design Considerations:

- Voltage Levels: Ensure that the voltage levels of connected devices are compatible with the chip's supported range.

- Data Rate Compatibility: Confirm that the communication protocol's data rate is within the chip's capabilities.

- Power-Up Sequencing: There is no requirement for power-supply sequencing, meaning either V_CCA or V_CCB can be ramped first.

- Temperature and Environmental Conditions: Design the system considering the operating temperature range and ESD requirements.

The TXS0102QDCURQ1 offers a convenient and reliable solution for voltage level translation in automotive and other mixed-voltage systems, simplifying the design and integration of systems with different logic levels.
