Texas Instruments TXB0106PWR

Part No.:: TXB0106PWR

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: TXB0106PWR.pdf

Description:: IC TRNSLTR BIDIRECTIONAL 16TSSOP

In Stock:: 139

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TXB0106PWR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
6
Voltage-VCCA:
1.2 V ~ 3.6 V
Voltage-VCCB:
1.65 V ~ 5.5 V
InputSignal:
-
OutputSignal:
-
OutputType:
Tri-State, Non-Inverted
DataRate:
100Mbps
OperatingTemperature:
-40°C ~ 85°C (TA)
Features:
Auto-Direction Sensing
MountingType:
Surface Mount

TXB0106PWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TXB0106PWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TXB0106PWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TXB0106PWR information

Views：

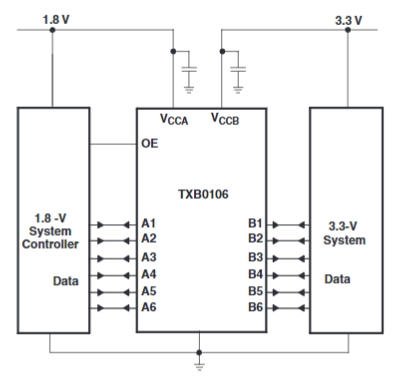

TXB0106PWR Typical application Circuitry

TXB0106PWR

The TXB0106PWR is a 6-bit bidirectional voltage-level translator manufactured by Texas Instruments. This device is designed to enable communication between systems operating at different voltage levels by translating the signals between them.

Here are some key features and details of the TXB0106PWR:

1. 6-Bit Bidirectional Translation: The TXB0106PWR provides six independent channels for voltage translation, which can operate bidirectionally to accommodate a variety of interfacing needs.

2. Dual-Supply Operation: The device uses two separate supply voltages, $V_{CCA}$ and $V_{CCB}$, to establish the voltage levels on the A-side (A1 to A6) and B-side (B1 to B6) respectively.

3. Auto-Direction Sensing: The TXB0106PWR automatically senses the direction of data flow on each I/O pin, eliminating the need for a directional control signal and simplifying design complexity.

4. Low On-State Resistance: The switches in the TXB0106PWR have low on-state resistance, ensuring minimal signal distortion during the voltage translation process.

5. ESD Protection: The device provides electrostatic discharge (ESD) protection on its I/O pins, enhancing its durability and robustness in various applications.

6. Package: The "PWR" suffix in the part number indicates that this IC is available in a TSSOP (Thin Shrink Small-Outline Package), which is a surface-mount package suitable for a variety of applications.

7. Wide Supply Voltage Range: The device supports a broad range of supply voltages on both the A-side and B-side, making it compatible with various logic families.

8. Applications: The TXB0106PWR can be used in applications requiring bidirectional data communication between devices with different operating voltages, such as microcontrollers, sensors, memory interfaces, and other digital peripherals.

9. Low Power Consumption: The device is designed for low power consumption, which is an important consideration for portable and battery-operated devices.

For detailed specifications, electrical characteristics, and application guidance, it is recommended to refer to the datasheet of the TXB0106PWR, which can be found on the Texas Instruments website or through authorized electronic component distributors.
