Name: TXB0104DR
Brand: Texas Instruments
SKU: TXB0104DR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TXB0104DR

Part No.:: TXB0104DR

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: TXB0104DR.pdf

Description:: IC TRNSLTR BIDIRECTIONAL 14SOIC

In Stock:: 3859

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TXB0104DR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
4
Voltage-VCCA:
1.2 V ~ 3.6 V
Voltage-VCCB:
1.65 V ~ 5.5 V
InputSignal:
-
OutputSignal:
-
OutputType:
Tri-State, Non-Inverted
DataRate:
100Mbps
OperatingTemperature:
-40°C ~ 85°C (TA)
Features:
Auto-Direction Sensing
MountingType:
Surface Mount

TXB0104DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TXB0104DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TXB0104DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TXB0104DR information

Views：

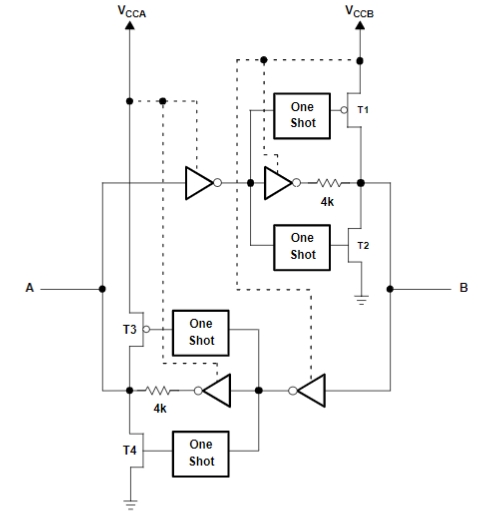

TXB0104DR Typical application Circuitry

TXB0104DR

The TXB0104DR is a 4-bit bidirectional voltage-level translator manufactured by Texas Instruments. It is designed to facilitate communication between components or systems operating at different voltage levels. The device is particularly useful in digital systems where there is a need to interface between low-voltage microprocessors or microcontrollers and higher-voltage peripheral devices.

Here are some key features and details of the TXB0104DR:

1. 4-Bit Bidirectional Translation: The TXB0104DR provides four channels for voltage translation, making it suitable for applications that require multiple signals to be translated simultaneously.

2. Dual-Supply Operation: The device operates with two separate supply voltages, $V_{CCA}$ and $V_{CCB}$, which define the voltage levels on the A-side (A1 to A4) and B-side (B1 to B4) respectively.

3. Auto-Direction Sensing: The TXB0104DR is capable of automatically sensing and adapting to the direction of the data flow on its I/O pins without requiring a directional control signal. This allows for easy interfacing without additional control logic.

4. Low On-State Resistance: The device features low on-state resistance, which minimizes signal distortion during translation.

5. ESD Protection: The TXB0104DR offers electrostatic discharge (ESD) protection on its I/O pins, enhancing robustness and reliability.

6. Package: The "DR" suffix in the part number indicates that the IC comes in an SOIC (Small Outline Integrated Circuit) package.

7. Wide Supply Voltage Range: The TXB0104DR supports a wide range of supply voltages on both the A-side and B-side, providing flexibility in interfacing with different logic levels.

8. Applications: This IC is suitable for various applications such as level shifting in multi-voltage systems, interfacing between different logic families, and bidirectional data transfer between systems with different operating voltages.

9. Low Power Consumption: The device is designed for low power consumption, making it suitable for battery-powered applications.

For detailed specifications, electrical characteristics, and application guidance, it is recommended to consult the datasheet of the TXB0104DR, which can be found on the Texas Instruments website or through electronic component distributors.
