Texas Instruments TXB0102DCURG4

Part No.:: TXB0102DCURG4

Manufacturer:: Texas Instruments

Package:: 8-VFSOP (0.091, 2.30mm Width)

Datasheet:: TXB0102DCURG4.pdf

Description:: IC TRNSLTR BIDIRECTIONAL US8

In Stock:: 2475

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TXB0102DCURG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
2
Voltage-VCCA:
1.2 V ~ 3.6 V
Voltage-VCCB:
1.65 V ~ 5.5 V
InputSignal:
-
OutputSignal:
-
OutputType:
Tri-State, Non-Inverted
DataRate:
100Mbps
OperatingTemperature:
-40°C ~ 85°C (TA)
Features:
Auto-Direction Sensing
MountingType:
Surface Mount

TXB0102DCURG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TXB0102DCURG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TXB0102DCURG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TXB0102DCURG4 information

Views：

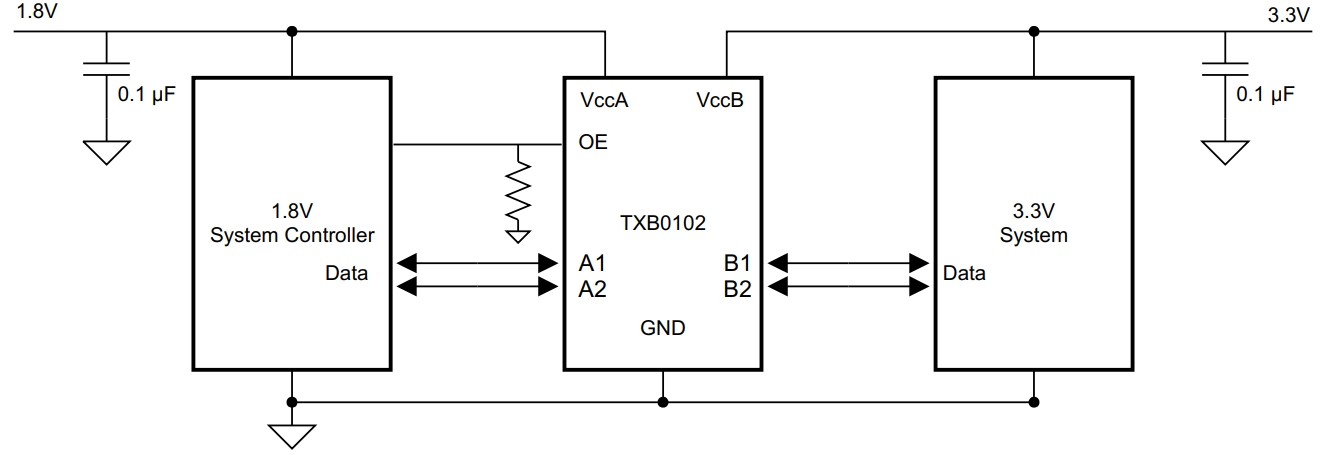

TXB0102DCURG4 Typical application Circuitry

TXB0102DCURG4

The TXB0102DCURG4 is an integrated circuit (IC) known for its functionality as a bi-directional voltage-level translator. Its purpose is to facilitate communication between devices that run at various voltage levels.

Capabilities of TXB0102DCURG4

This IC serves as a 2-bit non-inverting translator, facilitating the transfer of signals between two circuits with different operating voltages, thereby resolving voltage mismatch issues.

Application Scenarios

The TXB0102DCURG4 is widely used in mixed-voltage systems, such as interfacing a 3.3V microcontroller with 5V sensors, or in data communication between devices with different voltage levels.

Key Parameter Features

- Bi-Directional Translation: Supports signal translation in both directions.

- Low On-Capacitance: Ensures minimal signal distortion.

- Broad Voltage Spectrum Operating voltage ranges for compatibility are 1.65V to 5.5V on the B port and 1.2V to 3.6V on the A port.

- Fast Propagation Delay: Ideal for high-speed signal translation.

- Compact Package Size: Suitable for space-constrained applications.

- Automatic Direction Sensing: Eliminates the need for a direction control signal.

Circuit Connection Example: Microcontroller Interface with Higher Voltage Sensor

Here's a detailed implementation of the TXB0102DCURG4 for interfacing a 3.3V microcontroller with a 5V sensor.

1. Voltage Level Translation

- Microcontroller Side (3.3V): Connect the microcontroller's data output to pin 1 (A1) and input to pin 2 (A2).

- Sensor Side (5V): Attach the sensor's data output to pin 5 (B1) and input to pin 6 (B2).

2. Power Supply Connection

- Lower Voltage Side (VCCA): Connect pin 3 (VCCA) to the 3.3V power supply.

- Higher Voltage Side (VCCB): Link pin 7 (VCCB) to the 5V power supply.

3. Grounding

- System Ground: Connect pin 4 (GND) to the system ground.

4. Bypass Capacitors

- Stabilization: Place bypass capacitors close to both VCCA and VCCB pins to stabilize voltage levels and reduce noise.

5. Output Enable (OE) Control

- Enable Signal: Connect pin 8 (OE) to a control signal, typically from the microcontroller, to enable or disable the translator.

Design Considerations

When designing circuits with the TXB0102DCURG4, consider signal integrity, power supply stability, voltage mismatch between devices, and propagation delay, especially in applications where high-speed data communication is critical.

In summary, the TXB0102DCURG4 is an efficient bi-directional voltage-level translator, ideal for applications requiring communication between devices operating at different voltage levels, such as interfacing a low-voltage microcontroller with higher voltage sensors. Its fast propagation delay, bi-directional capability, and wide voltage range compatibility make it a valuable component for mixed-voltage systems. Proper attention to power management, signal integrity, and timing considerations is key for the successful integration of this IC into electronic designs.
