Texas Instruments TUSB2046BIVFR

Part No.:: TUSB2046BIVFR

Manufacturer:: Texas Instruments

Package:: 32-LQFP

Datasheet:: TUSB2046BIVFR.pdf

Description:: IC HUB CONTROLLER USB 32LQFP

In Stock:: 3438

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TUSB2046BIVFR Specifications

Package/Case:
32-LQFP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
Protocol:
USB
Function:
Hub Controller
Interface:
USB
Standards:
USB 2.0
Voltage-Supply:
3V ~ 3.6V
Current-Supply:
40mA
OperatingTemperature:
-40°C ~ 85°C

TUSB2046BIVFR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TUSB2046BIVFR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TUSB2046BIVFR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TUSB2046BIVFR information

Views：

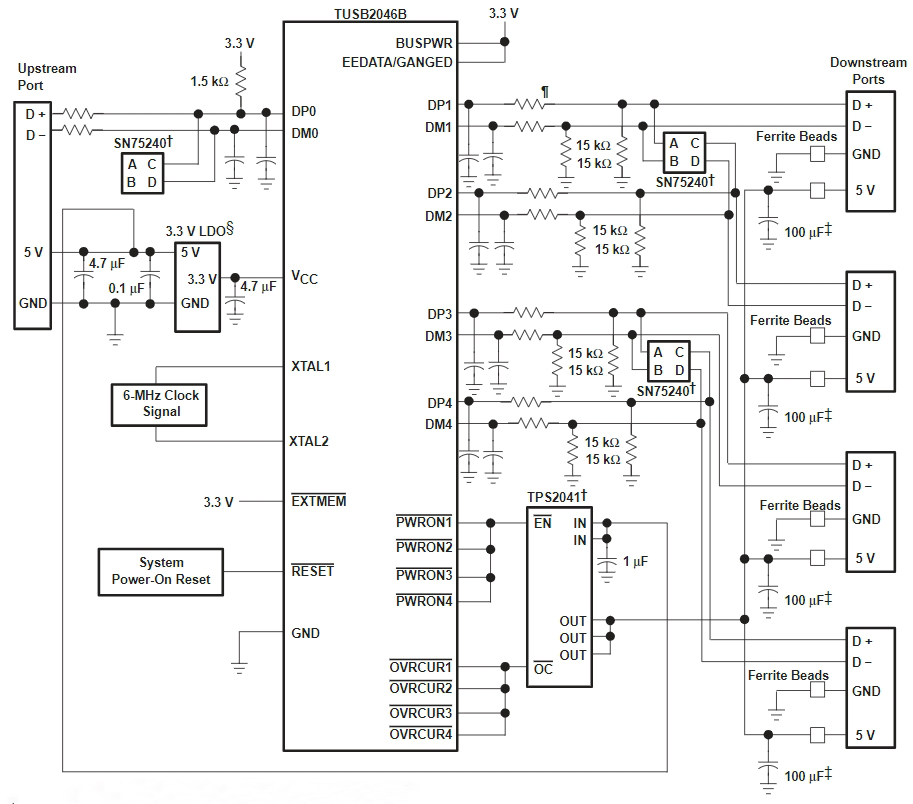

TUSB2046BIVFR Typical application Circuitry

TUSB2046BIVFR

The TUSB2046BIVFR is a part of the TUSB2046x family, a series of USB 2.0 hubs known for integrating multiple USB ports into a single device. It's specifically designed to extend the capabilities of single USB ports, allowing multiple devices to connect simultaneously. This component is widely utilized in computer peripherals, docking stations, and other consumer electronics that require multiple USB connections.

1. Power source Connections: In order to function, the TUSB2046BIVFR needs a steady power source. It should be connected to a 3.3V supply through the VCC pin and grounded properly. A clean and steady power source is essential to the USB hub's dependable operation.

2. USB Port Expansion: The core functionality of the TUSB2046BIVFR is to expand a single USB port into multiple outputs. It typically includes connections for up to four downstream USB ports. Each port needs proper routing and impedance matching to maintain signal integrity and comply with USB 2.0 standards.

3. Oscillator Circuit Connection: In order to supply an external oscillator with a clock signal, the TUSB2046BIVFR needs one. This oscillator is connected to the OSC1 and OSC2 pins, and it dictates the hub's operational timing and data transfer synchronization.

4. Overcurrent Protection: Each USB port in the TUSB2046BIVFR has an overcurrent protection feature. This requires connections to external components like resistors and capacitors to set the overcurrent threshold and response timing, ensuring protection against excessive current draw that could damage the hub or connected devices.

5. Configuration Pin Settings: The TUSB2046BIVFR includes several pins that determine the hub's configuration, such as the GANG pin for ganged power switching and the SMSCS pin for individual port power control. These pins need to be connected according to the desired hub configuration, either to ground or VCC, based on the application's requirements.

By understanding and properly establishing these connection points, developers can effectively integrate the TUSB2046BIVFR into their designs, leveraging its capabilities to expand USB connectivity in various electronic devices.
