Texas Instruments TS5A3160DBVR

Part No.:: TS5A3160DBVR

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: TS5A3160DBVR.pdf

Description:: IC SWITCH SPDT SOT23-6

In Stock:: 1850

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A3160DBVR Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
900mOhm
Channel-to-ChannelMatching(ΔRon):
50mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
6ns, 13ns
-3dbBandwidth:
100MHz
ChargeInjection:
36.5pC
ChannelCapacitance(CS(off)CD(off)):
18pF
Current-Leakage(IS(off))(Max):
20nA
Crosstalk:
-64dB @ 10MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A3160DBVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A3160DBVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A3160DBVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A3160DBVR information

Views：

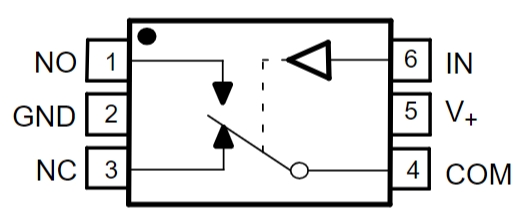

TS5A3160DBVR Typical application Circuitry

TS5A3160DBVR

Texas Instruments created the single-pole double-throw (SPDT) analog switch chip, TS5A3160DBVR. This chip is characterized by its low ON-state resistance, typically around 1 Ω, and operates in a voltage range from 1.65 V to 5.5 V. It is known for its excellent channel-to-channel ON-state resistance matching and low total harmonic distortion (THD), which makes it ideal for portable audio applications.

Application Scenarios of TS5A3160DBVR:

The TS5A3160DBVR is suitable for a variety of applications, including mobile phones, consumer and computing devices, and portable instrumentation. Its low power consumption and excellent THD performance make it particularly well-suited for portable audio devices.

Circuit Connection for an Application Scenario:

For a portable audio application, the TS5A3160DBVR can be integrated as follows:

1. Power Supply Connection: The V+ pin should be connected to a power supply within the 1.65 V to 5.5 V range.

2. Ground Connection: It is necessary to correctly ground the GND pin.

3. Input Signal: Connect the input audio signal to the COM (common) pin.

4. Output Signal Routing: The NO (normally open) and NC (normally closed) pins serve as output terminals. Depending on the control input, the audio signal from the COM pin will be routed to either the NO or NC pin.

5. Control Input: The IN pin serves as the control input, determining the routing of the signal between the NO and NC pins. This can be controlled by a microcontroller or a manual switch.

Design Considerations:

When designing circuits with the TS5A3160DBVR, consider the power supply stability, signal routing logic, and interfacing with the control mechanism. It's also crucial to adhere to the manufacturer's guidelines regarding pin configurations, operational limits, and thermal considerations to prevent damage to the chip and connected components.
