Name: TS5A3159DCKRE4
Brand: Texas Instruments
SKU: TS5A3159DCKRE4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TS5A3159DCKRE4

Part No.:: TS5A3159DCKRE4

Manufacturer:: Texas Instruments

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: TS5A3159DCKRE4.pdf

Description:: IC SWITCH SPDT SC70-6

In Stock:: 2253

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A3159DCKRE4 Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
1.1Ohm
Channel-to-ChannelMatching(ΔRon):
100mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
35ns, 20ns
-3dbBandwidth:
100MHz
ChargeInjection:
36pC
ChannelCapacitance(CS(off)CD(off)):
23pF
Current-Leakage(IS(off))(Max):
2nA
Crosstalk:
-65dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A3159DCKRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A3159DCKRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A3159DCKRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A3159DCKRE4 information

Views：

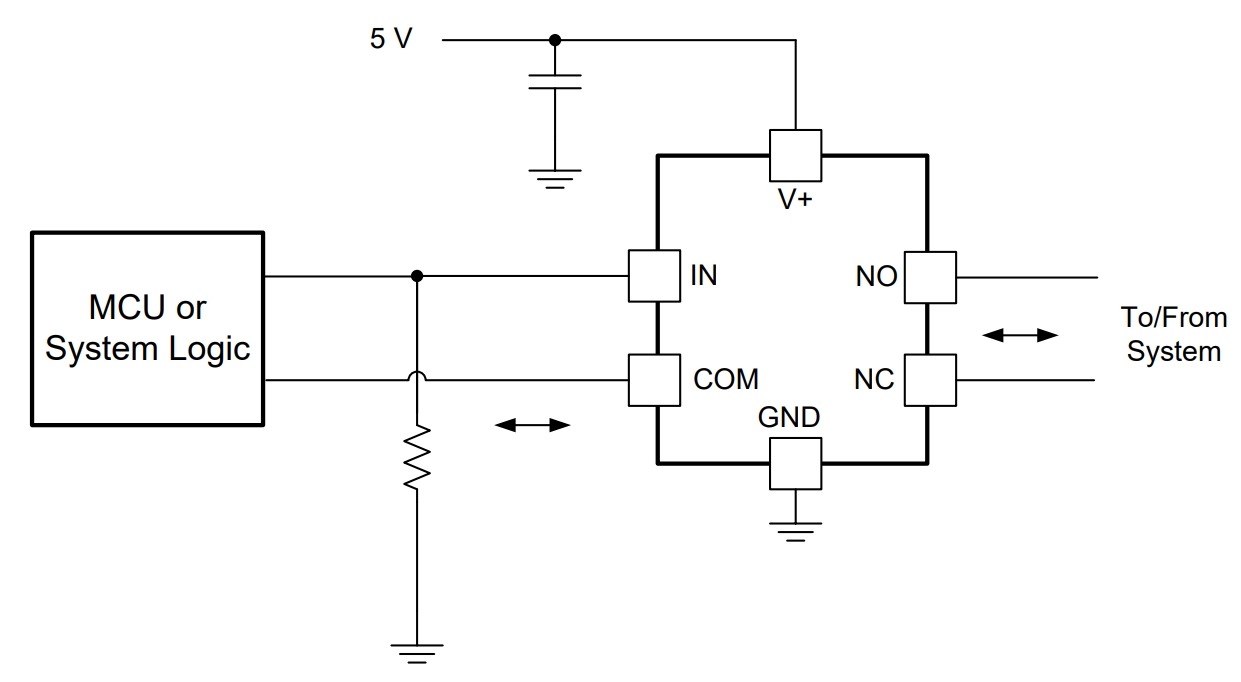

TS5A3159DCKRE4 Typical application Circuitry

TS5A3159DCKRE4

The TS5A3159DCKRE4 is an integrated circuit (IC) known for its functionality as a single-pole, double-throw (SPDT) analog switch. This IC is adept at efficiently routing and switching analog signals in various electronic applications.

Functionality of TS5A3159DCKRE4

This IC operates as an analog switch, enabling the switching and routing of analog signals between two different paths, making it highly effective in systems that require flexible signal management.

Application Scenarios

The TS5A3159DCKRE4 is frequently utilized in audio equipment, data acquisition systems, and communication devices for multiplexing signals, where precise and adaptable signal routing is necessary.

Key Parameter Features

- Low On-Resistance: Minimizes signal loss during switching.

- Wide Voltage Range Compatibility: Suitable for various signal levels.

- Fast Switching Speeds: Ideal for applications requiring quick signal transitions.

- Bidirectional Signal Handling: Facilitates two-way signal routing.

- Compact Package Size: Suitable for space-constrained designs.

- Energy-Efficient Design: Beneficial for battery-powered devices.

Circuit Connection Example: Audio Signal Routing

Here's a detailed implementation of TS5A3159DCKRE4 in an audio signal routing application.

1. Input Signal Setup

- Source Connection: Attach audio signal sources to pins 5 (NO) and 3 (NC).

2. Output to Audio Device

- Audio Output Configuration: Link pin 1 (COM) to an audio output device, such as a mixer or amplifier.

3. Control Mechanism

- Switch Operation: Use pin 2 (IN) for controlling the switch, connecting it to a control system or manual switch for selecting the audio source.

4. Power Supply Connection

- Voltage Application: Connect V+ (pin 6) to a suitable power source, compatible with the device's voltage requirements.

5. Grounding

- Circuit Stability: Secure V- (pin 4) to the system ground.

6. Noise Reduction

- Decoupling Capacitors: Place capacitors near the power supply pins to stabilize voltage and reduce electrical noise.

Design Considerations

When designing with the TS5A3159DCKRE4, it's essential to consider the nature of the audio signals, power supply stability, and the circuit layout to minimize crosstalk and maintain signal integrity, especially in high-quality audio systems.

In summary, the TS5A3159DCKRE4 is a versatile analog switch IC, ideal for applications such as audio signal routing. Its low on-resistance, bidirectional functionality, and fast switching capabilities make it a valuable component for managing complex signal paths. Proper attention to signal handling, power supply quality, and noise management is crucial for the successful integration of this IC into electronic designs.
