What is the Additional Feature ?

Name: TS5A3159DBVRG4
Brand: Texas Instruments
SKU: TS5A3159DBVRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TS5A3159DBVRG4

Part No.:: TS5A3159DBVRG4

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: TS5A3159DBVRG4.pdf

Description:: IC SWITCH SPDT SOT23-6

In Stock:: 2684

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A3159DBVRG4 Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
1.1Ohm
Channel-to-ChannelMatching(ΔRon):
100mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
35ns, 20ns
-3dbBandwidth:
100MHz
ChargeInjection:
36pC
ChannelCapacitance(CS(off)CD(off)):
23pF
Current-Leakage(IS(off))(Max):
2nA
Crosstalk:
-65dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A3159DBVRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A3159DBVRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A3159DBVRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A3159DBVRG4 information

Views：

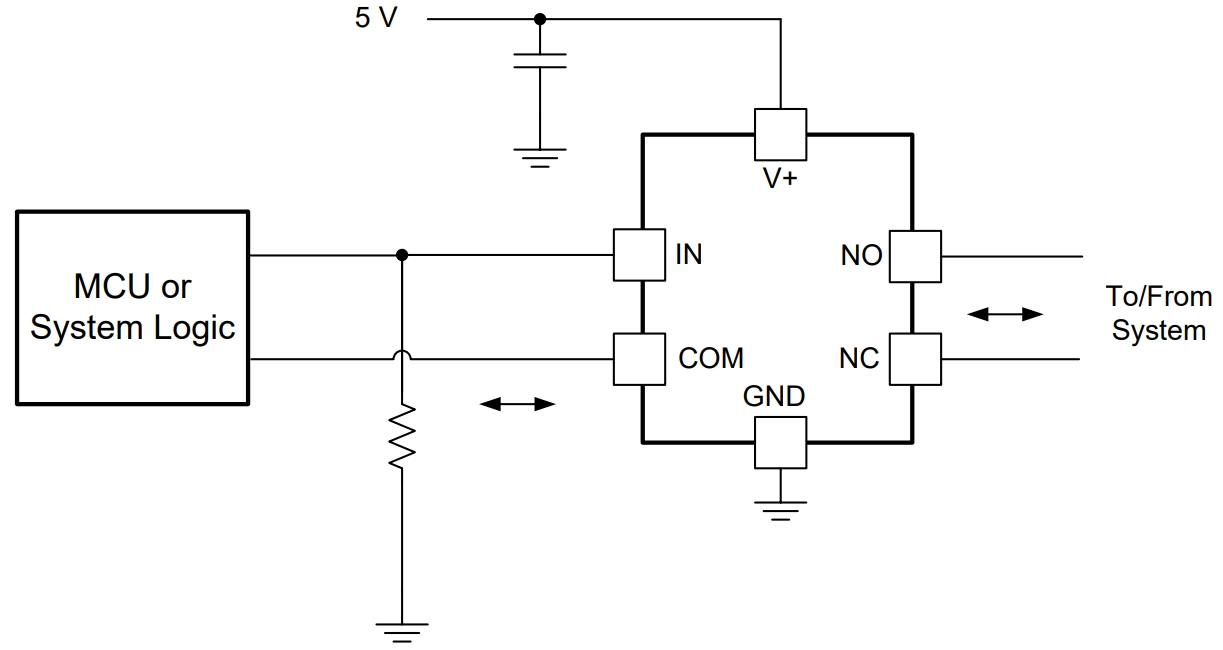

TS5A3159DBVRG4 Typical application Circuitry

TS5A3159DBVRG4

The TS5A3159DBVRG4 is an integrated circuit (IC) renowned for its function as a single-pole, double-throw (SPDT) analog switch. This IC is designed to efficiently manage the routing and switching of analog signals in various electronic systems.

Functionality of TS5A3159DBVRG4

This IC serves as an analog switch, adept at selecting or routing analog signals between two sources or destinations, making it essential in systems that require flexible signal management.

Application Scenarios

The TS5A3159DBVRG4 is commonly used in audio systems, signal routing in communication devices, and data acquisition setups where precise and adaptable signal routing is necessary.

Key Parameter Features

- Low On-Resistance: Ensures minimal signal loss during transmission.

- Wide Voltage Range: Compatible with different signal levels.

- Fast Switching Speed: Ideal for applications needing quick signal changes.

- Bidirectional Signal Handling: Allows signals to be routed in both directions.

- Compact Design: Suitable for space-constrained applications.

- Energy Efficiency: Favorable for battery-powered devices.

Circuit Connection Example: Audio Signal Switching

Here's a detailed guide to implementing TS5A3159DBVRG4 in an audio signal switching application.

1. Input Signal Configuration

- Source Connection: Attach audio signal sources to pins 5 (NO) and 3 (NC).

2. Output to Audio Equipment

- Audio Output Linkage: Connect pin 1 (COM) to an audio output device, such as a speaker or amplifier.

3. Control Implementation

- Switch Activation: Utilize pin 2 (IN) for controlling the switch state, connecting it to a control system or manual switch for audio source selection.

4. Power Supply Integration

- Voltage Application: Attach V+ (pin 6) to a suitable power source, ensuring it matches the IC's voltage specifications.

5. Grounding

- Circuit Stability: Link V- (pin 4) to the system ground.

6. Noise Management

- Decoupling Capacitors: Implement capacitors near the power supply pins to stabilize voltage and minimize electrical noise.

Design Considerations

When designing with the TS5A3159DBVRG4, it's essential to consider the nature of the audio signals, ensure power supply stability, and focus on the layout to minimize crosstalk and maintain signal integrity, especially in high-quality audio systems.

In summary, the TS5A3159DBVRG4 is an efficient analog switch IC, suitable for applications such as audio signal switching. Its low on-resistance, bidirectional signal capability, and fast switching performance make it a valuable component for managing complex signal paths. Careful attention to signal characteristics, power supply quality, and noise reduction is key for the successful integration of this IC into electronic circuits.
