Texas Instruments TS5A3159DBVR

Part No.:: TS5A3159DBVR

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: TS5A3159DBVR.pdf

Description:: IC SWITCH SPDT SOT23-6

In Stock:: 3590

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A3159DBVR Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
1.1Ohm
Channel-to-ChannelMatching(ΔRon):
100mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
35ns, 20ns
-3dbBandwidth:
100MHz
ChargeInjection:
36pC
ChannelCapacitance(CS(off)CD(off)):
23pF
Current-Leakage(IS(off))(Max):
2nA
Crosstalk:
-65dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A3159DBVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A3159DBVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A3159DBVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A3159DBVR information

Views：

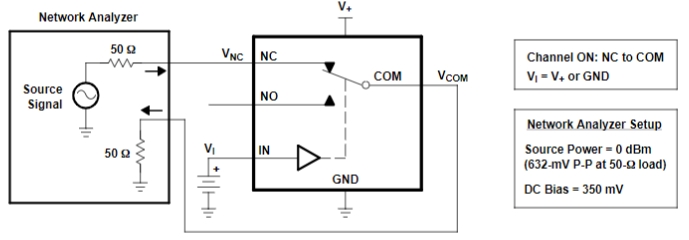

TS5A3159DBVR Typical application Circuitry

TS5A3159DBVR

The TS5A3159DBVR is an integrated circuit designed by Texas Instruments, and it functions as a single-pole double-throw (SPDT) analog switch. This device is used to efficiently route analog signals via its multiplexer/demultiplexer channel. Here's a description of the TS5A3159DBVR and its key features:

1. SPDT Analog Switch: The TS5A3159DBVR consists of a single SPDT switch, allowing it to connect one input to one of two outputs or vice versa. It essentially acts as a 2:1 or 1:2 multiplexer/demultiplexer.

2. Wide Operating Voltage: The device can operate over a supply voltage range of 1.65 V to 5.5 V. This makes it compatible with both low-voltage and standard voltage applications.

3. Low On-Resistance: The TS5A3159DBVR is designed to have low on-resistance, which minimizes signal distortion and ensures high signal integrity during switching.

4. Bidirectional Switching: This device supports bidirectional signal flow, making it suitable for both multiplexing and demultiplexing applications.

5. Break-Before-Make: The switch is designed to disconnect from the current channel before connecting to the next channel, preventing short-circuits between channels during switching.

6. Low Power Consumption: Optimized for low power consumption, the TS5A3159DBVR is suitable for battery-powered and portable applications.

7. Package: The "DBVR" in the part number indicates that the IC is available in a SOT-23 package, which is a small, surface-mountable package suitable for space-constrained applications.

8. Control Inputs: The device uses a single-bit digital input to control the state of the switch, allowing for easy interfacing with digital logic.

9. Applications: The TS5A3159DBVR is ideal for various applications that require signal routing, such as audio signal switching, data acquisition systems, and communication systems.

For detailed specifications, electrical characteristics, application circuits, and other technical information, it is recommended to consult the datasheet of the TS5A3159DBVR, which can be found on the Texas Instruments website or through electronic component distributors.
