Name: TS5A3159ADCKR
Brand: Texas Instruments
SKU: TS5A3159ADCKR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TS5A3159ADCKR

Part No.:: TS5A3159ADCKR

Manufacturer:: Texas Instruments

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: TS5A3159ADCKR.pdf

Description:: IC SWITCH SPDT SC70-6

In Stock:: 3154

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A3159ADCKR Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
900mOhm
Channel-to-ChannelMatching(ΔRon):
50mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
30ns, 20ns
-3dbBandwidth:
100MHz
ChargeInjection:
-20pC
ChannelCapacitance(CS(off)CD(off)):
18pF
Current-Leakage(IS(off))(Max):
20nA
Crosstalk:
-64dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A3159ADCKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A3159ADCKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A3159ADCKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A3159ADCKR information

Views：

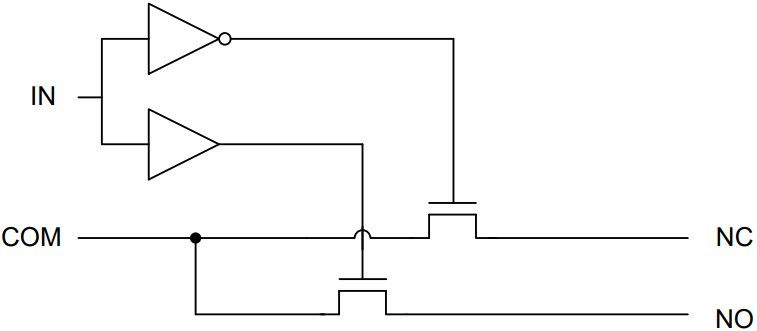

TS5A3159ADCKR Typical application Circuitry

TS5A3159ADCKR

The TS5A3159ADCKR is a distinct model within Texas Instruments' TS series, renowned for its precision as a single-pole double-throw (SPDT) analog switch. This component is highly favored for its low power consumption and wide operating voltage range, making it particularly adept for applications in data acquisition, telecommunications, and signal routing in both analog and digital domains.

1. Versatile Power Supply Compatibility: The TS5A3159ADCKR operates with a flexible power supply range, as detailed in its specifications. This range allows the device to be used in various circuit configurations. The power supply is connected to the V+ pin, while the ground pin (GND) should be tied to the system's ground. This configuration ensures that the device receives the necessary power for effective switching operations.

2. Signal Routing and Port Arrangement: The TS5A3159ADCKR features a single-pole double-throw configuration, comprising one common port (COM), two signal ports (NO and NC), and a digital control input (IN). The COM port can be connected to either the NO or NC port depending on the logic level applied to the IN pin. This arrangement provides flexibility in directing signals within a circuit.

3. Digital Control Input for Switch Operation: The IN pin serves as the control input for the switch. By applying a specific logic level to this pin, the internal switch mechanism toggles the connection of the COM port between the NO and NC ports. This functionality is essential for dynamically controlling signal paths in electronic systems.

4. Design Considerations for Signal Integrity: It is crucial to design the circuit with the TS5A3159ADCKR in a manner that preserves signal integrity. This includes careful placement of the device on the PCB to minimize trace lengths and avoid potential interference, which is particularly important in high-speed or high-precision signal applications.

5. Electrostatic Discharge (ESD) Protection: The TS5A3159ADCKR is designed with ESD protection on its pins. To avoid damage, however, typical ESD precautions still need to be followed during handling and installation.

6. Thermal Management for Enhanced Reliability: While the TS5A3159ADCKR is generally efficient with minimal heat generation, appropriate thermal management practices are recommended, especially in dense circuit layouts or high-temperature environments.

7. Optimal PCB Layout for Performance: The performance and reliability of the TS5A3159ADCKR are significantly influenced by the PCB layout. Implementing strategies such as isolating the switch from noisy circuitry, using proper decoupling techniques, and ensuring solid ground connections can markedly improve the switch's operation and signal fidelity.

In summary, the TS5A3159ADCKR is a flexible SPDT analog switch appropriate for a wide range of applications needing effective signal routing. Effective implementation involves careful attention to power supply connectivity, port configuration, digital control, signal integrity, ESD precautions, thermal management, and strategic PCB layout design. These considerations are key to harnessing the full potential of the TS5A3159ADCKR in achieving precise and reliable signal switching in electronic circuits.
