Texas Instruments TS5A3159ADBVT

Part No.:: TS5A3159ADBVT

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: TS5A3159ADBVT.pdf

Description:: IC SWITCH SPDT SOT23-6

In Stock:: 2533

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A3159ADBVT Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
900mOhm
Channel-to-ChannelMatching(ΔRon):
50mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
30ns, 20ns
-3dbBandwidth:
100MHz
ChargeInjection:
-20pC
ChannelCapacitance(CS(off)CD(off)):
18pF
Current-Leakage(IS(off))(Max):
20nA
Crosstalk:
-64dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A3159ADBVT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A3159ADBVT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A3159ADBVT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A3159ADBVT information

Views：

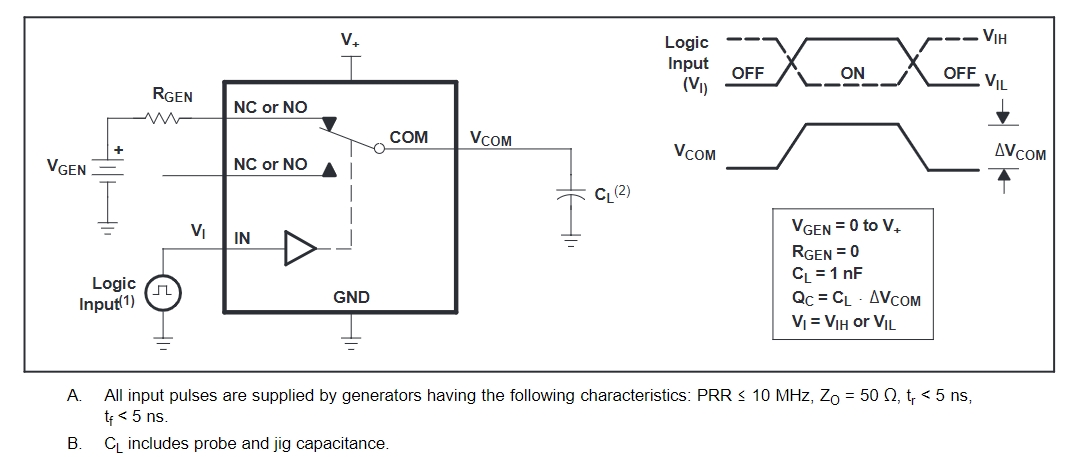

TS5A3159ADBVT Typical application Circuitry

TS5A3159ADBVT

The TS5A3159ADBVT is a single-pole double-throw (SPDT) analog switch, a type of integrated circuit produced by Texas Instruments. This chip is typically used for routing analog signals in various electronic devices. It's particularly suited for applications where low distortion and low power are crucial, such as in audio equipment, communication devices, and data acquisition systems.

Application Scenario:

Let's focus on the use of the TS5A3159ADBVT in a battery-powered portable audio player, where it can be used to switch between different audio sources or outputs.

Circuit Connection Details:

1. Voltage Supply: The V+ pin of TS5A3159ADBVT should be connected to a power source within the chip's recommended voltage range.

2. Signal Routing : Attach the audio source to the NC (Normally Closed) and NO (Normally Open) pins. The COM (Common) pin may be used to link the output to the speaker or headphones.

3. Control Mechanism: The switch position is controlled by the IN (Input) pin. COM is connected to NO by applying a logic high voltage to IN, and COM is connected to NC by applying a logic low voltage.

4. Ground Connection: To guarantee correct functioning, connect the GND pin to the system's ground.5. Decoupling Capacitors: Use a capacitor near the V+ pin for noise reduction and to stabilize the TS5A3159ADBVT.

Design Considerations:

1. Power Consumption: In a battery-powered device, power efficiency is crucial. Ensure the TS5A3159ADBVT's power consumption aligns with the overall power budget.

2. Signal Integrity: Minimize the length of the connections to the NO, NC, and COM pins to preserve signal quality.

3. Control Voltage: The voltage applied to the IN pin must be compatible with the TS5A3159ADBVT's logic level requirements.

4. Thermal Management: Although not a significant concern in low-power applications, always consider the thermal impact, especially if the device is enclosed.

5. Switching Noise: In audio applications, mitigate potential clicking sounds during switching with careful design of the control signals.

Incorporating the TS5A3159ADBVT into a portable audio player allows for effective management of audio signals, vital for achieving high-quality sound in a power-efficient manner. Attention to detail in power management, signal routing, and control logic is key to leveraging the full potential of this analog switch.
