Texas Instruments TS5A3159ADBVRE4

Part No.:: TS5A3159ADBVRE4

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: TS5A3159ADBVRE4.pdf

Description:: IC SWITCH SPDT SOT23-6

In Stock:: 2950

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A3159ADBVRE4 Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
900mOhm
Channel-to-ChannelMatching(ΔRon):
50mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
30ns, 20ns
-3dbBandwidth:
100MHz
ChargeInjection:
-20pC
ChannelCapacitance(CS(off)CD(off)):
18pF
Current-Leakage(IS(off))(Max):
20nA
Crosstalk:
-64dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A3159ADBVRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A3159ADBVRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A3159ADBVRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A3159ADBVRE4 information

Views：

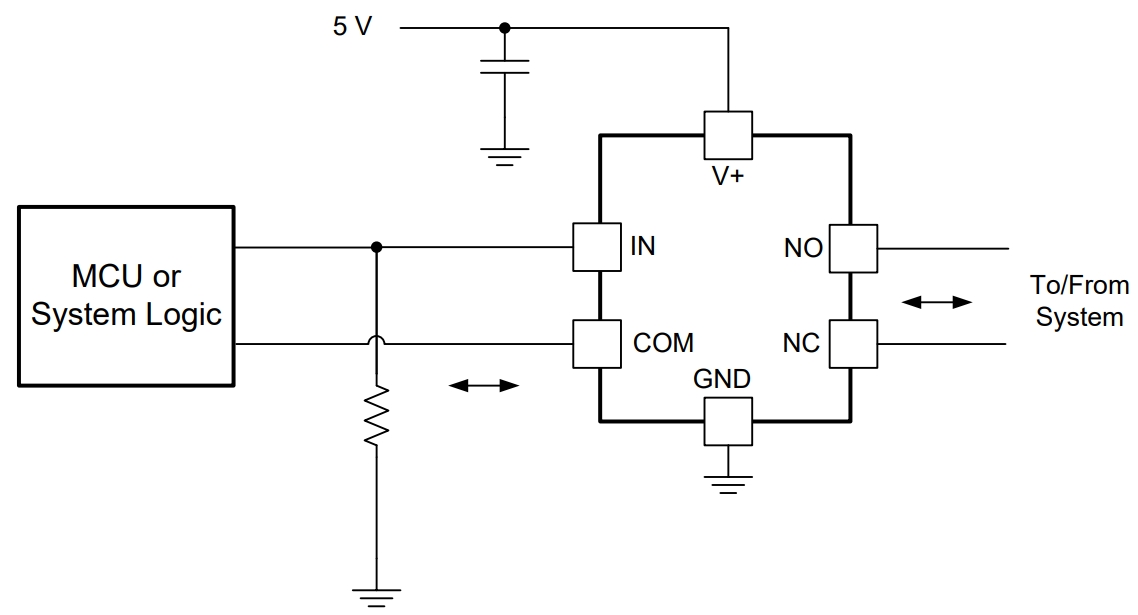

TS5A3159ADBVRE4 Typical application Circuitry

TS5A3159ADBVRE4

The TS5A3159ADBVRE4 is an integrated circuit specialized in signal switching, particularly for analog signals.

Capabilities of TS5A3159ADBVRE4

Analog Signal Switching: Excelling in toggling analog signals, it's essential in circuits requiring flexible routing of these signals.

Usage Scenarios

1. Audio Equipment: Frequently employed in audio devices for signal path management.

2. Communication Devices: Integral in telecommunications equipment for efficient signal handling.

3. Control Systems: Used in control circuits within industrial and consumer applications for signal routing.

Technical Specifications

1. Signal Management: Designed to handle analog signals with high efficiency.

2. Voltage Operation: Functions within a specified low-voltage range, ideal for energy-efficient devices.

3. Compact Size: Its small footprint makes it suitable for space-limited applications.

Application Example: Audio Equipment Circuit

1. Power Supply Connection: Link pin 5 (V+) to a 3V power source, suitable for the chip's low-power demands.

2. Circuit Grounding: Connect pin 4 (GND) to the ground for circuit stability.

3. Input and Output Arrangement: Attach the TS5A3159ADBVRE4 audio input to pin 1 (NO), the common audio line to pin 3 (COM), and the output to pin 2 (NC).

4. Control Signal Input: Utilize pin 6 (IN) to input control signals that decide the switch's state.

5. Decoupling Capacitor Inclusion: Place a decoupling capacitor near pin 5 (V+) to stabilize the power supply.

6. PCB Layout Design: Carefully design the PCB to minimize crosstalk and ensure signal integrity.

Design Factors

1. Preserving Signal Fidelity: Focus on maintaining high-quality audio signal transfer.

2. Power Supply Consistency: Ensure a stable and noise-free power supply for reliable operation.

3. Control Signal Clarity: Implement precise control signals for effective switching.

4. Interference Reduction: Design the circuit to minimize noise and signal interference.

To summarize, the TS5A3159ADBVRE4 is an essential chip in applications requiring accurate and efficient analog signal switching, such as in audio equipment, communication devices, and control systems. TS5A3159ADBVRE4 Its ability to manage analog signals effectively in a low-power, compact form factor makes it highly suitable for these uses. The detailed implementation in an audio equipment circuit showcases practical application, with a focus on critical design aspects ensuring optimal functionality and reliability in diverse settings.
