Texas Instruments TS5A3159ADBVR

Part No.:: TS5A3159ADBVR

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: TS5A3159ADBVR.pdf

Description:: IC SWITCH SPDT SOT23-6

In Stock:: 26851

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A3159ADBVR Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
900mOhm
Channel-to-ChannelMatching(ΔRon):
50mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
30ns, 20ns
-3dbBandwidth:
100MHz
ChargeInjection:
-20pC
ChannelCapacitance(CS(off)CD(off)):
18pF
Current-Leakage(IS(off))(Max):
20nA
Crosstalk:
-64dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A3159ADBVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A3159ADBVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A3159ADBVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A3159ADBVR information

Views：

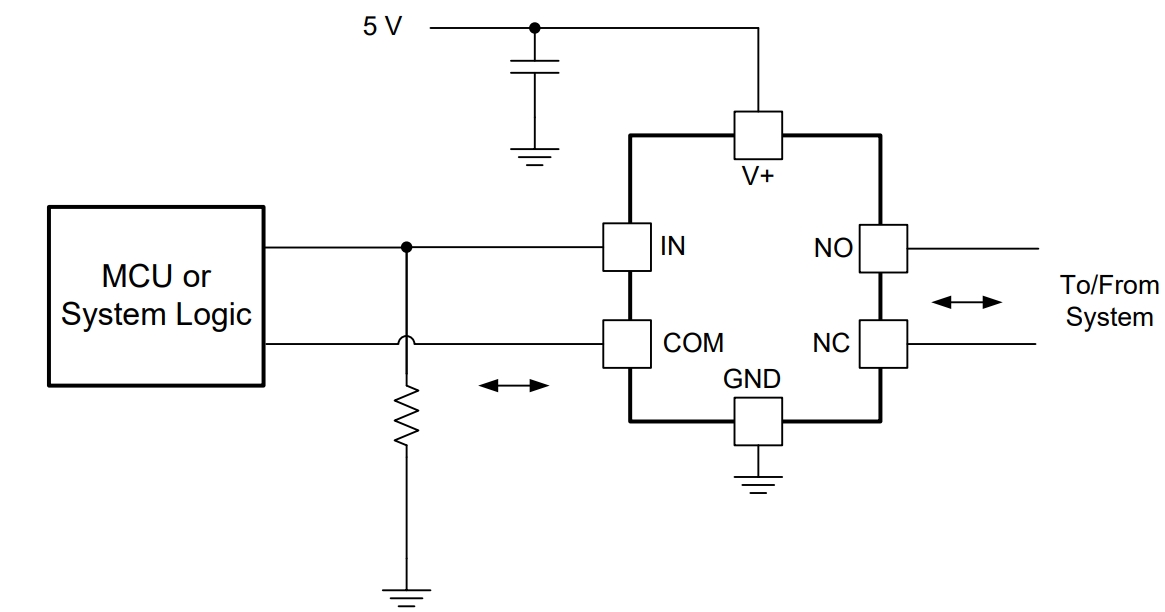

TS5A3159ADBVR Typical application Circuitry

TS5A3159ADBVR

The TS5A3159ADBVR is an integrated circuit chip known for its role in signal switching.

Primary Role of TS5A3159ADBVR

Analog Signal Switching: This TS5A3159ADBVR chip is adept at toggling between analog signals, essential for various electronic applications where signal routing flexibility is required.

Common Applications

1. Data Acquisition Systems: Used for routing signals in data logging and monitoring equipment.

2. Consumer Electronics: Integral in devices like smartphones and tablets for switching between audio or data signals.

3. Telecommunications: Employed in network devices for signal management.

Parameter Highlights

1. Signal Handling: Offers efficient management of analog signals.

2. Power Efficiency: Operates within a low-voltage range, making it suitable for battery-powered devices.

3. Compact Design: Its small footprint is ideal for space-constrained applications.

Circuit Connection Example: Smartphone Audio System

1. Connecting to Power: Affix pin 5 (V+) to a 3V power source, aligning with the chip's low-power operation.

2. Grounding the Chip: Attach pin 4 (GND) to the system's ground for circuit stability.

3. Managing Audio Inputs: Link the audio input source to pin 1 (NO) and the common audio pathway to pin 3 (COM).

4. Audio Output Setup: Connect the output (headphone/speaker) to pin 2 (NC).

5. Control Signal Path: Utilize pin 6 (IN) for inputting control signals, which determine the switching state.

6. Power Supply Stabilization: Incorporate a decoupling capacitor adjacent to pin 5 (V+) to ensure a stable power supply.

Design Considerations

1. Ensuring Signal Quality: Focus on maintaining the integrity of audio signals during switching.

2. Stability of Power Source: Keep the power supply consistent to prevent operational issues.

3. Accuracy of Control Signaling: Employ precise and noise-free control signals for reliable switching.

4. Minimizing Crosstalk: Strategically design the PCB layout to reduce interference between signal paths.

In conclusion, the TS5A3159ADBVR is a vital component in systems that necessitate efficient and precise analog signal switching, such as in data acquisition systems, consumer electronics, and telecommunications devices. Its ability to handle analog signals with low power consumption and in a compact form makes it especially useful in these contexts. The TS5A3159ADBVR outlined circuit example for a smartphone audio system illuminates the practical application, emphasizing key design factors to ensure the chip's optimal functionality and reliability in various applications.
