Name: TS5A23166DCUR
Brand: Texas Instruments
SKU: TS5A23166DCUR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments TS5A23166DCUR

Part No.:: TS5A23166DCUR

Manufacturer:: Texas Instruments

Package:: 8-VFSOP (0.091, 2.30mm Width)

Datasheet:: TS5A23166DCUR.pdf

Description:: IC SWITCH SPST DUAL 8VSSOP

In Stock:: 20300

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A23166DCUR Specifications

Package/Case:
8-VFSOP (0.091, 2.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPST - NO
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
2
On-StateResistance(Max):
900mOhm
Channel-to-ChannelMatching(ΔRon):
40mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
7.5ns, 11ns
-3dbBandwidth:
150MHz
ChargeInjection:
6pC
ChannelCapacitance(CS(off)CD(off)):
19pF, 18pF
Current-Leakage(IS(off))(Max):
20nA
Crosstalk:
-85dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A23166DCUR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A23166DCUR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A23166DCUR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A23166DCUR information

Views：

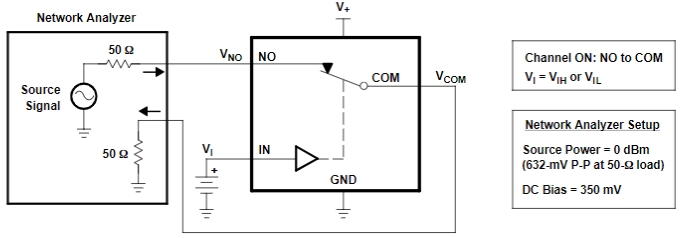

TS5A23166DCUR Typical application Circuitry

TS5A23166DCUR

The TS5A23166DCUR is an integrated circuit developed by Texas Instruments. It functions as a dual single-pole single-throw (SPST) analog switch, designed to route analog signals through its multiplexer/demultiplexer channels. Here is a description of the TS5A23166DCUR and its key features:

1. Dual SPST Analog Switch: The TS5A23166DCUR consists of two independent SPST switches. Each switch can connect or disconnect an input to or from an output.

2. Wide Operating Voltage: The device can operate over a supply voltage range of 1.65 V to 5.5 V, making it suitable for both low-voltage and standard voltage applications.

3. Low On-Resistance: The switch is designed to have low on-resistance, ensuring minimal signal distortion and maintaining signal integrity during the switching process.

4. Bidirectional Switching: The TS5A23166DCUR supports bidirectional signal flow, allowing it to be used for both multiplexing and demultiplexing applications.

5. Break-Before-Make: This feature ensures that the switch disconnects from the current channel before making a connection with the next channel, preventing shorting between channels during switching.

6. Low Power Consumption: The device is optimized for low power consumption, making it suitable for battery-powered and portable applications.

7. Package: The "DCUR" in the part number indicates that the IC is available in a VSSOP (Very Small Shrink Outline Package), which is compact and suitable for space-constrained applications.

8. Control Inputs: The device uses single-bit digital inputs to control the state of the switches, allowing for straightforward interfacing with digital logic.

9. Applications: The TS5A23166DCUR is suitable for use in various applications that require signal routing, such as audio signal switching, data acquisition systems, and communication systems.

For detailed specifications, electrical characteristics, application circuits, and other technical information, it is recommended to consult the datasheet of the TS5A23166DCUR, which can be found on the Texas Instruments website or through electronic component distributors.
