Texas Instruments TS5A23159DGSRG4

Part No.:: TS5A23159DGSRG4

Manufacturer:: Texas Instruments

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: TS5A23159DGSRG4.pdf

Description:: IC SWITCH SPDT DUAL 10VSSOP

In Stock:: 2500

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A23159DGSRG4 Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
2
On-StateResistance(Max):
900mOhm
Channel-to-ChannelMatching(ΔRon):
50mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
13ns, 8ns
-3dbBandwidth:
100MHz
ChargeInjection:
-7pC
ChannelCapacitance(CS(off)CD(off)):
18pF
Current-Leakage(IS(off))(Max):
20nA
Crosstalk:
-64dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A23159DGSRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A23159DGSRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A23159DGSRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A23159DGSRG4 information

Views：

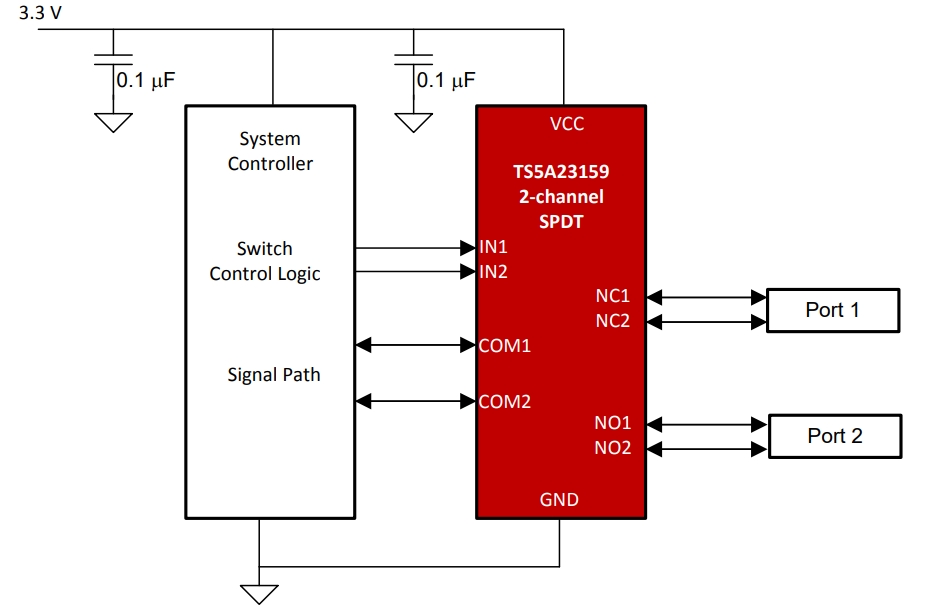

TS5A23159DGSRG4 Typical application Circuitry

TS5A23159DGSRG4

The TS5A23159DGSRG4 is an integrated circuit (IC) recognized for its role as an analog signal switch. It's designed for efficiently managing signal routing in various electronic applications.

Functionality of TS5A23159DGSRG4

This IC functions as a dual single-pole, double-throw (SPDT) analog switch. It's particularly adept at switching and routing analog signals between different paths or sources.

Application Scenarios

The TS5A23159DGSRG4 is commonly used in audio signal routing, data acquisition systems, and signal multiplexing in communication devices where precise and flexible signal management is required.

Key Parameter Features

- Low On-Resistance: Ensures minimal signal attenuation.

- Wide Voltage Range Compatibility: Suitable for various power levels.

- Bidirectional Signal Flow: Allows signal routing in both directions.

- Fast Switching Speed: Ideal for quick signal transitions.

- Compact Footprint: Optimal for space-constrained applications.

- Low Power Consumption: Efficient for battery-powered devices.

Circuit Connection Example: Audio Signal Routing

Here's how to implement the TS5A23159DGSRG4 in an audio signal routing application, detailing each connection step.

1. Signal Input Configuration

- Source Connection: Attach audio signal sources to pins 1 and 10 (NO) and pins 3 and 12 (NC) of the TS5A23159DGSRG4.

2. Output to Audio Device

- Device Linkage: Connect pins 2 and 11 (COM) to the inputs of an audio output device, such as a mixer or amplifier.

3. Control Mechanism

- Switch Operation: Utilize pins 5 and 6 (IN1 and IN2) to control the switch state, connecting them to a microcontroller or manual control interface for signal selection.

4. Power Supply Integration

- Voltage Application: Link V+ (pin 7) to an appropriate power source within the operational voltage range of the IC.

5. Ground Connection

- System Grounding: Secure V- (pin 8) to the system ground for circuit stability.

6. Noise Reduction Measures

- Decoupling Capacitors: Install capacitors near the power supply pins to stabilize the voltage and minimize electrical noise.

Design Considerations

When designing circuits with the TS5A23159DGSRG4, it's essential to consider signal integrity, power supply compatibility, and the layout to minimize crosstalk and signal degradation, especially in high-fidelity audio systems.

In conclusion, the TS5A23159DGSRG4 is an efficient analog switch IC, well-suited for applications like audio signal routing. Its low on-resistance, bidirectional signal handling, and quick switching make it an excellent choice for managing complex signal paths. Careful attention to the nuances of signal handling, power supply stability, and circuit layout is crucial for the effective use of this IC in electronic designs.
