Texas Instruments TS5A22362DGSRG4

Part No.:: TS5A22362DGSRG4

Manufacturer:: Texas Instruments

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: TS5A22362DGSRG4.pdf

Description:: IC SWITCH SPDT DUAL 10VSSOP

In Stock:: 3900

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A22362DGSRG4 Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
2
On-StateResistance(Max):
740mOhm
Channel-to-ChannelMatching(ΔRon):
40mOhm
Voltage-SupplySingle(V+):
2.3V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
80ns, 70ns
-3dbBandwidth:
18.3MHz
ChargeInjection:
10pC
ChannelCapacitance(CS(off)CD(off)):
70pF
Current-Leakage(IS(off))(Max):
50nA
Crosstalk:
-78dB @ 100kHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A22362DGSRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A22362DGSRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A22362DGSRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A22362DGSRG4 information

Views：

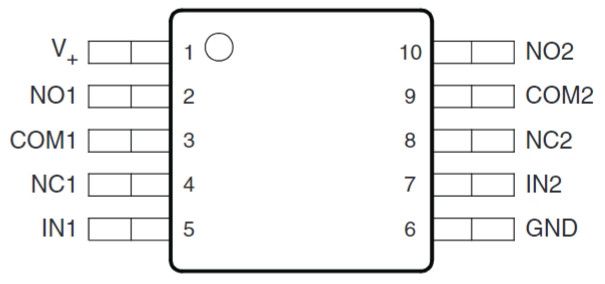

TS5A22362DGSRG4 Typical application Circuitry

TS5A22362DGSRG4

The TS5A22362DGSRG4 is a specialized integrated circuit designed for analog signal switching. This chip is a variant of the TS5A22362 series and is known for its dual single-pole double-throw (SPDT) configuration.

Application Scenarios of the TS5A22362DGSRG4

1. Mobile Device Audio Routing: In smartphones and tablets, the TS5A22362DGSRG4 is used for selecting between different audio sources.

2. Signal Multiplexing in Test Equipment: The chip can switch between different signal paths in electronic testing and measurement devices.

Parameter Features of the TS5A22362DGSRG4

- Voltage Range: It operates within a 2.3V to 5.5V range, accommodating a variety of power sources.

- Low On-State Resistance: To reduce signal loss, the on-state resistance is usually about 0.5 Ω.

- High-Speed Operation: Suitable for high-frequency applications due to its quick switching capabilities.

Circuit Connection Example: Mobile Device Audio Routing

1. Power Connections:

- VCC Pin: Connect the VCC pin of the TS5A22362DGSRG4 to a power source between 2.3V and 5.5V.

- Grounding: The GND pin should be properly grounded for stability.

2. Audio Signal Routing:

- Audio Input/Output: Connect IN1A and IN1B to different audio sources, with OUT1 serving as the output. Similarly, utilize IN2A and IN2B for additional audio inputs, and OUT2 as the corresponding output.

3. Control Logic:

- SEL1 and SEL2 Pins: By controlling the voltage levels on these pins, the TS5A22362DGSRG4 selects the appropriate audio paths.

Design Considerations

- Signal Integrity: Ensuring minimal signal degradation is crucial, particularly in audio applications.

- Power Supply Stability: Variations in the power supply have the potential to negatively impact the TS5A22362DGSRG4's functionality.

- Thermal Management: Despite the low power consumption, efficient heat dissipation is necessary in compact designs.

- Noise Reduction: Filtering techniques must be used in order to reduce interference.

By incorporating these considerations and utilizing its features, the TS5A22362DGSRG4 effectively serves its role in applications like mobile device audio routing. It's essential to adhere closely to the specifications and guidelines provided in the datasheet for optimal performance.
