Texas Instruments TS5A22362DGSR

Part No.:: TS5A22362DGSR

Manufacturer:: Texas Instruments

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: TS5A22362DGSR.pdf

Description:: IC SWITCH SPDT DUAL 10VSSOP

In Stock:: 3981

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TS5A22362DGSR Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
2
On-StateResistance(Max):
740mOhm
Channel-to-ChannelMatching(ΔRon):
40mOhm
Voltage-SupplySingle(V+):
2.3V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
80ns, 70ns
-3dbBandwidth:
18.3MHz
ChargeInjection:
10pC
ChannelCapacitance(CS(off)CD(off)):
70pF
Current-Leakage(IS(off))(Max):
50nA
Crosstalk:
-78dB @ 100kHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TS5A22362DGSR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TS5A22362DGSR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TS5A22362DGSR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TS5A22362DGSR information

Views：

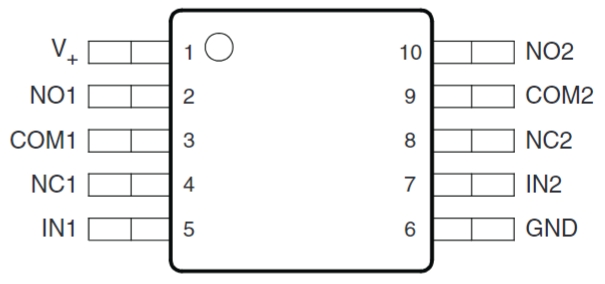

TS5A22362DGSR Typical application Circuitry

TS5A22362DGSR

The TS5A22362DGSR is a dual single-pole double-throw (SPDT) analog signal switch produced by Texas Instruments. This chip is commonly used for signal routing and multiplexing, especially suitable for applications requiring high performance and precise control.

Application Scenarios of TS5A22362DGSR

1. Audio Signal Switching: Used for audio switching in smartphones, tablets, laptops, and other portable devices.

2. Data Communication: Utilized in data line selection and switching, such as USB interfaces and other serial data communications.

3. Video Signal Routing: Employed for video signal selection and switching in digital cameras and surveillance equipment.

Parameter Features of TS5A22362DGSR

- Operating Voltage Range: 2.3V to 5.5V.

- Low Channel Resistance: Typical value is 0.5 Ω, ensuring high efficiency and low loss in signal transmission.

- High Bandwidth: Capable of handling high-frequency signals, suitable for audio and video applications.

- Compact Packaging: Miniature package design saves space, suitable for compact circuit board designs.

Application Example: Audio Signal Switching

Circuit Connection:

- Power Supply Connection: Connect the VCC pin to a power source of 2.3V to 5.5V, and the GND pin to ground.

- Signal Input/Output: Use IN1A and IN1B pins for audio input, and the OUT1 pin for audio output. Similarly, IN2A and IN2B are used for another audio input, with OUT2 as the corresponding output.

- Control Logic: Switch between different audio sources by controlling the high and low levels of the SEL1 and SEL2 pins. For example, when SEL1 is high, the path from IN1A to OUT1 is selected; when SEL1 is low, the path from IN1B to OUT1 is selected.

Considerations in Circuit Design

1. Power Management: Ensure stable power supply to avoid voltage fluctuations affecting the chip's performance.

2. Signal Integrity: Consider the routing of signal paths to reduce crosstalk and signal attenuation, especially in high-frequency applications.

3. Thermal Management: Although TS5A22362DGSR has low power consumption, heat dissipation still needs to be considered in compact circuit board designs.

4. Interference Resistance: Incorporate appropriate filtering and protection measures in the design to reduce external interference.

5. Isolation of Power and Signals: Ensure proper isolation between power and signal lines to avoid noise interference.

By following these steps, the efficiency and stability of the TS5A22362DGSR in audio signal switching applications can be ensured. When designing, it is also necessary to refer to its datasheet for a more accurate understanding of its electrical characteristics and application limitations.
