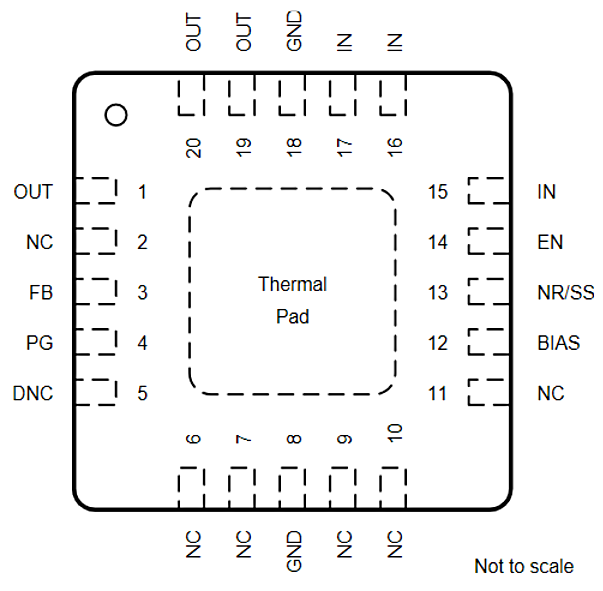

Texas Instruments TPS7A5201QRGRRQ1

Part No.:: TPS7A5201QRGRRQ1

Manufacturer:: Texas Instruments

Package:: 20-VFQFN Exposed Pad

Datasheet:: TPS7A5201QRGRRQ1.pdf

Description:: IC REG LINEAR POS ADJ 2A 20VQFN

In Stock:: 2573

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS7A5201QRGRRQ1 Specifications

Package/Case:
20-VFQFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q100
ProductStatus:
Active
OutputConfiguration:
Positive
OutputType:
Adjustable
NumberofRegulators:
1
Voltage-Input(Max):
6.5V
Voltage-Output(Min/Fixed):
0.8V
Voltage-Output(Max):
5.2V
VoltageDropout(Max):
0.3V @ 2A
Current-Output:
2A
Current-Quiescent(Iq):
-
Current-Supply(Max):
-
PSRR:
42dB ~ 25dB (10kHz ~ 500kHz)
ControlFeatures:
Enable
ProtectionFeatures:
Over Temperature, Reverse Polarity
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

TPS7A5201QRGRRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS7A5201QRGRRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS7A5201QRGRRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS7A5201QRGRRQ1 information

Views：

TPS7A5201QRGRRQ1 Typical application Circuitry

The TPS7A5201QRGRRQ1 is a prominent chip, embodying itself as a high-voltage, low-dropout (LDO) regulator. Known for its robustness and precise power regulation, it's no wonder the TPS7A5201QRGRRQ1 is highly favored in designs where voltage stability is crucial.

Application Scenarios for TPS7A5201QRGRRQ1:

1. RF and PLL Power Supplies: Where noise regulation and precision are vital.

2. Post-Regulation for Switching Supplies: To refine the output of SMPS systems.

3. Sensitive Analog Circuits: Where any voltage variation can result in performance degradation.

4. Battery-Powered Instruments: Given its high efficiency and precision.

Features of the TPS7A5201QRGRRQ1:

1. Extended Input Voltage Range: Supports a wide range of input voltages, making it versatile across applications.

2. Highly Accurate Output: Consistency and accuracy are keystones of this chip.

3. Thermal Shutdown and Overcurrent Protection: To ensure the device's safety in overloading conditions.

4. Adjustable Output Voltage: For customization across different design needs.

Circuit Connection for RF Power Supplies:

Should you wish to construct an RF power supply with the TPS7A5201QRGRRQ1, follow this methodical approach:

1. Voltage Introduction:

- VIN pin: Here's where the unregulated or pre-regulated input voltage should be connected. A smoothing capacitor can be connected in parallel to filter out high-frequency noise.

2. Establishing a Ground:

- GND pin: Connect this pin to the system's common ground to maintain a shared reference.

3. Drawing the Regulated Output:

- VOUT pin: Fetch the stabilized voltage from this pin and guide it to your RF module's power input.

4. Tailoring the Output Voltage:

- NR/SS pin: Connect a resistor-dividing network between the NR/SS pin, VOUT pin, and the ground. It lets you calibrate the TPS7A5201QRGRRQ1 to the precise voltage demanded by your RF system.

5. Capacitance for Stability:

- A capacitor must be connected between the VOUT pin and the ground to ensure system stability and further noise reduction.

Design Considerations:

1. Component Choice: Using capacitors with minimal Equivalent Series Resistance (ESR) is pivotal in capitalizing on the TPS7A5201QRGRRQ1's stellar noise performance.

2. Heat Dissipation: LDOs might generate heat, especially if they're working near their maximum ratings. Depending on your power requirements, consider integrating thermal vias or heatsinks.

3. Voltage Compatibility: All connected components should be rated to endure the working voltages, thus averting premature failures.

4. Circuit Layout: Keeping a neat and compact PCB layout is paramount. It's advisable to keep the regulator close to the powered device, with short traces, thereby minimizing potential interference.

To wrap up, the TPS7A5201QRGRRQ1 stands out as a beacon of reliability in high-voltage LDO regulation. Its precise regulation capabilities, combined with a well-thought-out design, can lead to enhanced system performance.
